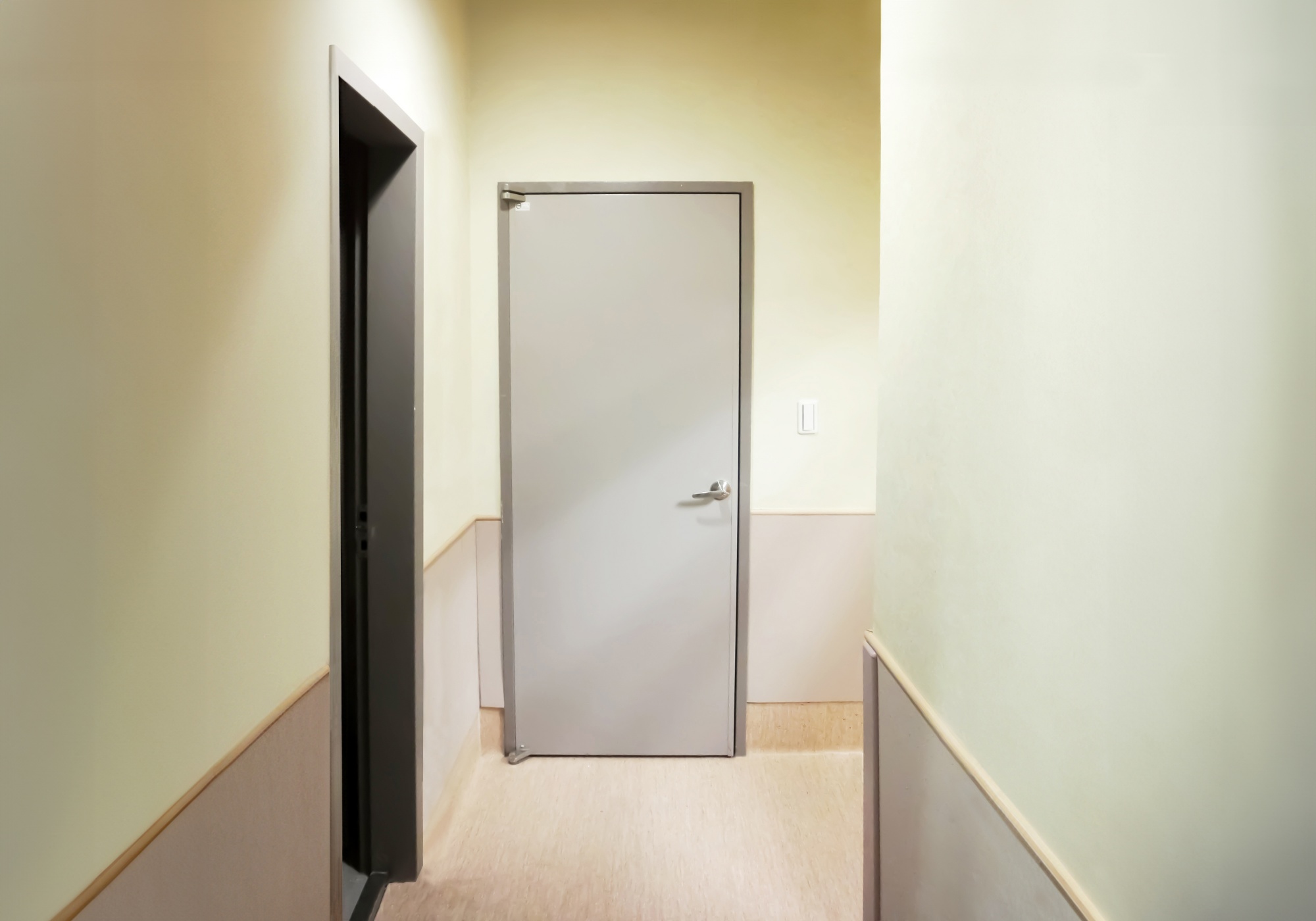

Steel Made F(60A) Fire Protection- Swing Door (90 Degree Opening)
%E9%98%B2%E7%81%AB-%20%E6%8E%A8%E6%8B%89%E9%96%80(90%E5%BA%A6%E9%96%8B%E5%95%93).jpg)
Product Features
● Single leaf swing 90 degree opening
● Fire protection glass can be chosen as option, it is visible through window too
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A
● Working with Automatic Door System, safe and multi-functioning
● Equipped with Emergency Power Supply so that even when the power is cut off, automatic door can still be operating. User can also set up Door Leaves Operation when power is off in advance, operation includes
A. Door Leaves stay opening
B. Door Leavesstay closed and locked
C. Door Leaves stay closed but can be manually opened
● Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode
5. Door leaves open unconditionally
SPECIFICATION
-
Steel Made F(60A) Fire Protection- Swing Door (90 Degree Opening)
Fire Protection Certification Number
Fire Protection Grade
F(60A)

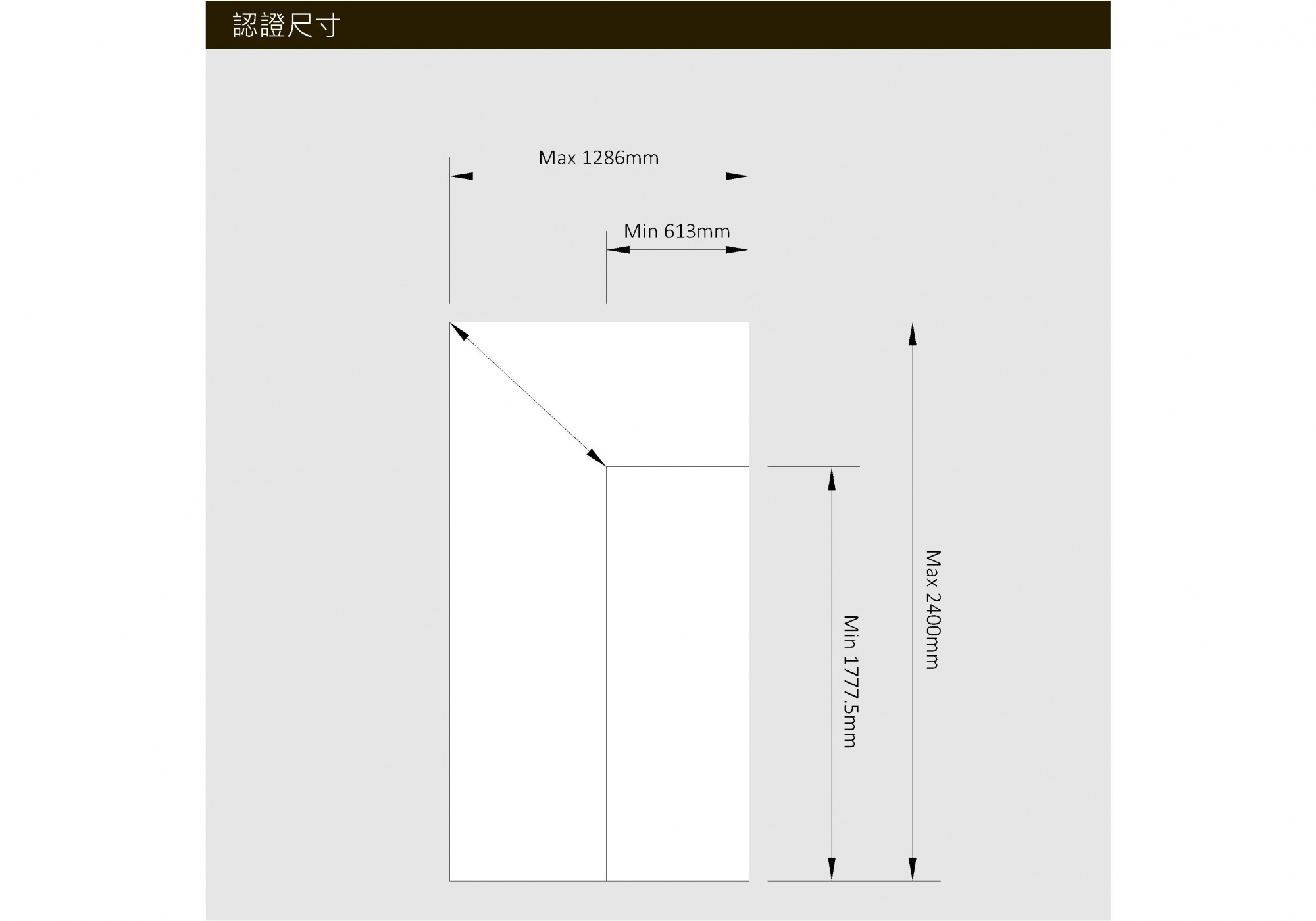

Size Approved
MAX W:1286*H:2400(mm)
MIN W:613*H:1777.5(mm)Applications
Hospital
Medical Centers
Techlogogical Factory
Kitchens in Restaurant
Escape Zone in Tall BuildingsMaterial
Stainless Steel
Galvanized SteelOption Type
Single leaf 90 degree swing, single leaf 180 degree double direction opening
Bi-parting 180 degree reverse opening
stoving varnish/ without stoving varnish, with window/ without window
Automatic/ Manual
with Surface Decoration Material/ without Surface Decoration Material
