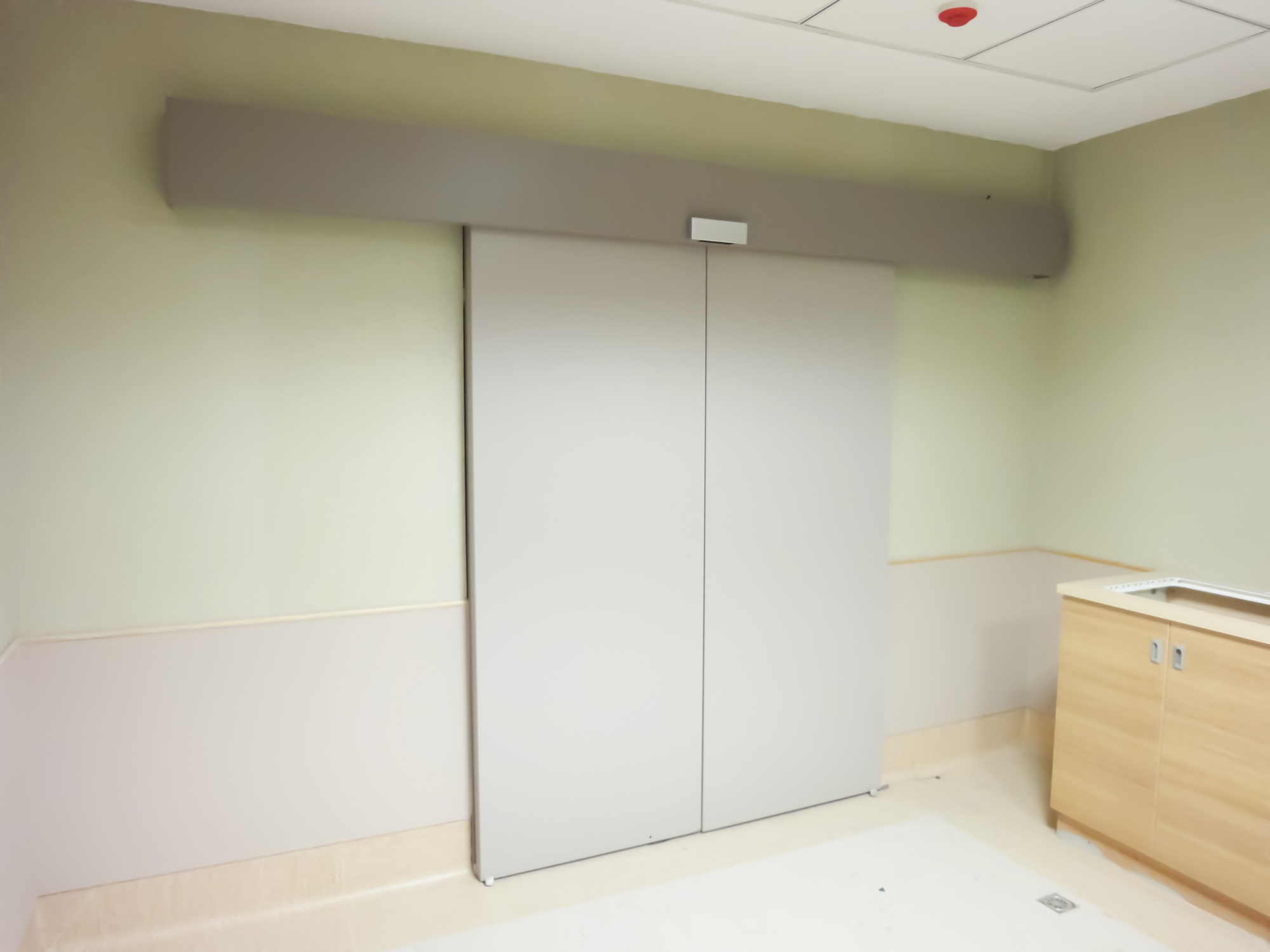

Steel Made F(60A) Fire Protection-Bi-Parting-Sliding Door


鋼製F(60A)防火-雙扇-橫拉門
Product Features

● Fire Protection-Bi-Parting-Sliding Door, oversize 3000mm*2800mm

● Optional Fire Protection Glass, which is visible

● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A

● Equipped with Emergency Power Supply so that even when the power is cut off, automatic door can still be operating.
User can also set up Door Leaves Operation when power is off in advance, operation includes
A. Door Leaves stay opening
B. Door Leavesstay closed and locked
C. Door Leaves stay closed but can be manually opened

●Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode 5. Door leaves open unconditionally





SPECIFICATION

  • Steel Made F(60A) Fire Protection-Bi-Parting-Sliding Door

    Fire Protection Certification Number



    Fire Protection Grade

    F(60A)

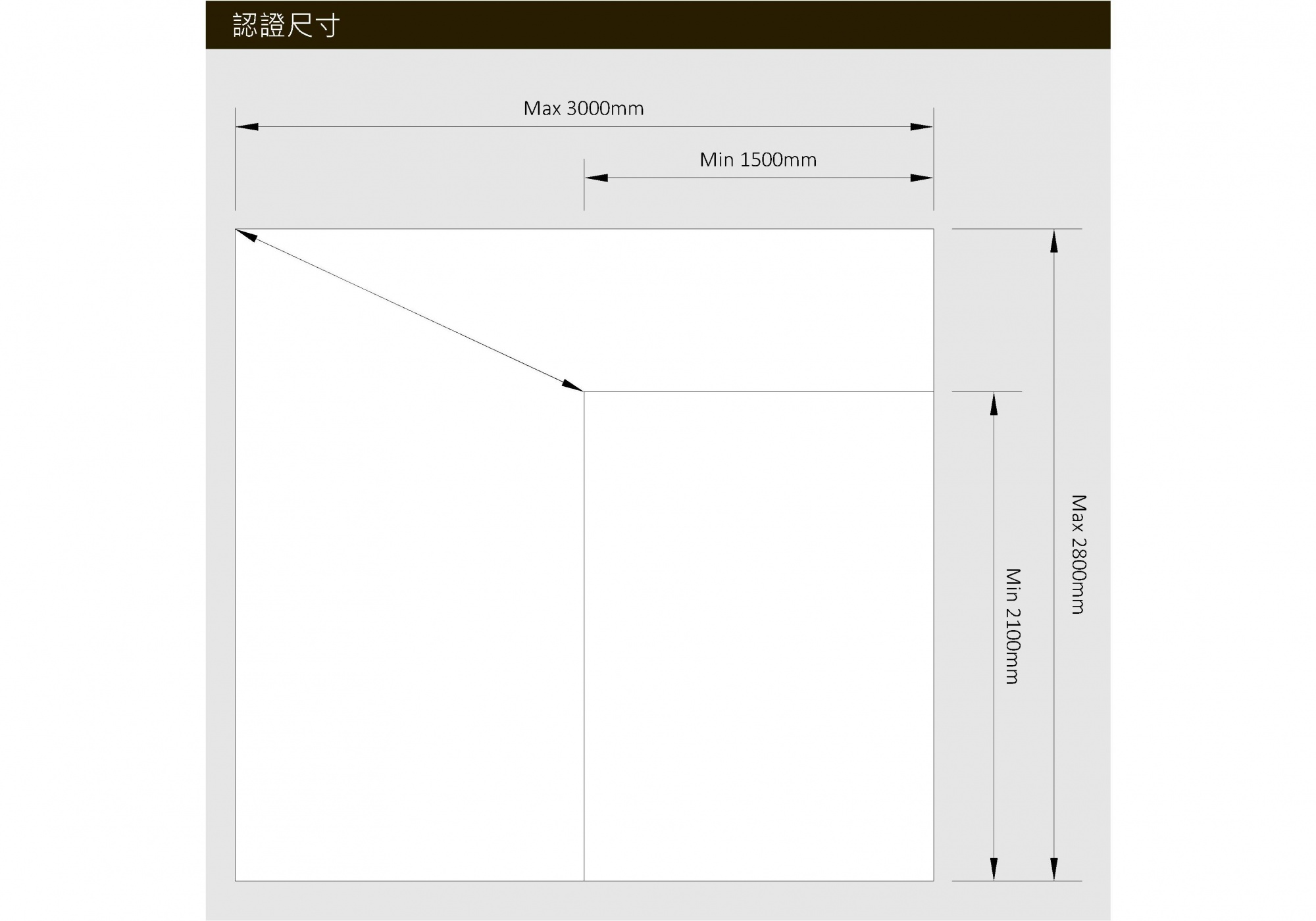

    Size Approved

    MAX W:3000*H:2800(mm)
    MIN W:1500*H:2100(mm)

    Applications



    Material

    Stainless Steel
    Galvanized Steel

    Option Type
