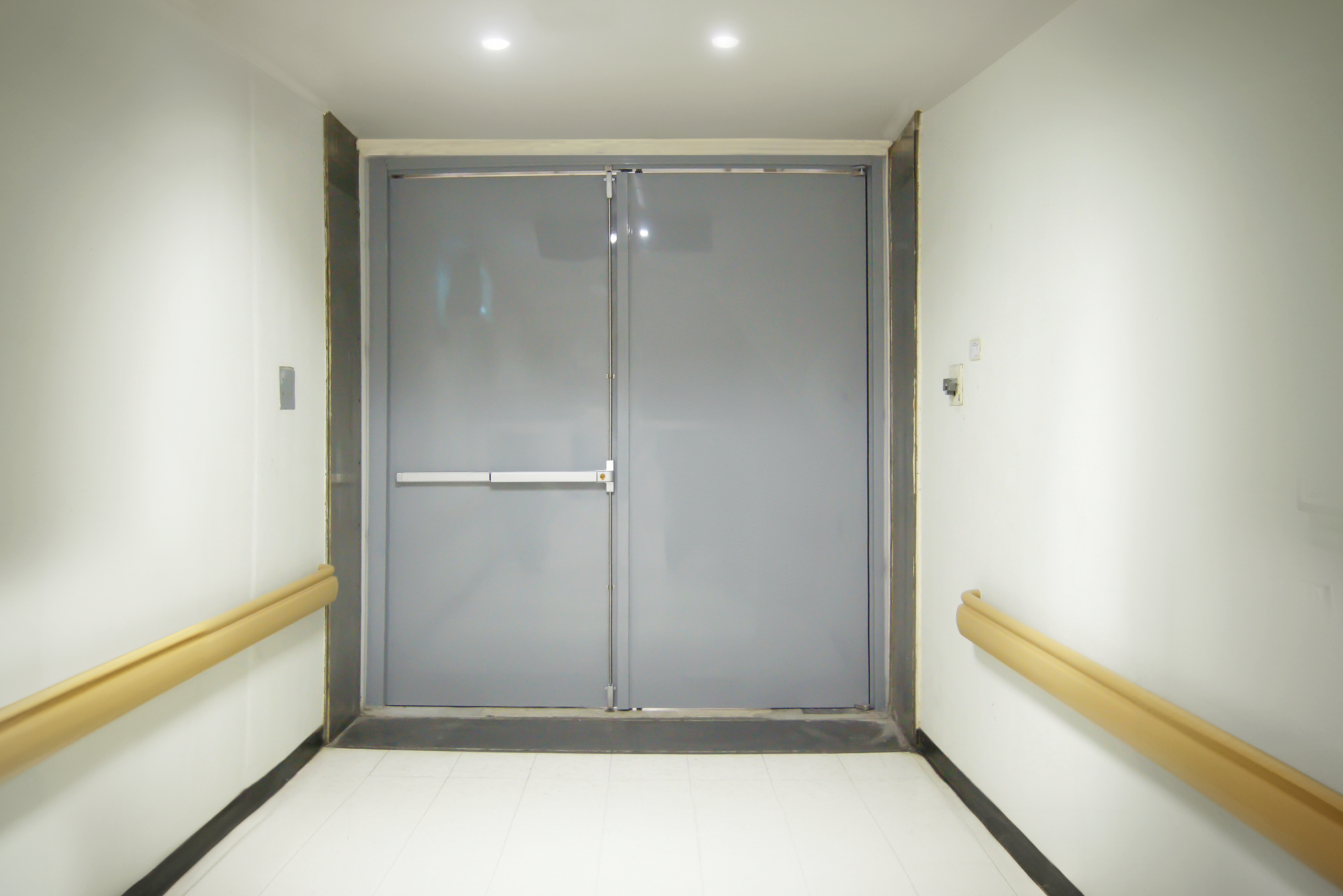

Steel Made F(60A) Fire Protection- Swing Door (Reverse 180 degree open)


鋼製F(60A)防火-推拉門(反向180度開啓)
Product Features

● -
● Working with Automatic Door System, safe and multi-functioning
● Optional Fire Protection Glass, which is visible
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A
● Equipped with Emergency Power so that door leaves still operate normally even when the power is cut off. On the other hand, door leave operation can be set in advanced for power cut as well, A. Door Leaves always stay opened, B. Door Leaves always stay closed and locked, C. Door Leaves always stay closed, can be opened manually, to let customers choose
● Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route: 1. Door leaves close immediately, user pull the leaves gently and they will open automatically 2. Door leaves close immediately and continue to clamp tight 3. Door leaves close immediately and accept Opening Signal 4. Door leaves close immediately, Manual Mode 5. Door leaves open unconditionally





SPECIFICATION

  • Steel Made F(60A) Fire Protection- Swing Door (Reverse 180 degree open)

    Fire Protection Certification Number



    Fire Protection Grade

    F(60A)

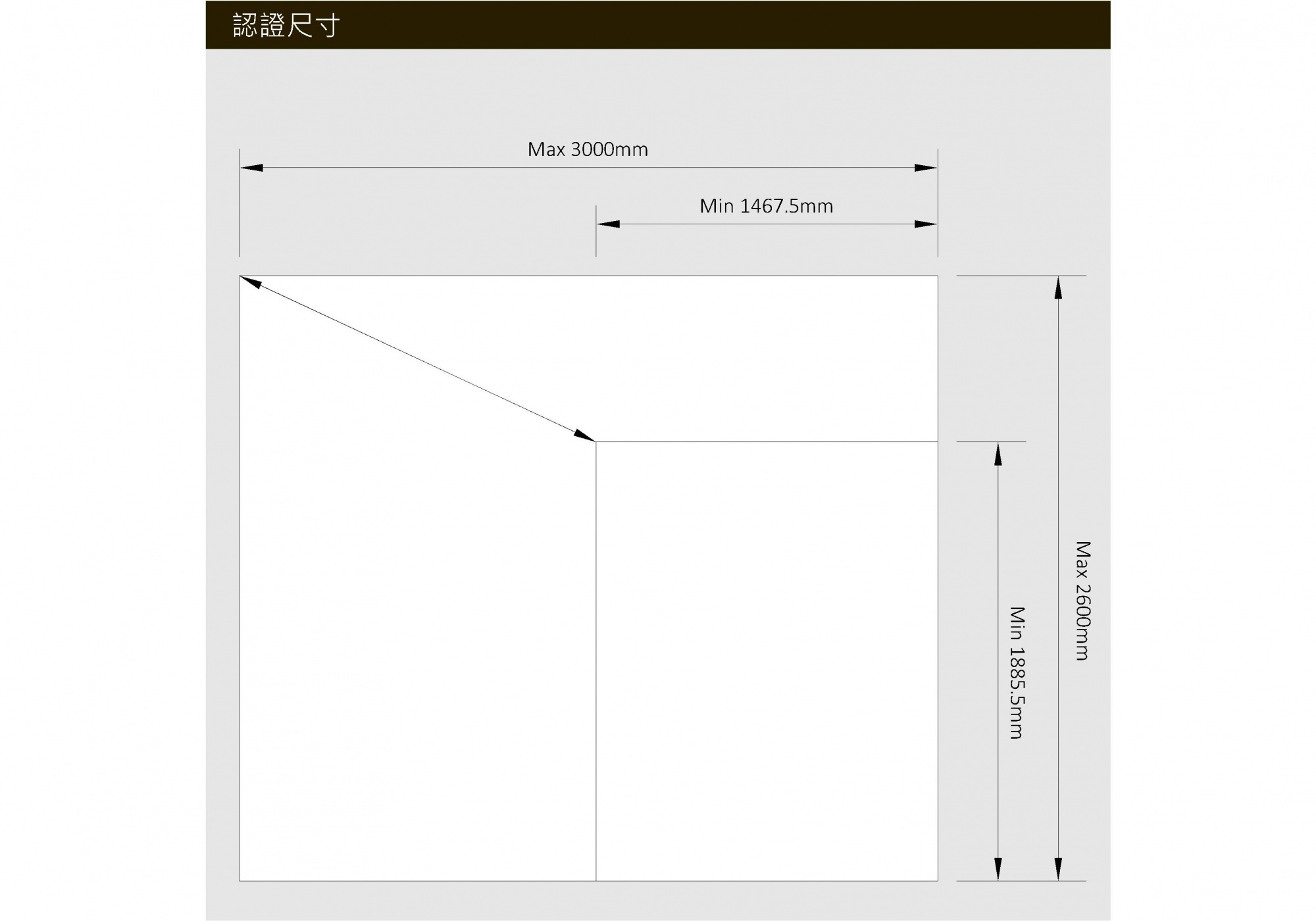

    Size Approved

    MAX W:3000*H:2600(mm)
    MIN W:1467.5H:1885.5(mm)

    Applications

    Hospital
    Medical Centers
    Techlogogical Factory
    Kitchens in Restaurant
    Escape Zone in Tall Buildings

    Material

    Stainless Steel

    Option Type
