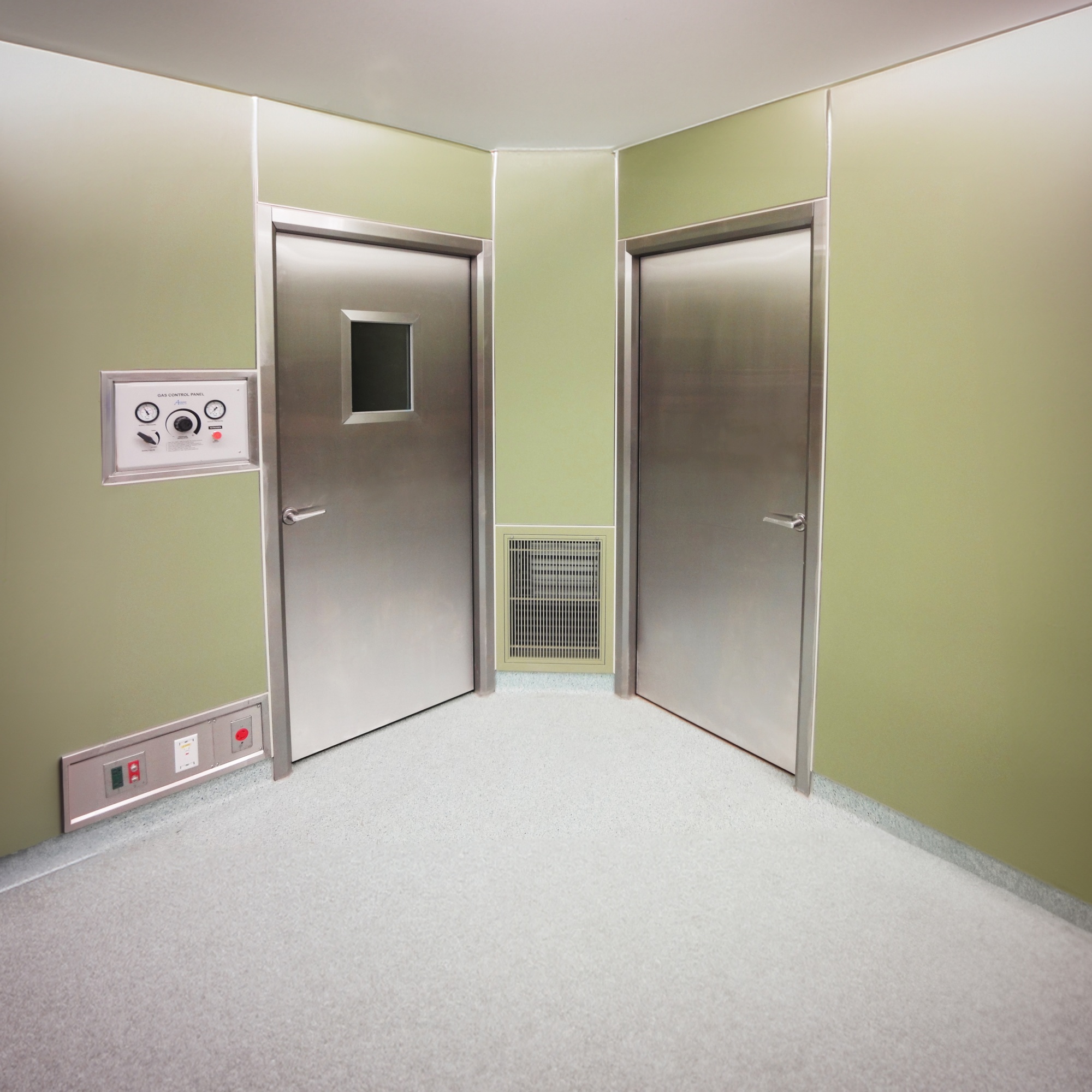

Steel Made F(60A) Fire Protection Radiation Protection-Single Leaf- Swing Door
%E9%98%B2%E7%81%AB%E9%98%B2%E8%BC%BB-%E5%96%AE%E6%89%87-%E6%8E%A8%E6%8B%89%E9%96%80.jpg)
Product Features
● Designed for Hospitals, Research Centers as well as door leaves which need to be anti fire and radiation at the same time
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade achieves 60A, Anti radiation function is tested under real installation and inspection
● Working with Automatic Door Operator System which is safe and multi-functioning
● Equipped with Emergency Power Supply so that even when the power is cut off, automatic door can still be operating. User can also set up Door Leaves Operation when power is off in advance, operation includes
A. Door Leaves stay opening
B. Door Leaves stay closed and locked
C. Door Leaves stay closed but can be manually opened
● Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode 5. Door leaves open unconditionally
SPECIFICATION
-
Steel Made F(60A) Fire Protection Radiation Protection-Single Leaf- Swing Door
Fire Protection Certification Number
Fire Protection Grade
F(60A)
Size Approved
MAX W:1990*H:2445(mm)
MIN W:995-H:1833.8(mm)Applications
Hospitals
Special LaboratoryMaterial
Stainless Steel
Galvanized SteelOption Type
Single Leaf, Sliding
Fire Protection
Able to Attach surface decorating material/ unable to attach surface decorating material
Stoving Varnish/ Non Stoving varnish, Window/ without Window
Automatic/ Manual
