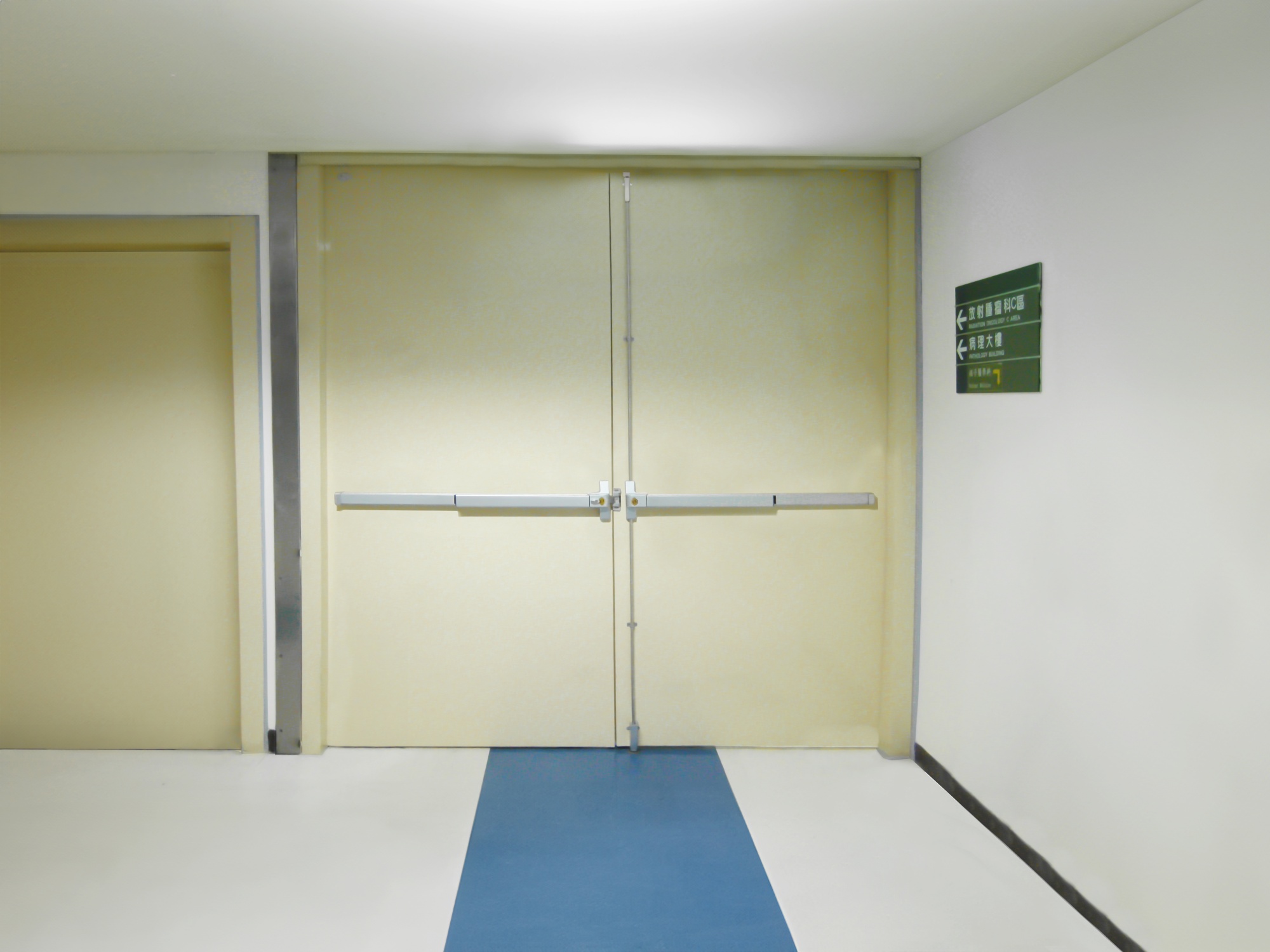

Steel Made F(60A) Fire Protection- Swing Door (Double Direction 180 Degree Opening)


鋼製F(60A)防火- 推拉門(雙向180度開啓)
Product Features

● Single leaf maximum opening range, double direction swing 180 degree opening
● Optional Fire Protection Glass, which is visible
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A
● Working with Automatic Door System, safe and multi-functioning
● Equipped with Emergency Power Supply so that even when the power is cut off, automatic door can still be operating. User can also set up Door Leaves Operation when power is off in advance, operation includes A. Door Leaves stay opening, B. Door Leavesstay closed and locked, C. Door Leaves stay closed but can be manually opened
● Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route: 1. Door leaves close immediately, user pull the leaves gently and they will open automatically 2. Door leaves close immediately and continue to clamp tight 3. Door leaves close immediately and accept Opening Signal 4. Door leaves close immediately, Manual Mode 5. Door leaves open unconditionally





SPECIFICATION

  • Steel Made F(60A) Fire Protection- Swing Door (Double Direction 180 Degree Opening)

    Fire Protection Certification Number



    Fire Protection Grade

    F(60A)

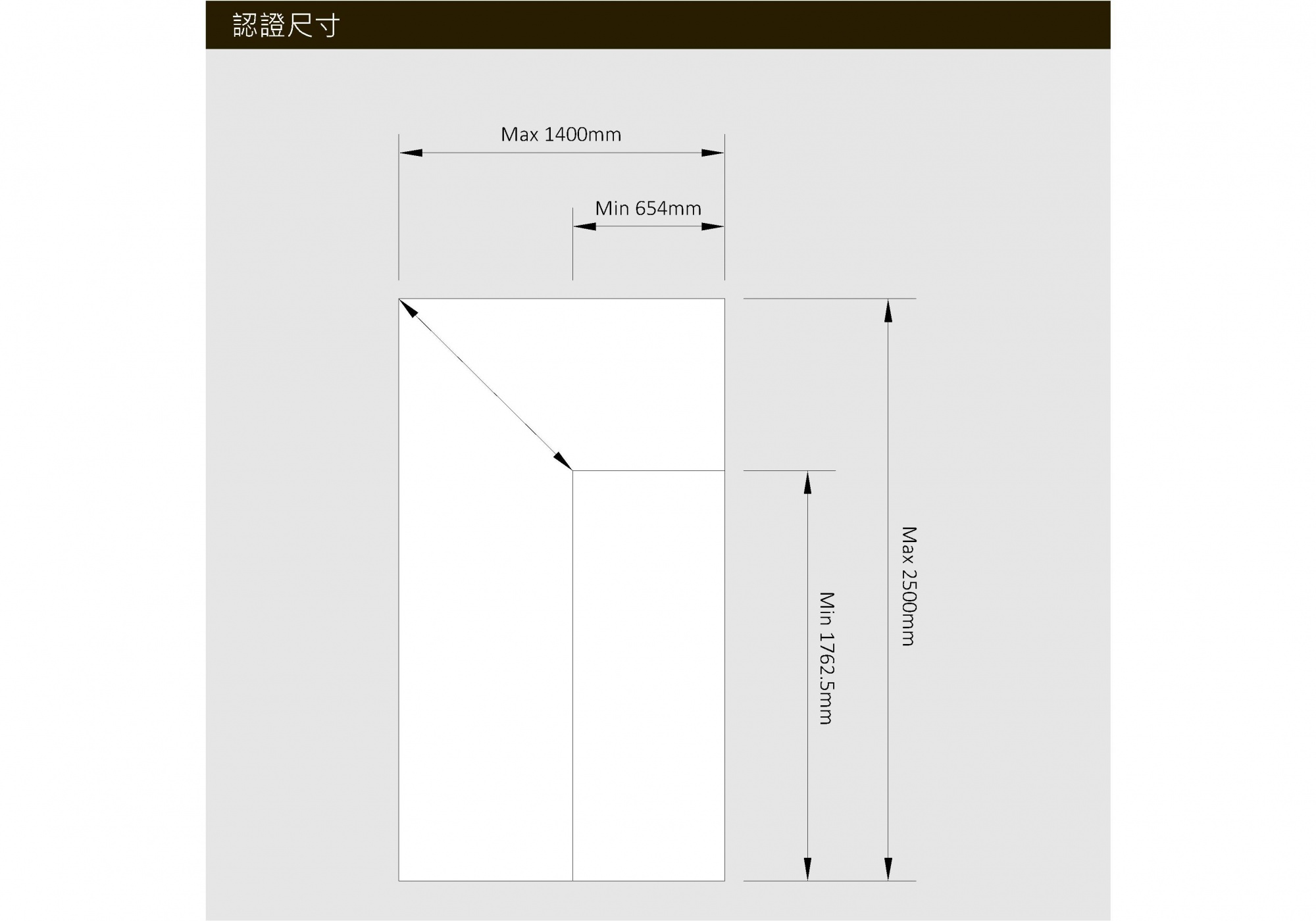

    Size Approved

    MAX W:1400*H:2500(mm)
    MIN W:654*H:1762.5(mm)

    Applications

    Hospital
    Medical Centers
    Techlogogical Factory
    Kitchens in Restaurant
    Escape Zone in Tall Buildings

    Material

    Stainless Steel
    Galvanized Steel

    Option Type

    Single Leaf 90 Degree Swing
    Single Leaf 180 Degree Double Direction Opening, Bi-Parting 180 Degree Reverse Opening
    stoving varnish/ without stoving varnish
    With Window/ Without Window, Automatic/ Manual
    With Surface Decoration Material/ Without Surface Decoration Material
