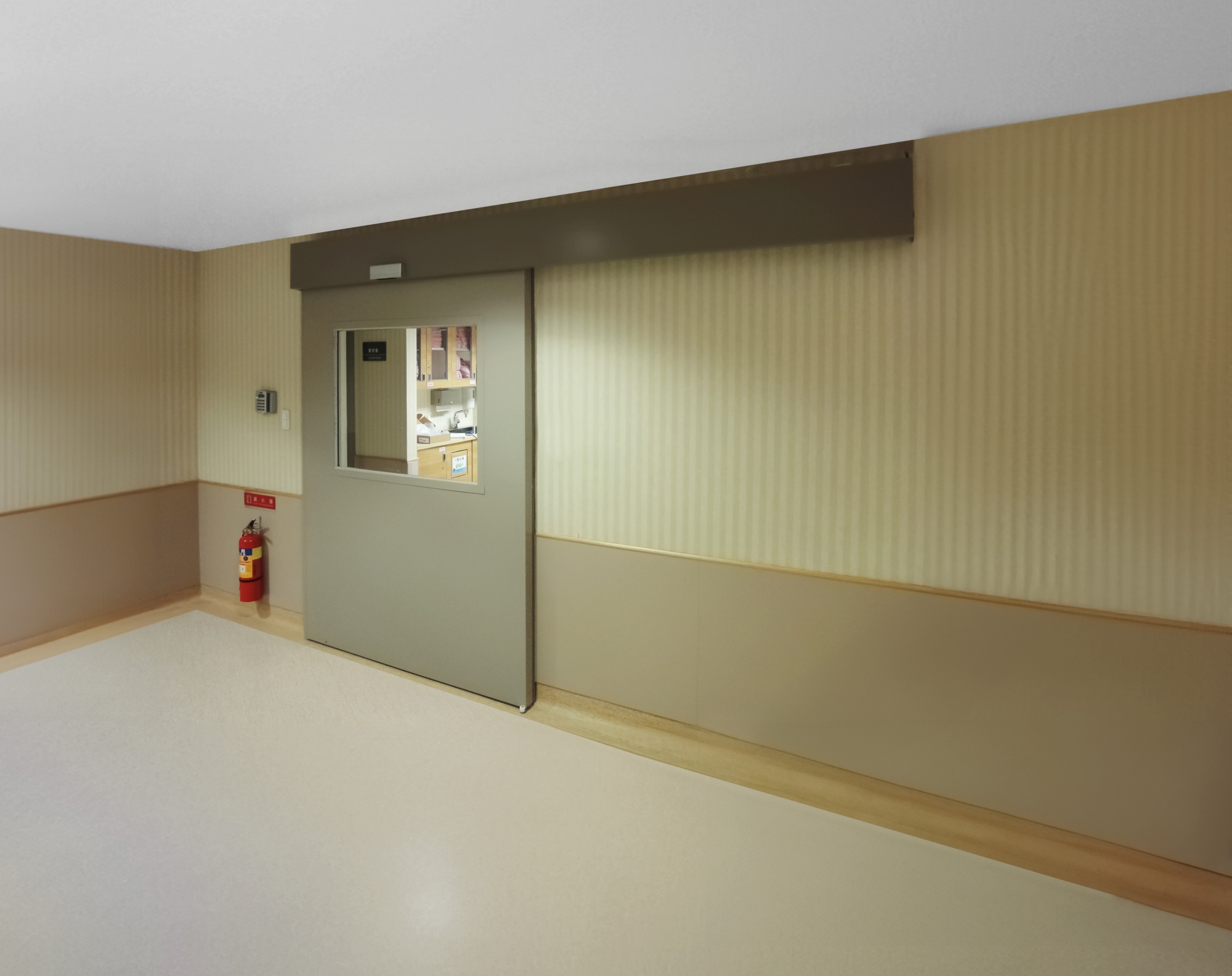

Steel Made F(60A) Fire Protection-Single Leaf-Sliding Door
%E9%98%B2%E7%81%AB-%E5%96%AE%E6%89%87-%E6%A9%AB%E6%8B%89%E9%96%80.jpg)
Product Features
● Fire Protection-Single Leaf-Sliding Door, oversize 2442mm*2447mm
● Optional Fire Protection Glass, which is visible
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A
● Working with Automatic Door System, safe and multi-functioning
● Equipped with Emergency Power Supply so that even when the power is cut off, automatic door can still be operating.
User can also set up Door Leaves Operation when power is off in advance, operation includes
A. Door Leaves stay opening
B. Door Leavesstay closed and locked
C. Door Leaves stay closed but can be manually opened
●Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode
5. Door leaves open unconditionally
SPECIFICATION
-
Steel Made F(60A) Fire Protection-Single Leaf-Sliding Door
Fire Protection Certification Number
Fire Protection Grade
F(60A)

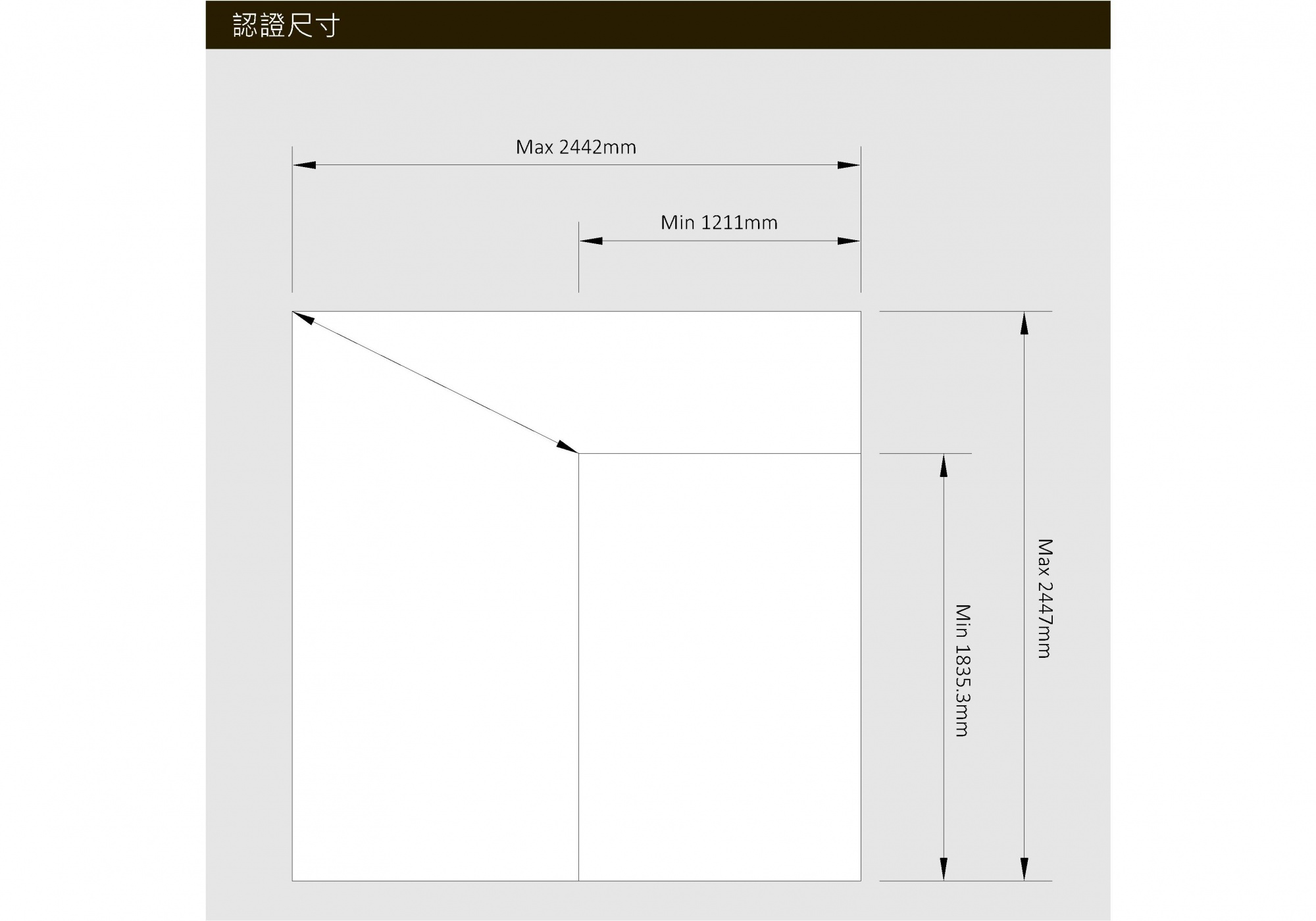

Size Approved
MAX W:2442*H:2447(mm)
MIN W:1211*H:1835.3(mm)Applications
Material
Stainless Steel
Galvanized SteelOption Type
