Steel Made F(60A) Fire Protection Whole Glass-Single Leaf- Sliding Door
%E9%98%B2%E7%81%AB%E5%85%A8%E7%8E%BB-%E5%96%AE%E6%89%87-%E6%A9%AB%E6%8B%89%E9%96%80.png)
Product Features
● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A
● Transmitting glass is more than 80% overall, High Fire Protection and people can easily choose the escape route
● Lock can be connected with Security and disaster as well as working with Automatic Door Operator System, which is safe and multi-functioning
● Equipped with Emergency Power so that door leaves still operate normally even when the power is cut off. On the other hand, door leave operation can be set in advanced for power cut as well
A. Door Leaves always stay opened
B. Door Leaves always stay closed and locked
C. Door Leaves always stay closed, can be opened manually, to let customers choose
● Able to connect with Credit Center in building so that when system receives the signal of fire, 5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode 5. Door leaves open unconditionally
SPECIFICATION
-
Steel Made F(60A) Fire Protection Whole Glass-Single Leaf- Sliding Door
Fire Protection Certification Number
Fire Protection Grade
F(60A)

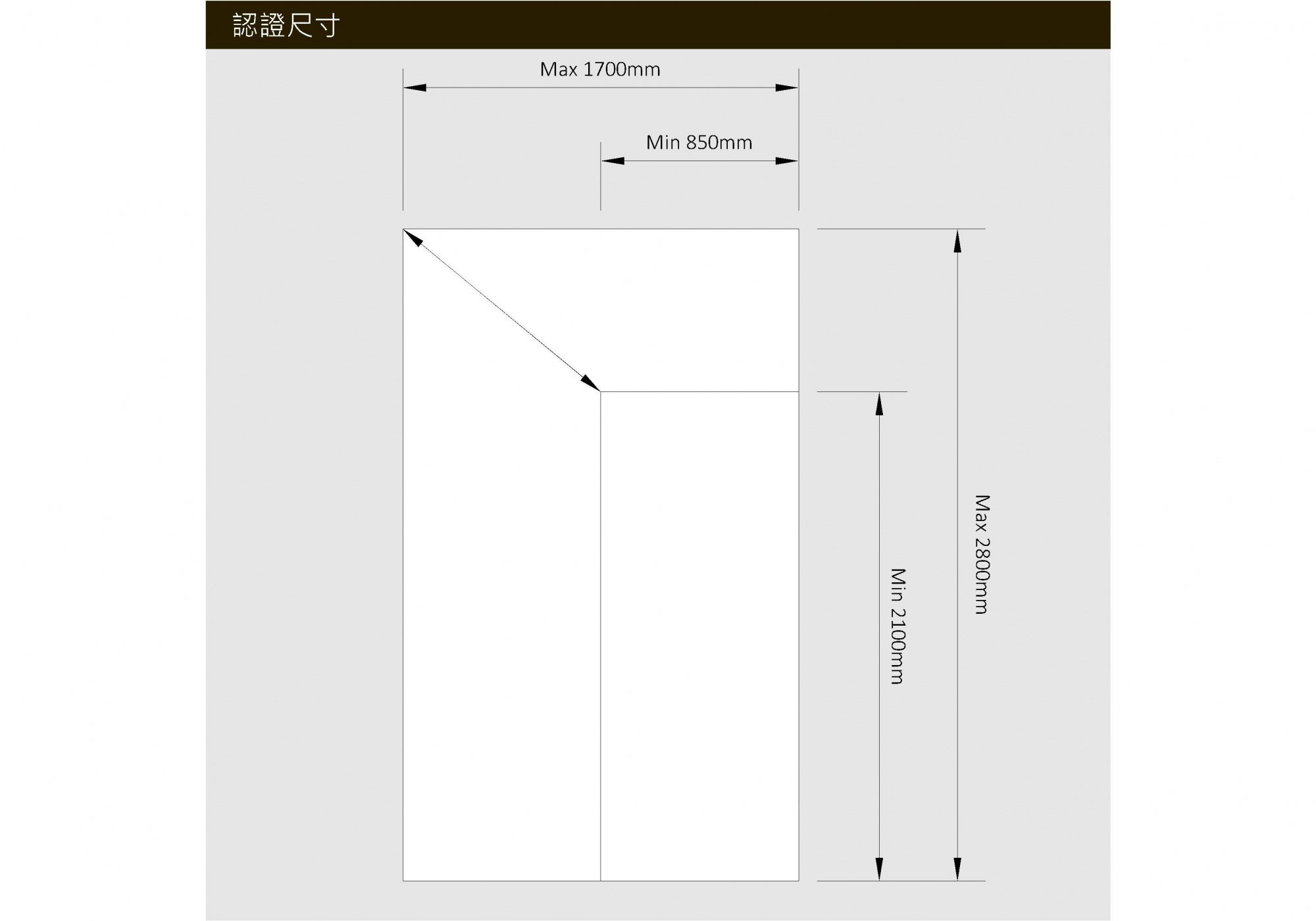

Size Approved
MAX W:1700*H:2800(mm)
MIN W:850*H:2100(mm)Applications
Hospital
Medical Centers
Techlogogical Factory
Kitchens in Restaurant
Escape Zone in Tall BuildingsMaterial
Stainless Steel
Option Type
Sliding
Single Leaf
Automatic/ manual
