F(60A) Automatic Sliding Fire protection door with smoke resistant


F(60A)防火遮煙門-橫拉門-手動/自動
Product Features

● Special smoke-proof patented structure track

● Passed CNS 11227 Fire Protection Inspection, Fire Protection Grade 60A

● Equipped with Emergency Power so that door leaves still operate normally even when the
power is cut off.
On the other hand, door leave operation can be set in advanced for power cut as well
A. Door Leaves always stay opened
B. Door Leaves always stay closed and locked
C. Door Leaves always stay closed, can be opened manually, to let customers choose.

●Able to connect with Credit Center in building so that when   system receives the signal of fire,5 options can be chosen according to building's fire protection division and Escape route:
1. Door leaves close immediately, user pull the leaves gently and they will open automatically
2. Door leaves close immediately and continue to clamp tight
3. Door leaves close immediately and accept Opening Signal
4. Door leaves close immediately, Manual Mode
5. Door leaves open unconditionally

SPECIFICATION

  • F(60A) Automatic Sliding Fire protection door with smoke resistant

    Fire Protection Certification Number



    Fire Protection Grade

    F(60A)

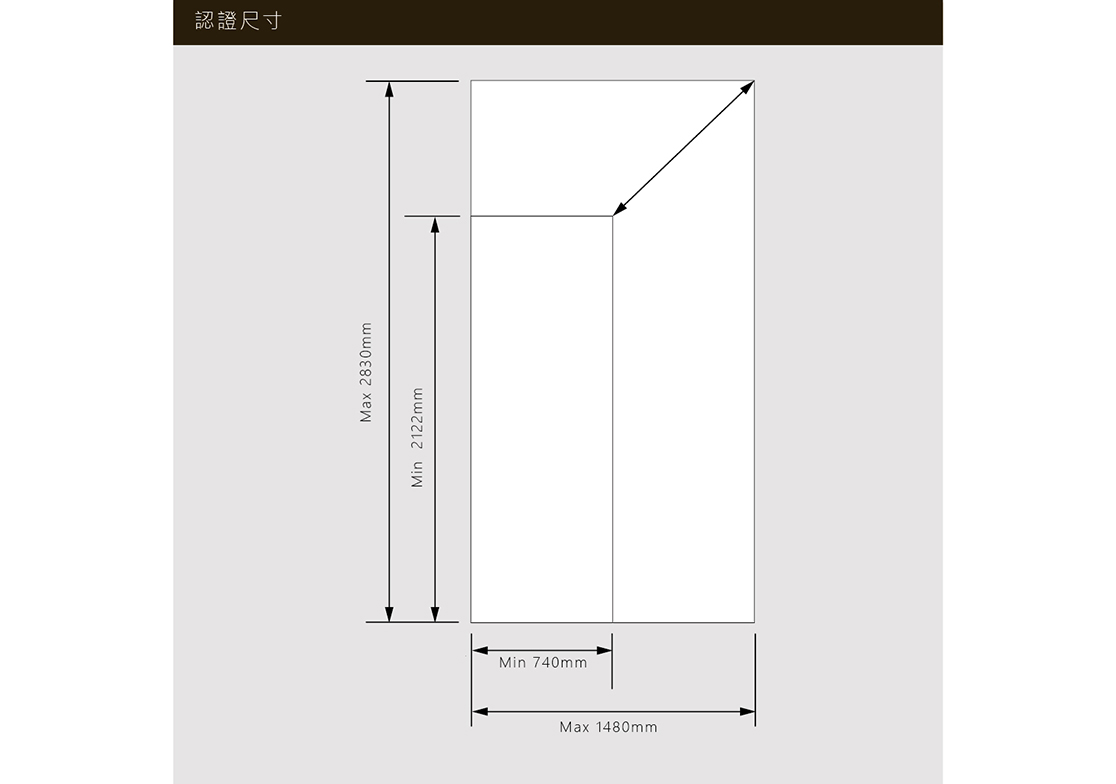

    Size Approved

    MAX W:2830*H:1480(mm)
    MIN W:2122*H:740(mm)

    Applications



    Material



    Option Type
