SR-MD Series Comfort Light Curtain

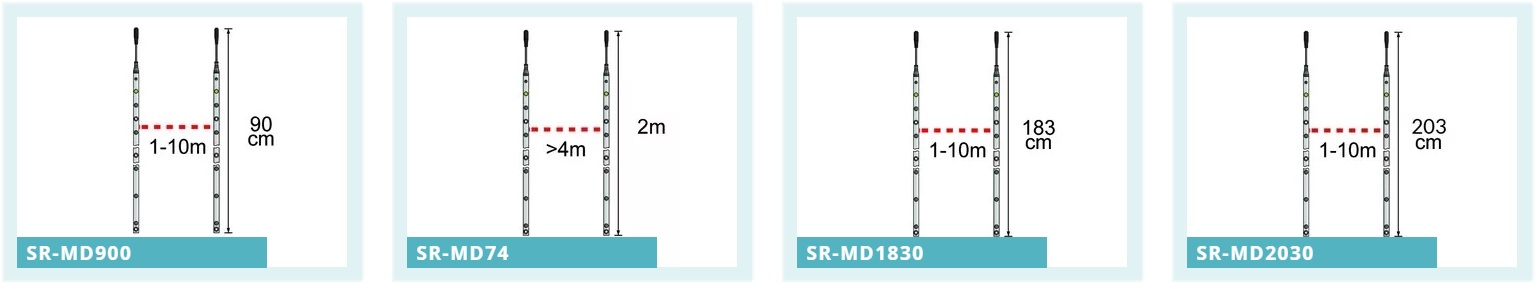

Detecting distance

  • SR-MD900

    Detecting distance

    1M~10M

    Number of beams

    8

    Power

    DC 10V~30V

    IP rating

    IP67

    Dimensions

    900 mm × 12 mm × 16 mm

  • SR-MD74

    Detecting distance

    4M

    Number of beams

    16

    Power

    DC 10V~30V

    IP rating

    IP67

    Dimensions

    2000 mm × 12 mm × 16 mm

  • SR-MD1830

    Detecting distance

    1M~10M

    Number of beams

    20

    Power

    DC 10V~30V

    ​IP rating

    IP67

    Dimensions

    1830 mm × 12 mm × 16 mm

  • SR-MD2030

    Detecting distance

    1M~10M

    Number of beams

    32

    Power

    DC 10V~30V

    ​IP rating

    IP67

    Dimensions

    2030 mm × 12 mm × 16 mm

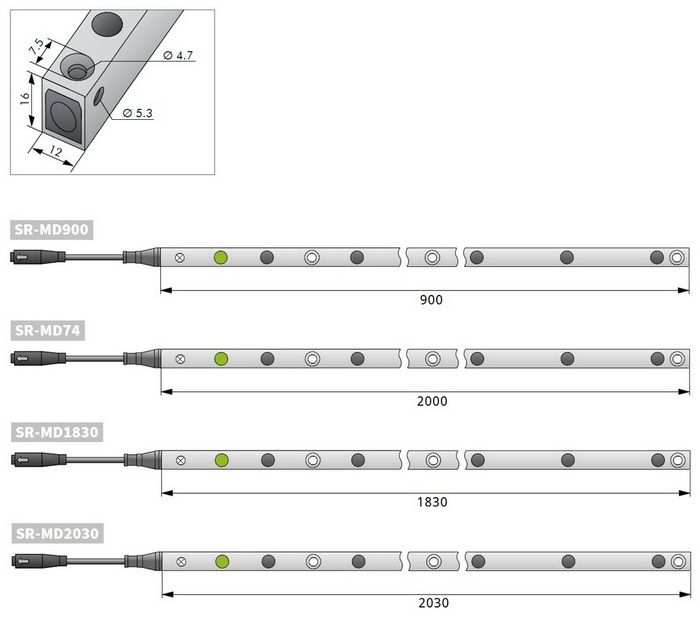

DIMENSIONS

INFORMATION

Want to know more about the SR-MD Series Comfort Light Curtain ?

Please contact Tronco to learn more.  LINE  Whatsapp
