Beam Sensor

beam sensor

Features

● Small dimensions
● Integrated controller
● Very resistant to ambient light
● Various mounting adapters available







High performance, compact housing, incredibly cost-effective

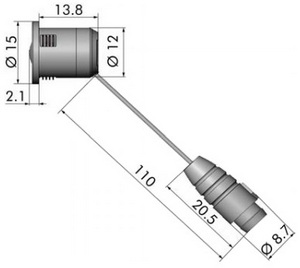

The S300 through beam sensor family consists of highly sophisticated monitoring elements for automatic sliding doors, elevator doors or for the automatic start of escalators and trvelators. S300 has a built-in controllers of just 12mm. If an object is detected between the infrared emitter and receiver, an output signal is triggered.

S300 can be very quickly installed thanks to a  "Snap-in" mechanism on the housing: Simply "snap" the emitter immediately ready for operation. The sensors are extremely compact and are ideal for direct integration in door frames, elevator door and practically everywhere, where space is limited.

Specification

  • Standard

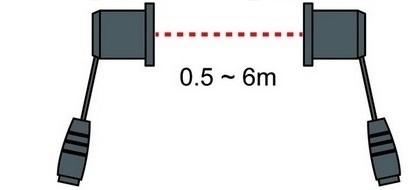

    Detective Range

    0.5~6m

    The Divergence Angle of The Delivery End

    ±5°

    The Divergence Angle of The Receiver

    ±5°

    Maximum Anti-luminosity

    100000 Lux

    Power

    10~30 VDC

    Delivery End Consumption

    8 mA@30VDC

    Receiver Consumption

    8 mA@30VDC

    Positive Edge Rise Time

    <100ms

    Negative Edge Fall Time

    <100ms

    Output

    PNP/NPN

    Maximum Output

    50mA

    Output Saturation Voltage

    <4V

    Storage Temperature

    -20˚C~85˚C

    Work Temperature

    -20˚C~60˚C

    Ingress Protection

    IP65

  • Short-range

    Detective Range

    0.5~6m

    The Divergence Angle of The Receiver

    ±5°

    The Divergence Angle of The Receiver

    ±5°

    Maximum Anti-luminosity

    100000 Lux

    Power

    10~30 VDC

    Delivery End Consumption

    8 mA@30VDC

    Receiver Consumption

    8 mA@30VDC

    Positive Edge Rise Time

    <100ms

    Negative Edge Fall Time

    <100ms

    Output

    PNP/NPN

    Maximum Output

    50mA

    Output Saturation Voltage

    <4V

    Storage Temperature

    -20˚C~85˚C

    Work Temperature

    -20˚C~60˚C

    Ingress Protection

    IP65

  • Long-range

    Detective Range

    0.5~12m

    The Divergence Angle of The Receiver

    ±5°

    The Divergence Angle of The Receiver

    ±5°

    Maximum Anti-luminosity

    100000 Lux

    Power

    10~30 VDC

    Delivery End Consumption

    8 mA@30VDC

    Receiver Consumption

    8 mA@30VDC

    Positive Edge Rise Time

    <100ms

    Negative Edge Fall Time

    <100ms

    Output

    PNP/NPN

    Maximum Output

    50mA

    Output Saturation Voltage

    <4V

    Storage Temperature

    -20˚C~85˚C

    Work Temperature

    -20˚C~60˚C

    Ingress Protection

    IP65

  • Narrow angle

    Detective Range

    0.5~12m

    The Divergence Angle of The Receiver

    ±2°

    The Divergence Angle of The Receiver

    ±2°

    Maximum Anti-luminosity

    100000 Lux

    Power

    10~30 VDC

    Delivery End Consumption

    8 mA@30VDC

    Receiver Consumption

    8 mA@30VDC

    Positive Edge Rise Time

    <100ms

    Negative Edge Fall Time

    <100ms

    Output

    PNP/NPN

    Maximum Output

    50mA

    Output Saturation Voltage

    <4V

    Storage Temperature

    -20˚C~85˚C

    Work Temperature

    -20˚C~60˚C

    Ingress Protection

    IP65
