Infrared Ray Reflection Sensor

Infrared Ray Reflection

In addition to the stabilizing function, STE-311/313 can prevent from the impure signals coming from sunshine, fluorescent lamp, flash lamp, supersonic waves, electromagnetic waves... and so on. It is suitable for automatic doors, leaving and increase security, locks... and so on.

  • STE-311

    Detection Method

    Near infrared ray reflection

    Max. Detection Height

    Under 3000mm

    Sensor Adjustment

    Spiral Micro-adjustment (Knob)

    Lateral Angle

    Angle adjustment range 15°

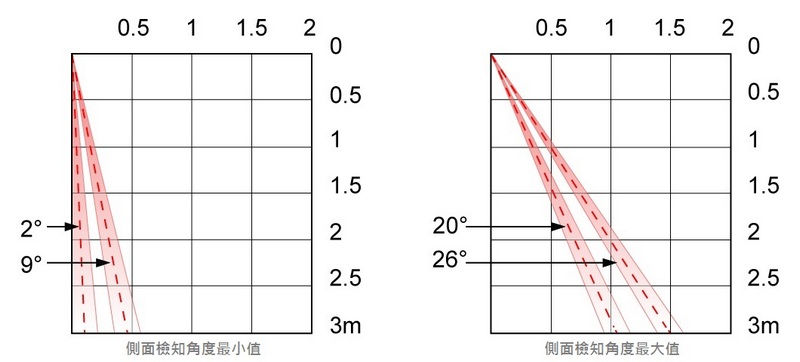

    Facade Angle

    About 9°~45° (Black Label)

    Power

    AC90V~250V

    50/60Hz

    Depletion

    2W

    Relay

    125 VAC 0.5A

    24 VDC 1A

    Output Time

    About 0.6 sec

    Action Keep Time

    1.8 sec~6.6sec Spiral adjustment

    LED

    Action(Green) Stand by (Red)

    Ambient Temp.

    -20°C~+60°C

    Weight

    About 190g

  • STE-313

    Detection Method

    Near infrared ray reflection

    Max. Detection Height

    Under 3000mm

    Sensor Adjustment

    Spiral Micro-adjustment (Knob)

    Lateral Angle

    Angle adjustment range 15°

    Facade Angle

    About 9°~45° (Black Label)

    Power

    AC/DC 12V~24V

    Depletion

    2W

    Relay

    125VAC 0.5A

    24 VDC 1A

    Output Time

    About 0.6 sec

    Action Keep Time

    1.8 sec~6.6sec Spiral adjustment

    LED

    Action(Green) Stand by (Red)

    Ambient Temp.

    -20°C~+60°C

    Weight

    About 190g

Dimensions



 Infrared Ray Reflection Size
