Euro Type AUTOMATIC SLIDING DOOR

歐式風格 自動門

European products have been known worldwide, its century-long history of industrial technology and deep aesthetic conservation, quality and taste is still a pioneer. Euro Type automatic door is TRONCO introduction of the European industry's unique technology to create the perfect models of architectural space. Enjoy continental aesthetics no longer the most distant distance. The feeling of stable and reliable lines, the simple and straightforward operating system with smooth door operation makes users to manage it comfortably.

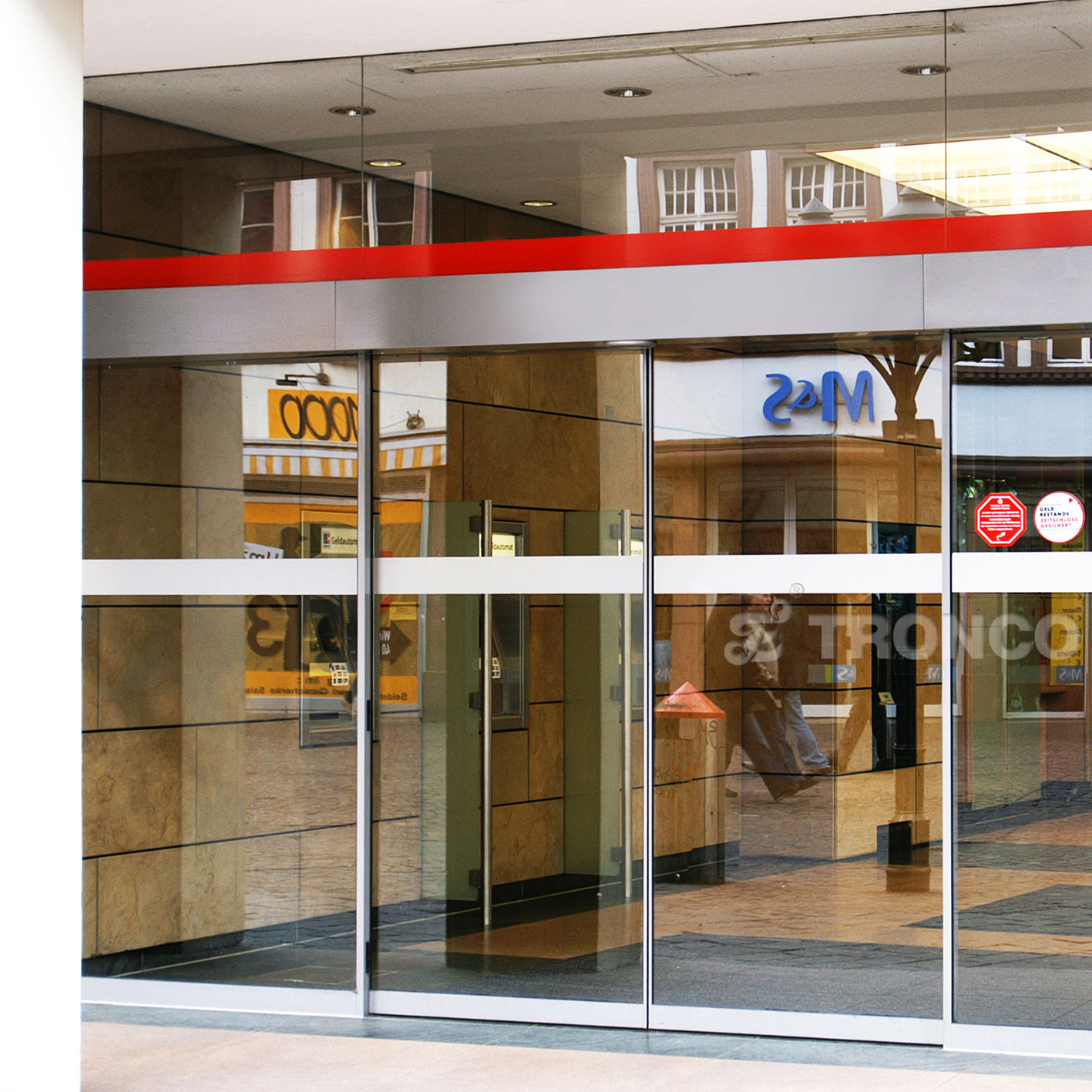

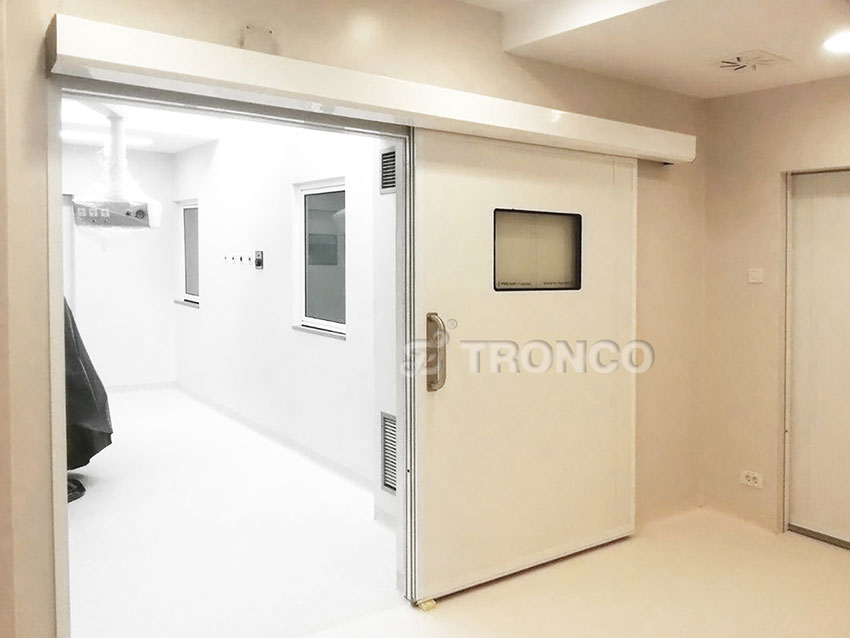

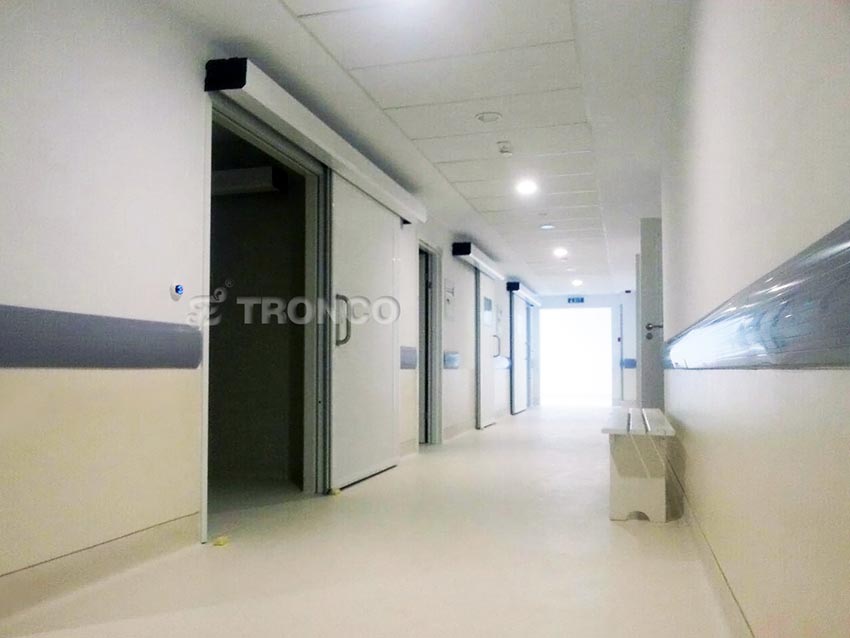

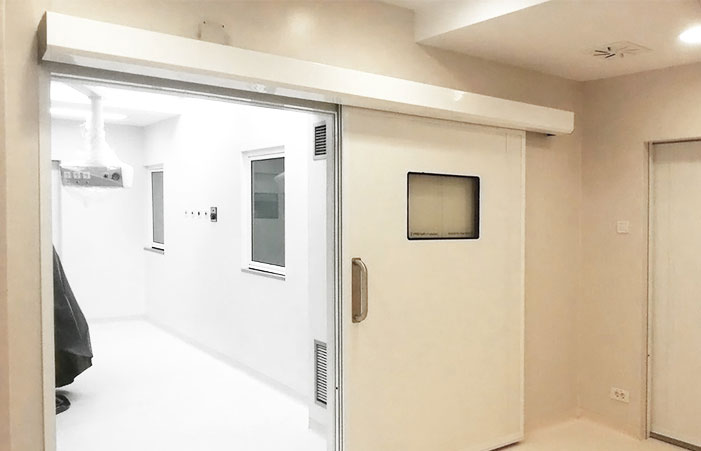

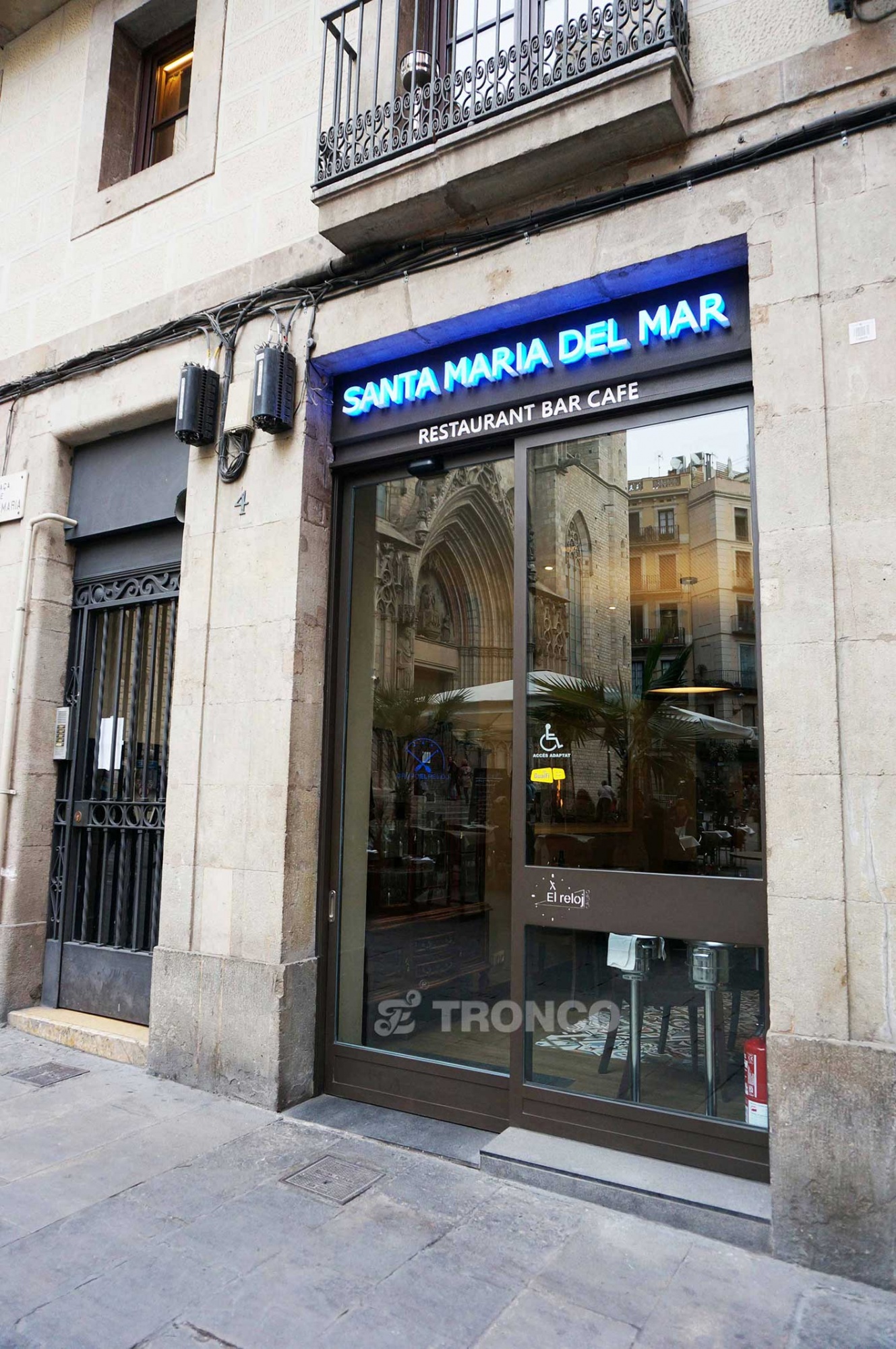

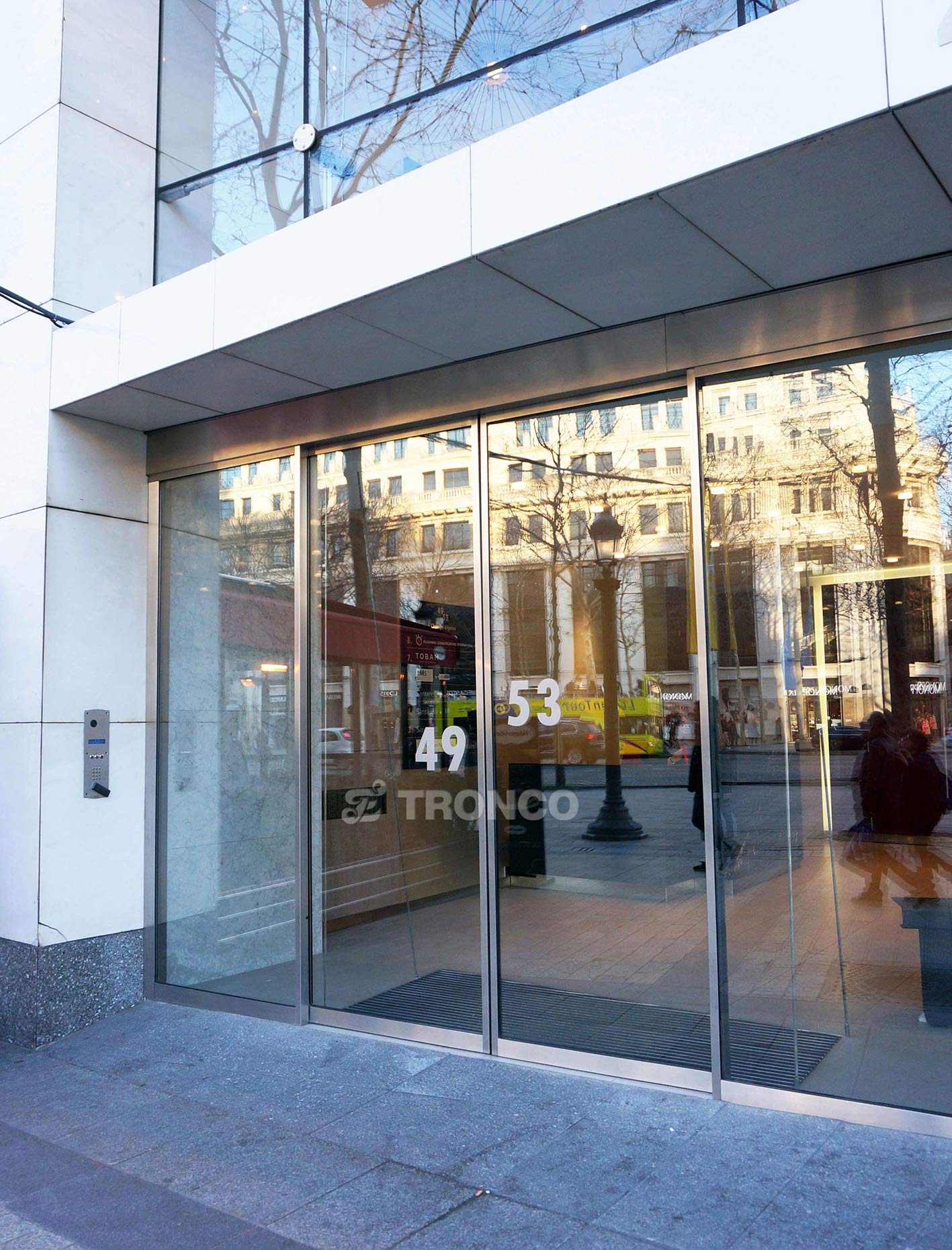

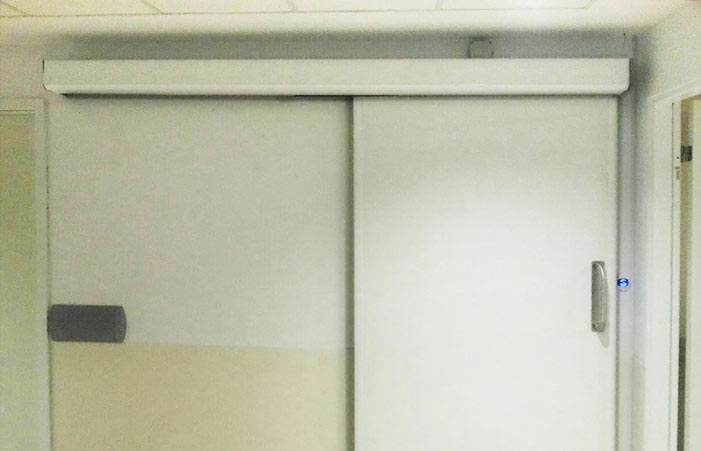

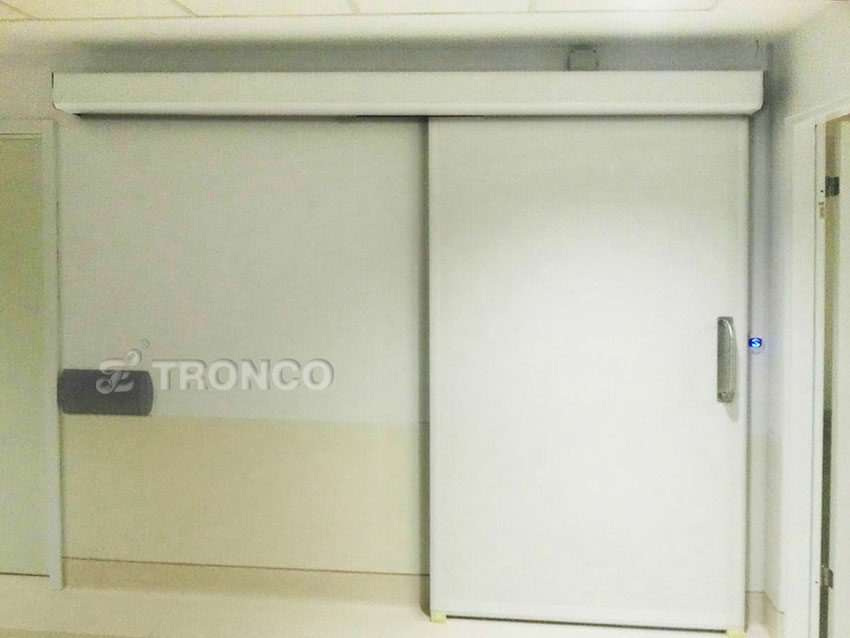

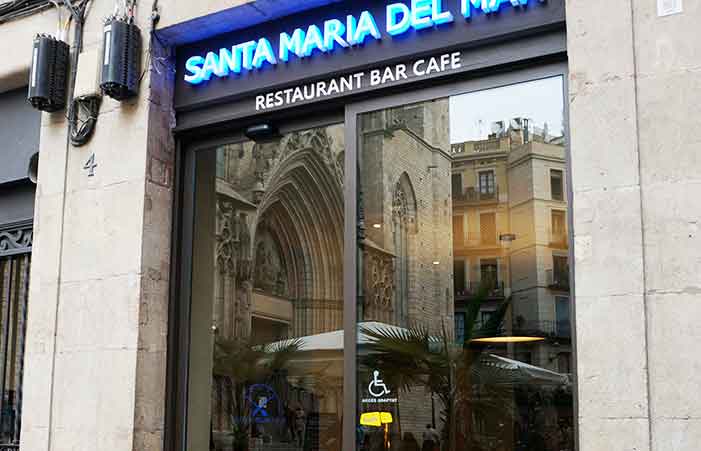

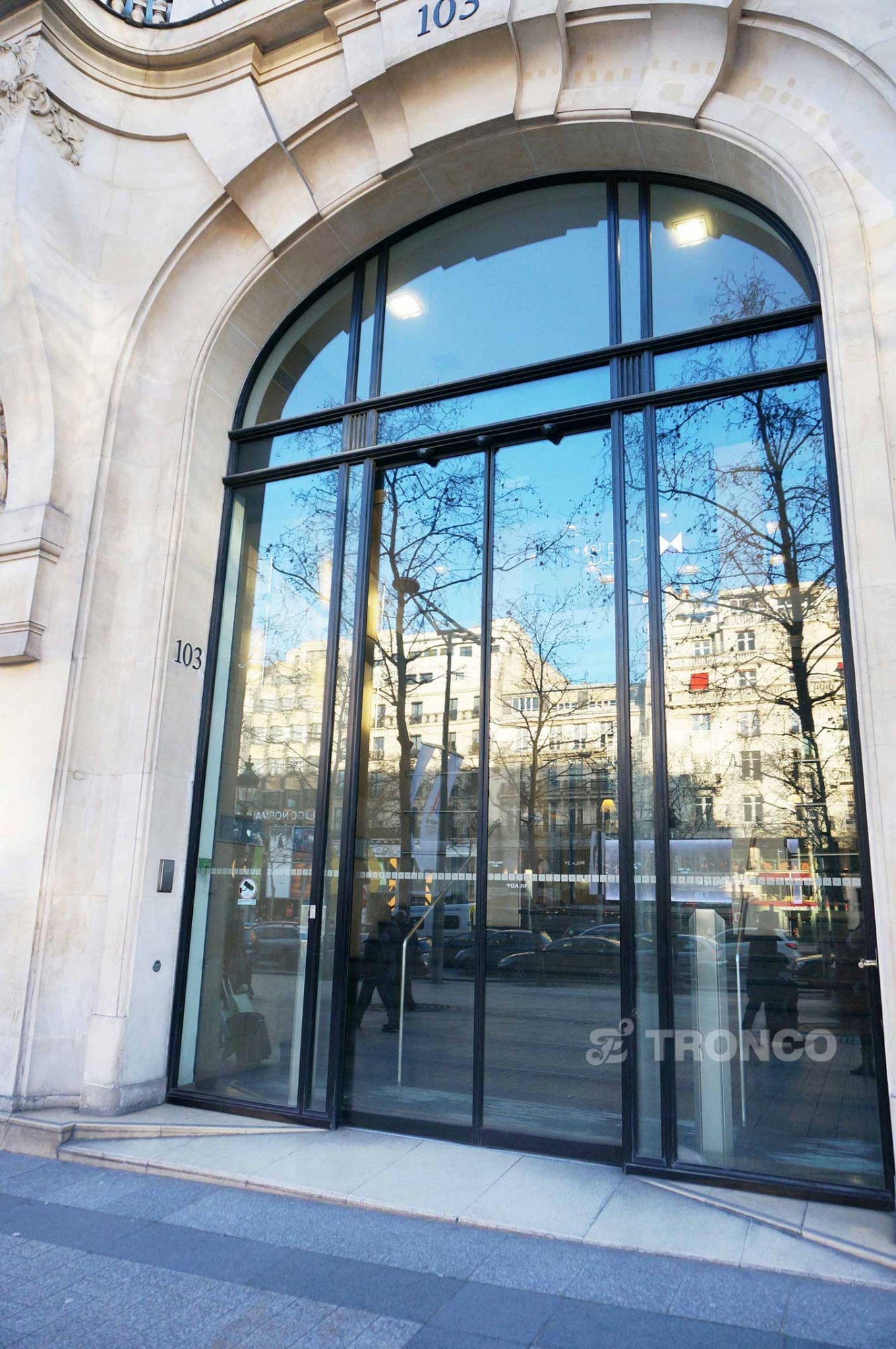

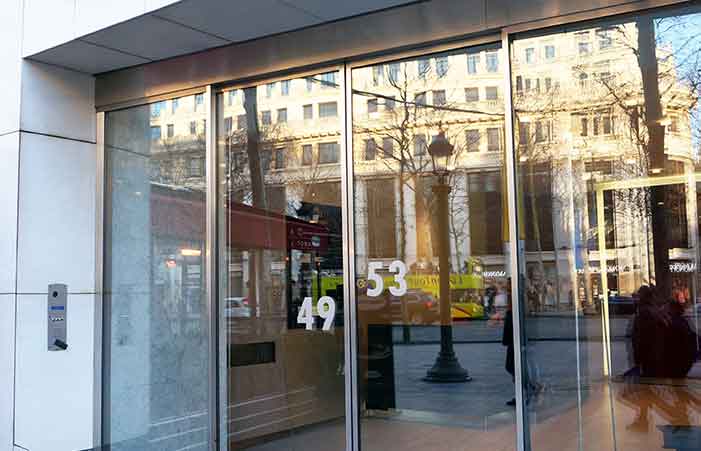

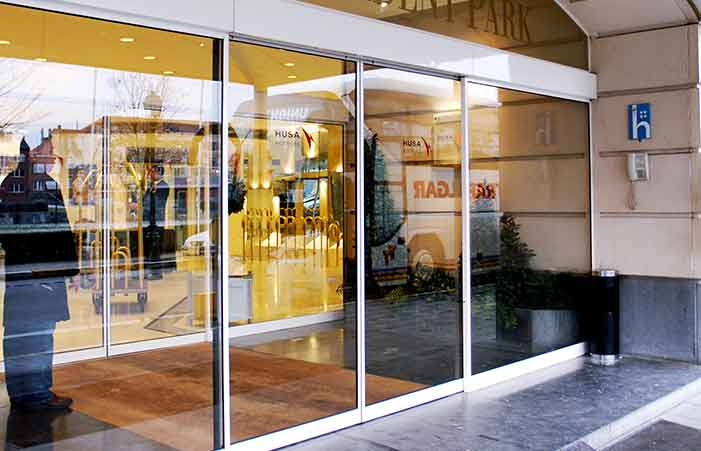

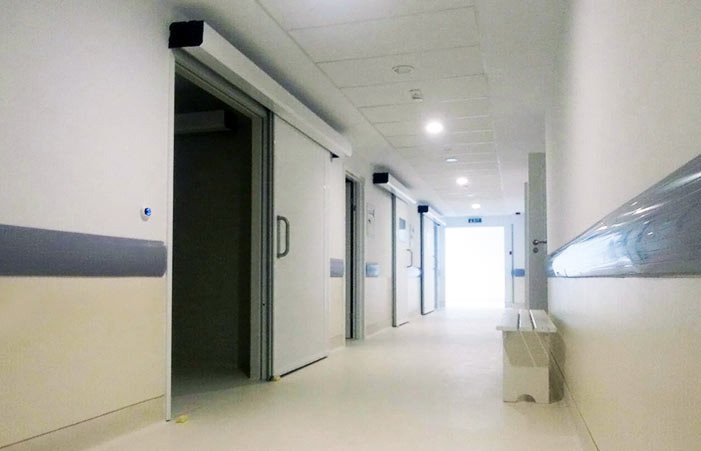

TRONCO Euro Type Series automatic doors use excellent brushless DC motor from Germany. Its high efficiency and good regulating performance, durability and other characteristics, can apply to the garage doors, hospital-lined door, warehouse door plant science and technology, accessible space, security doors, commercial buildings, stores, ships and other places and win the praise from users.

European aesthetics, excellent taste

Euro Type design with European style track, create an elegant sense of space, no longer trying to hide the chassis, any angle are all visual. TRONCO Euro Type is the perfect combination of technology product and design to enhance the value of buildings. It has become part of the beauty of the space.

Made in Germany, high efficiency and longevity

The motor can be said is the heart of automatic door system. There is no motor, even if there is a strong control system, do not make automatic doors operate freely. While Euro Type using heart from Germany, it is not only improve the life, but also reduce maintenance costs. The motor has a good regulation characteristics and rugged design. With TRONCO Euro Type controller, it makes Euro Type automatic doors go elegant and work smoothly.

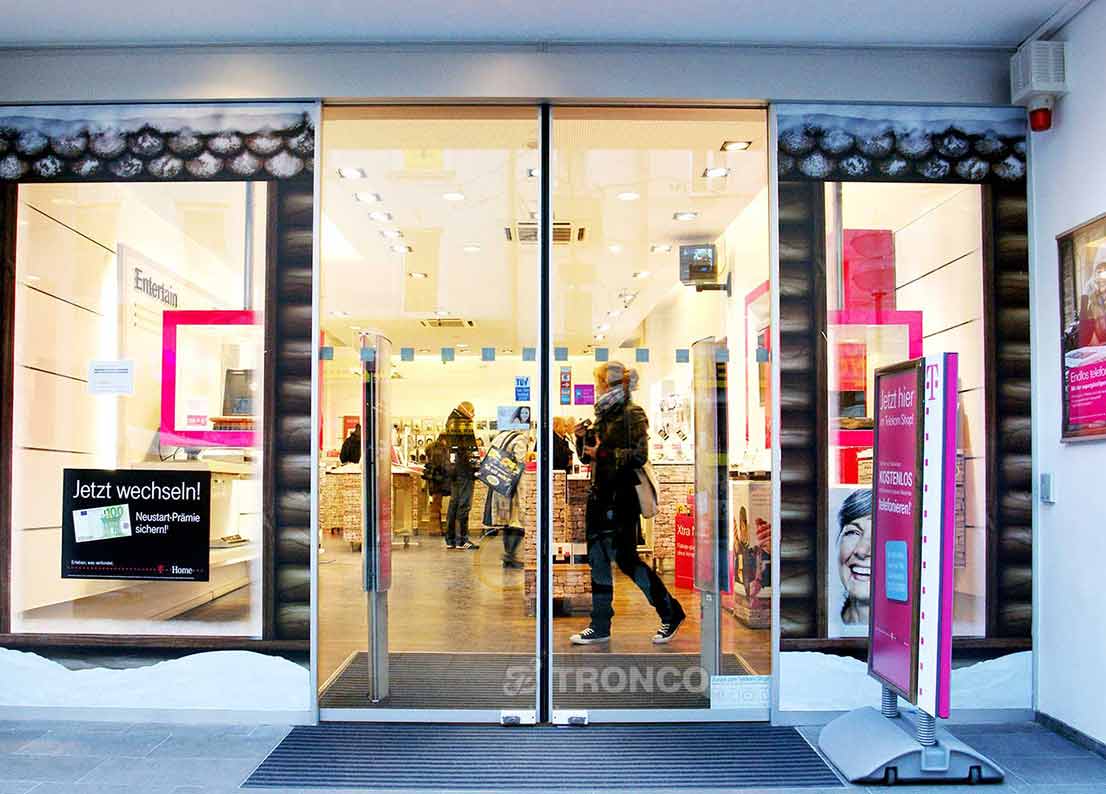

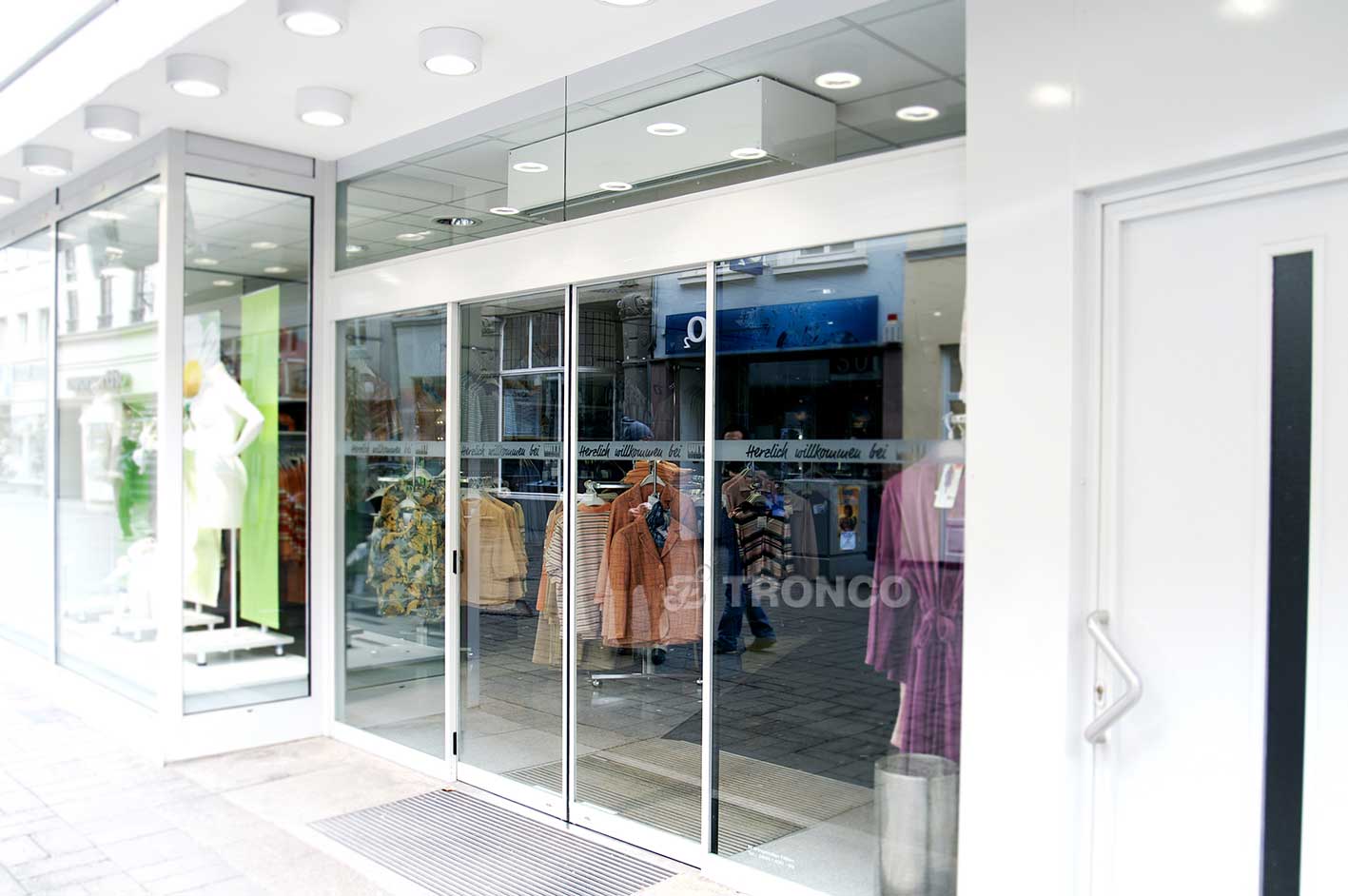

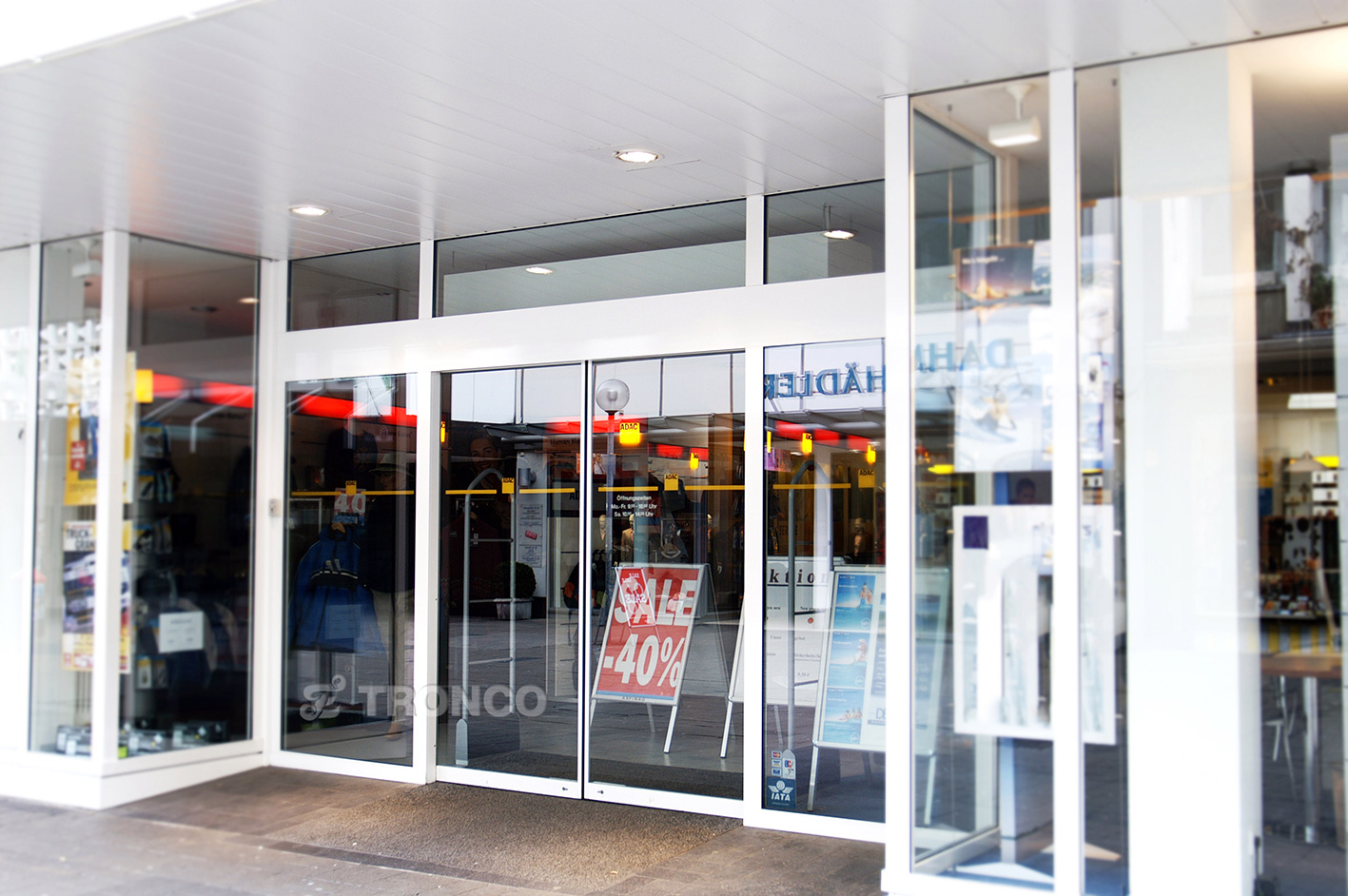

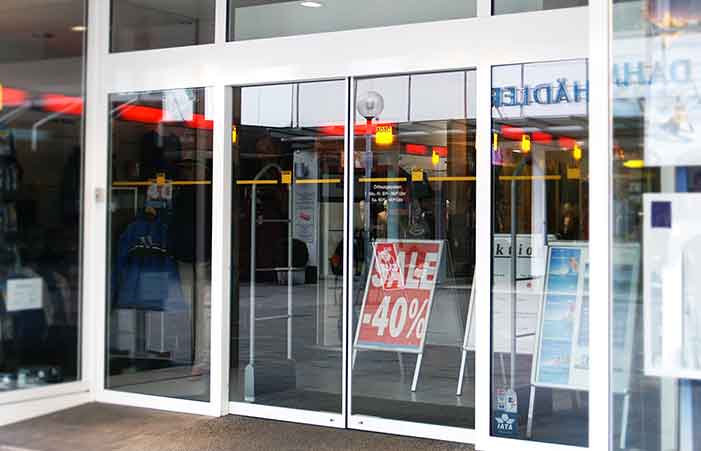

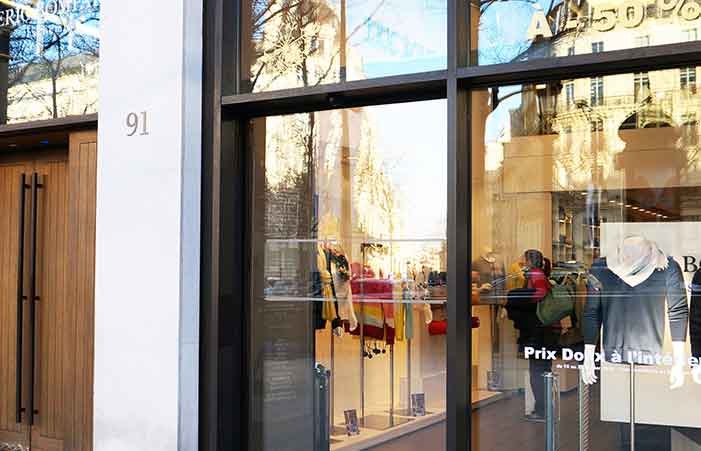

服飾店 自動門

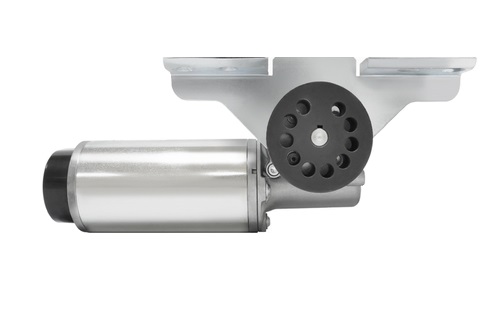

Brushless DC Motor

Through a special circuit design, the motor gives off little heat in operation. Moreover, coupled with a toothed timing belt, the motor makes the transmission mechanism more precise and effective. Finally, the motor has got overloading protection and automatic restoration.

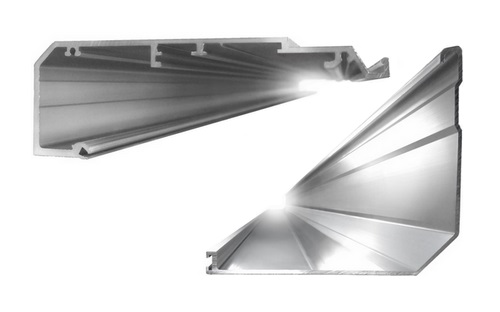

Rail of aluminum alloy

● Made of alloy, the one-piece rail is sturdy and wear-resistant.
● Excellent craftsmanship is reflected in the thinness and aesthetics of the rail


Enjoy elegant of European technology aesthetics, TRONCO Euro Type is the best choice to pursuit top of the architectural texture!
  • Euro Type-COMBO

    Load

    140 KG × 1 (Single)、90 KG × 2 (Bi-parting)

    Door size

    (Max) W:5000mm ↓、H:3500mm ↓     (Min) W:450mm ↑、H:Built to specs required

    Check with our agent first for special sizes.​

    Travel distance

    600~5000mm (Single)、500~6500mm (Bi-parting)

    Opening/Closing Speed

    10~1500mm / sec ( Adjustable )

    Hold-open time

    1~60sec ( Adjustable )

    Manual Opening Power

    2.5~4 KG (Single)、3~5 KG (Bi-parting)

    Power Supply

    AC 220V  (60/50Hz)

    Power consumption

    100W

    Output Power

    DC 12V / 1.5A、DC 24V / 1A

    IP rating

    IP20

    Operating temp.

    -20℃~55℃

    Rail size

    H 120mm × D 186.7mm

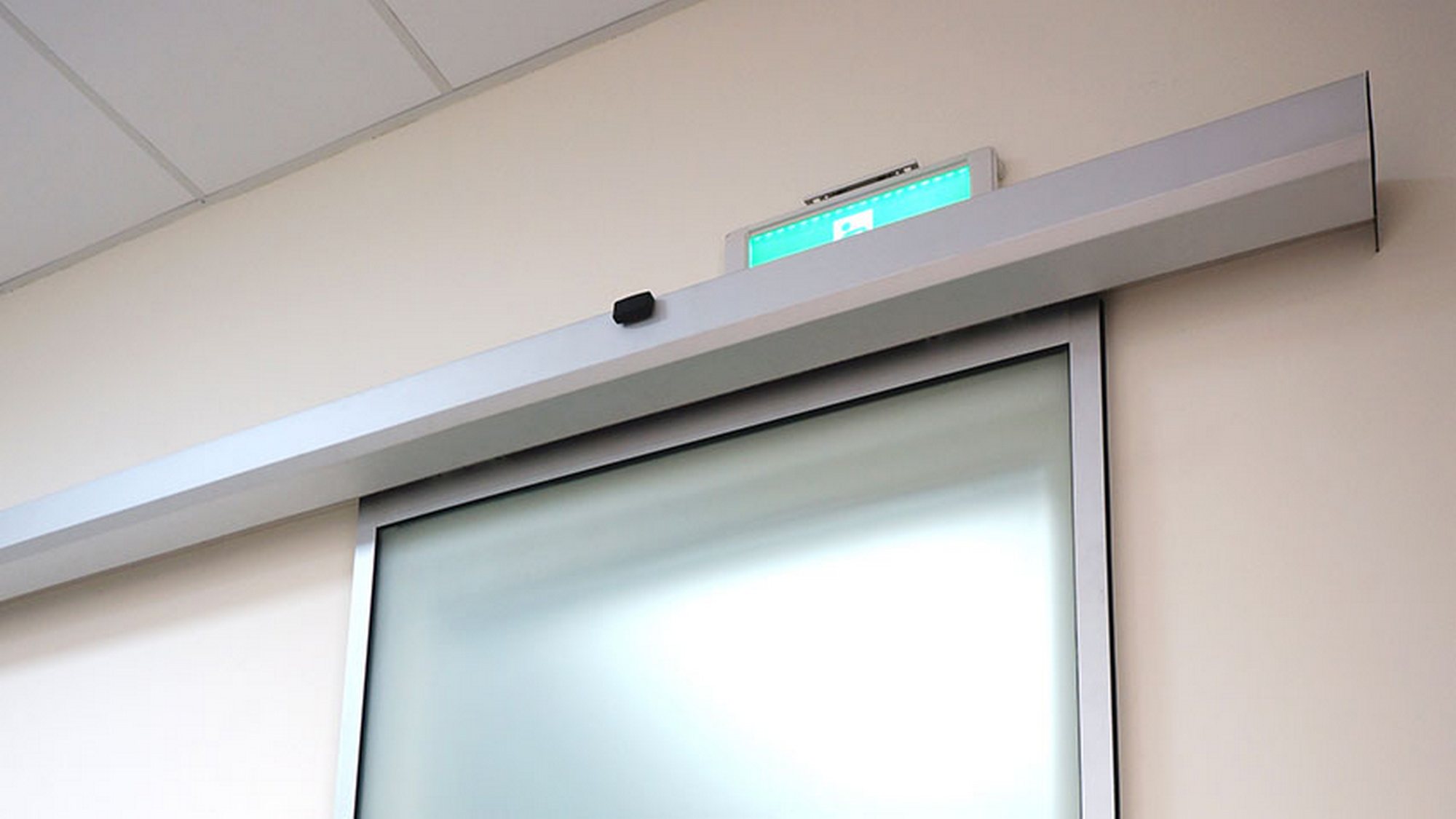

VIDEO

歐式自動門

INFORMATION

WNAT TO KNOW MORE ABOUT EURO TYPE AUTOMATIC SLIDING DOOR ?

Here is the relevant file of Euro Type, welcome to download it!

Euro Type Catalog     Download
