Products

LK-B300 Series LK-M Series

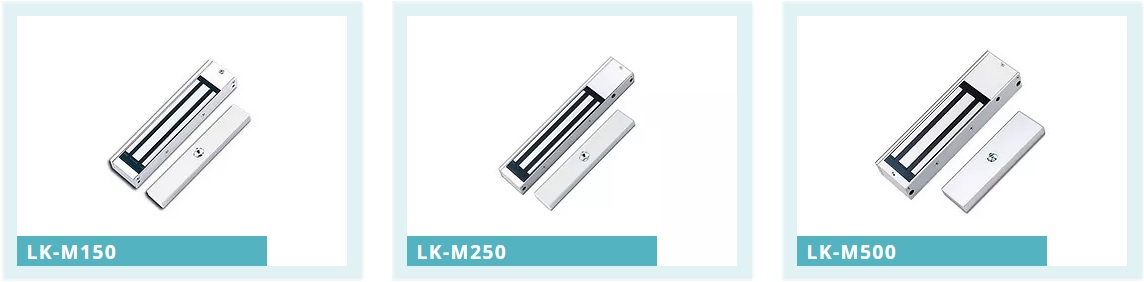

LK-M Series Electromagnetic Lock




  • LK-M150

    Power

    DC 12V / DC 24V

    Current consumption

    370 mA @ 12VDC
    180 mA @ 24VDC

    Suction

    300LBS

    Dimensions

    166 mm × 38.5 mm × 21 mm (lock)
    130 mm × 32 mm × 10 mm (magnet)

  • LK-M250

    Power

    DC 12V / DC 24V

    Current consumption

    500 mA @ 12VDC
    250 mA @ 24VDC

    ​Suction

    600LBS

    Dimensions

    251 mm × 47 mm × 25 mm (lock)
    185 mm × 38 mm × 12 mm (magnet)

  • LK-M500

    Power

    DC 12V / DC 24V

    Current consumption

    500 mA @ 12VDC
    250 mA @ 24VDC

    ​Suction

    1200LBS

    Dimensions

    266 mm × 73.5 mm × 40 mm (lock)
    185 mm × 61 mm × 16 mm (magnet)

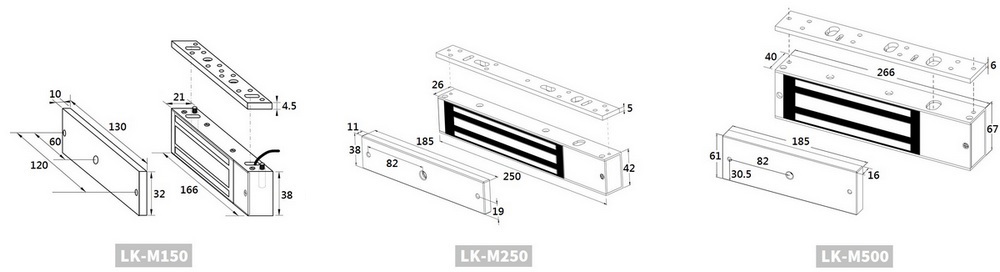

DIMENSIONS

INFORMATION
