Automatic Sliding Door

Metal automatic door

TRONCO CS1000 automatic sliding door system is developed by ourselves and produced by consumer demand. TRONCO has accumulated more than 10 years of automatic door experience in development, manufacturing and production. TRONCO CS1000 series pass through multi-national safety standards and market in Europe and America for many years.

TRONCO CS1000 door action is setting by microcomputer controller and can support access control system. The controller included a variety of emergency setting to the users’ security checks. CS1000 using a DC brushless DC motor and can use more than one million times, the opening and closing operation accurate and correct. It is quiet, energy saving and environmental friendly. With the low resistance transmission, the door can operate more gracefully and smoothly. TRONCO CS1000 series turn all the components into modular and have LED display to show status when it malfunction. It is more easy and convenient for you on installation and maintenance to detect it visually.

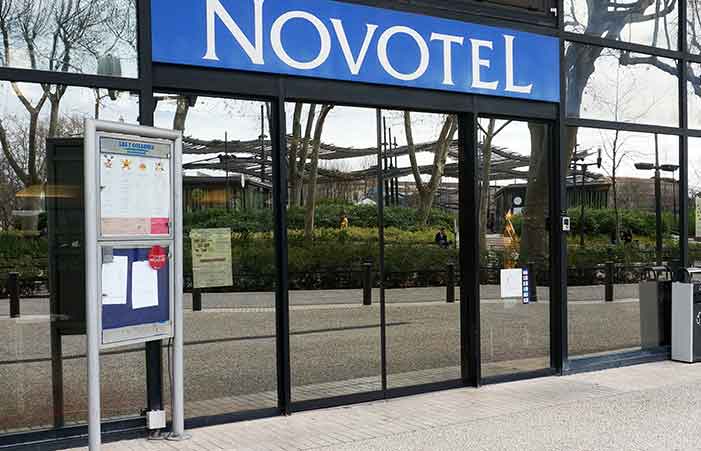

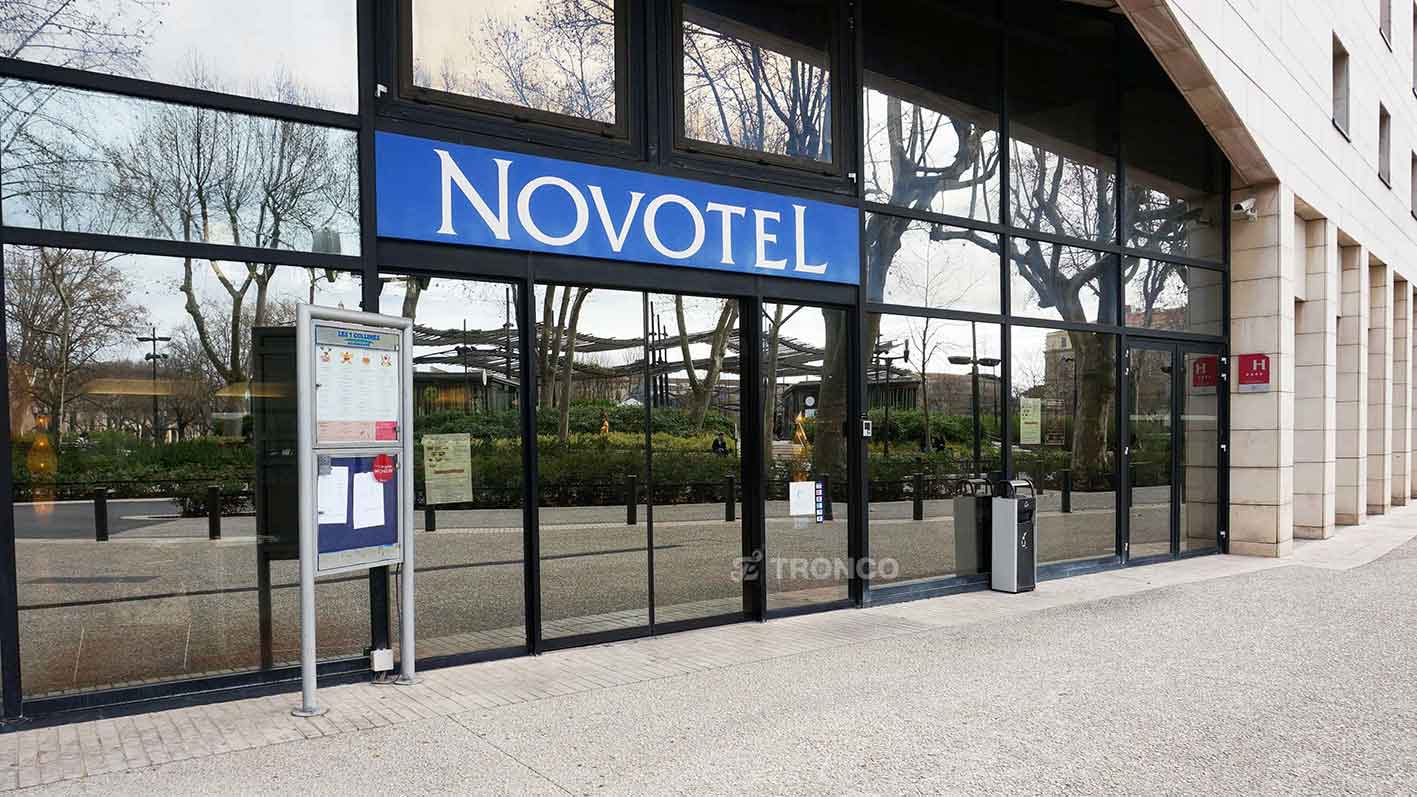

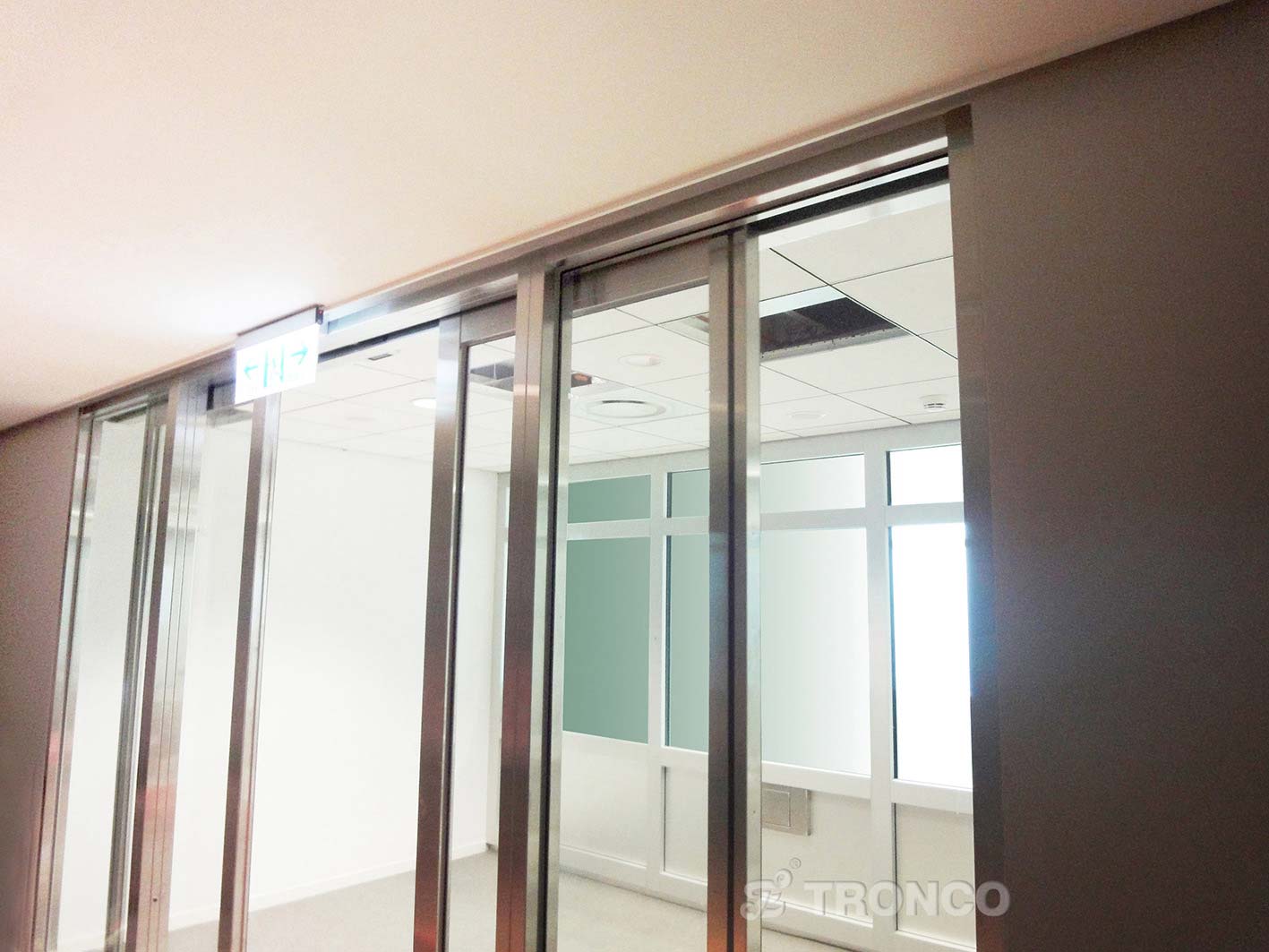

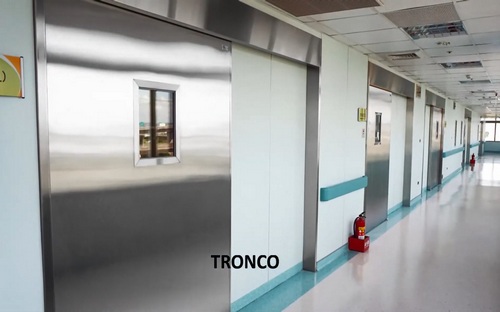

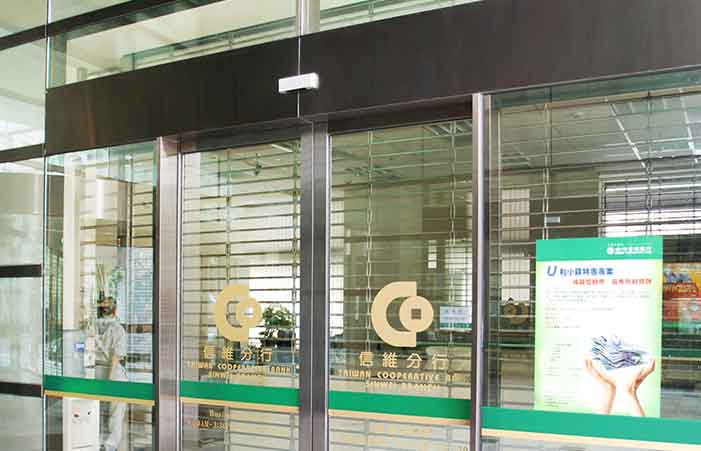

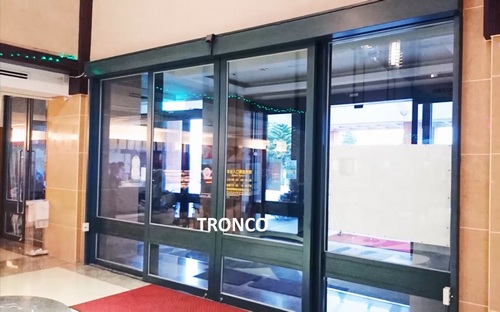

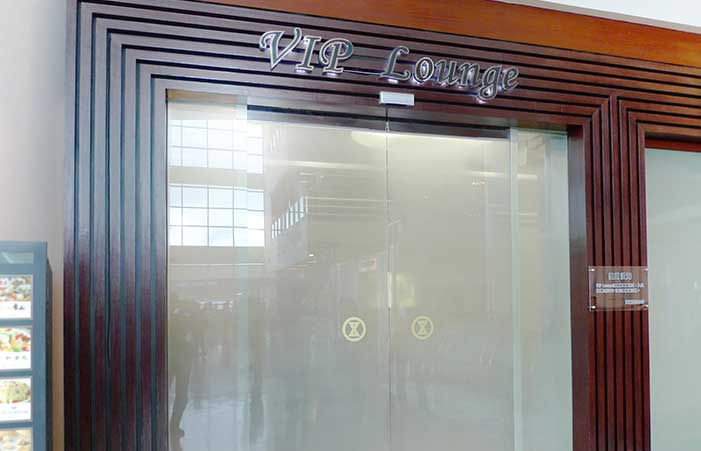

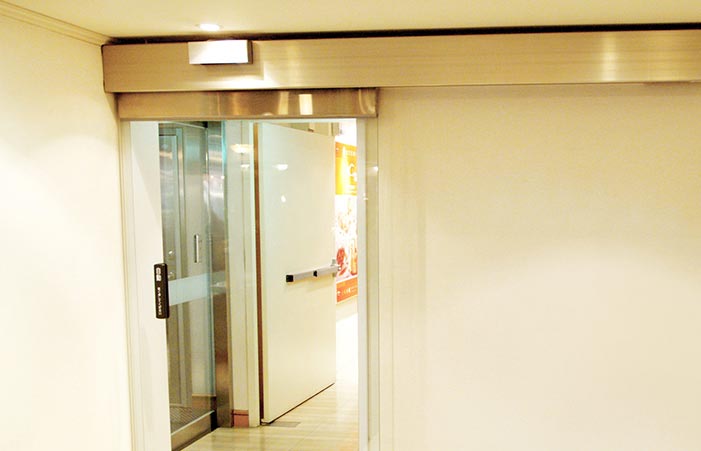

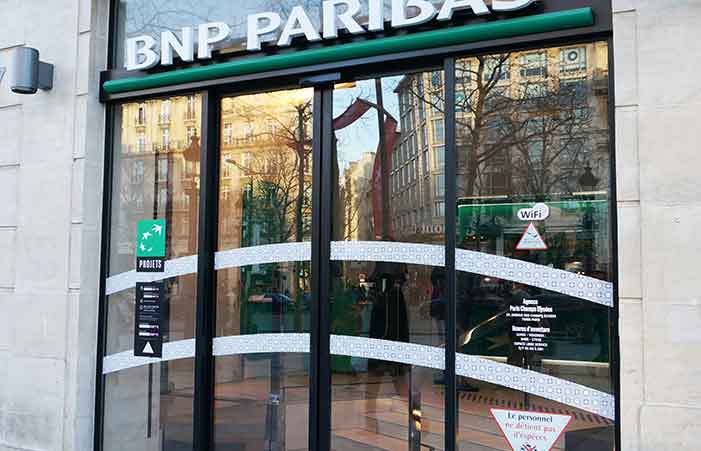

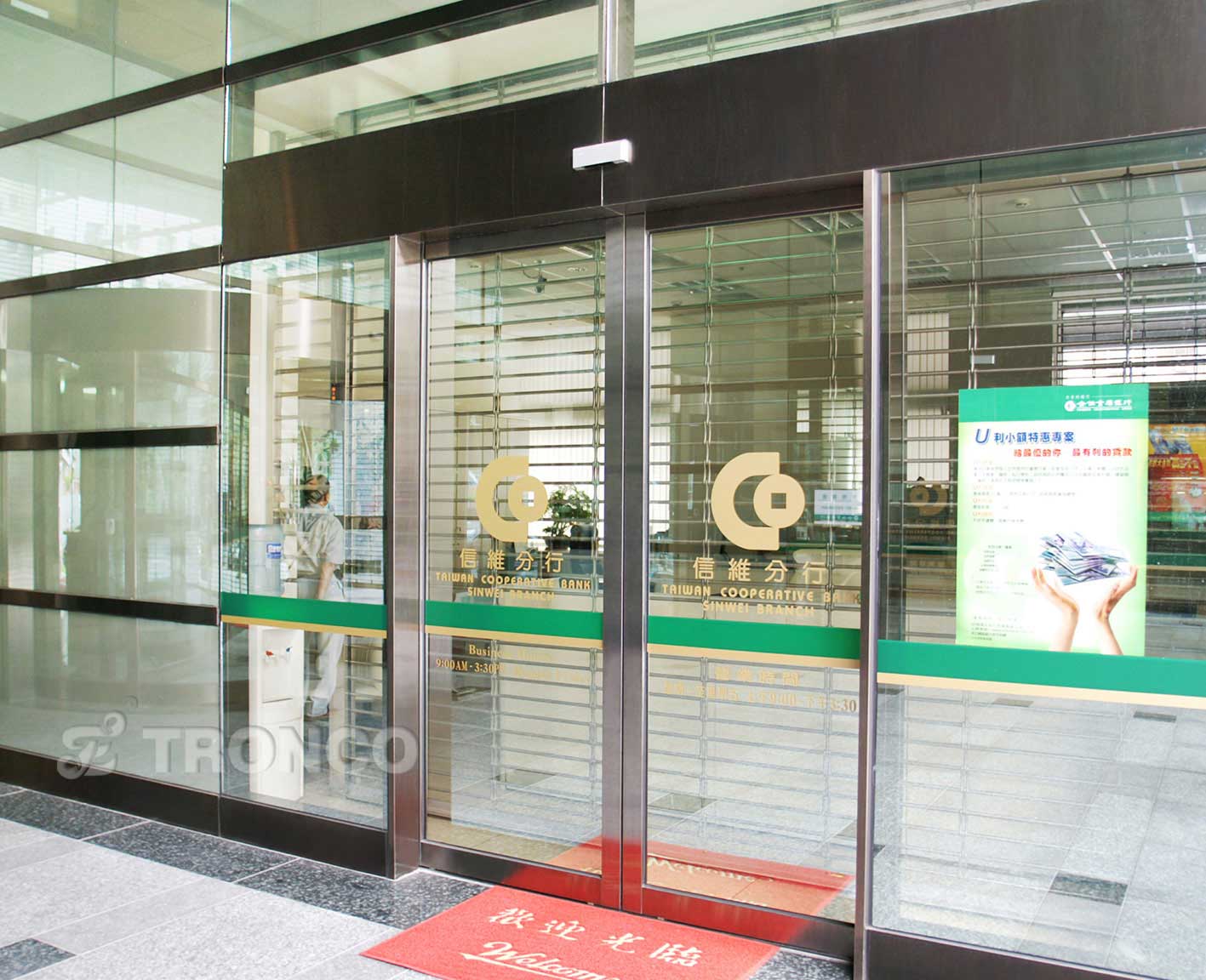

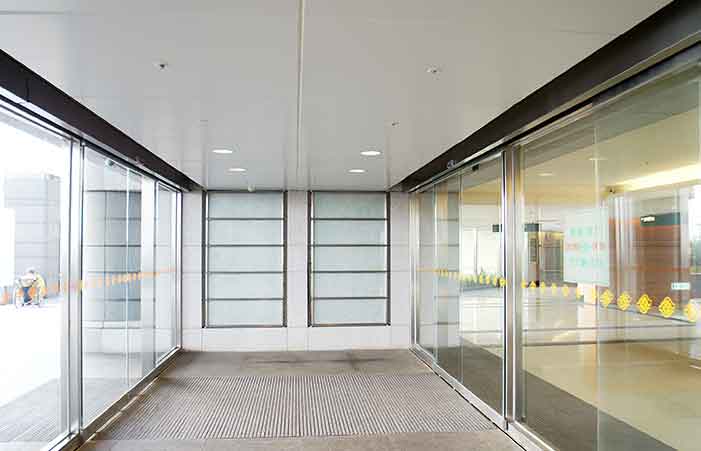

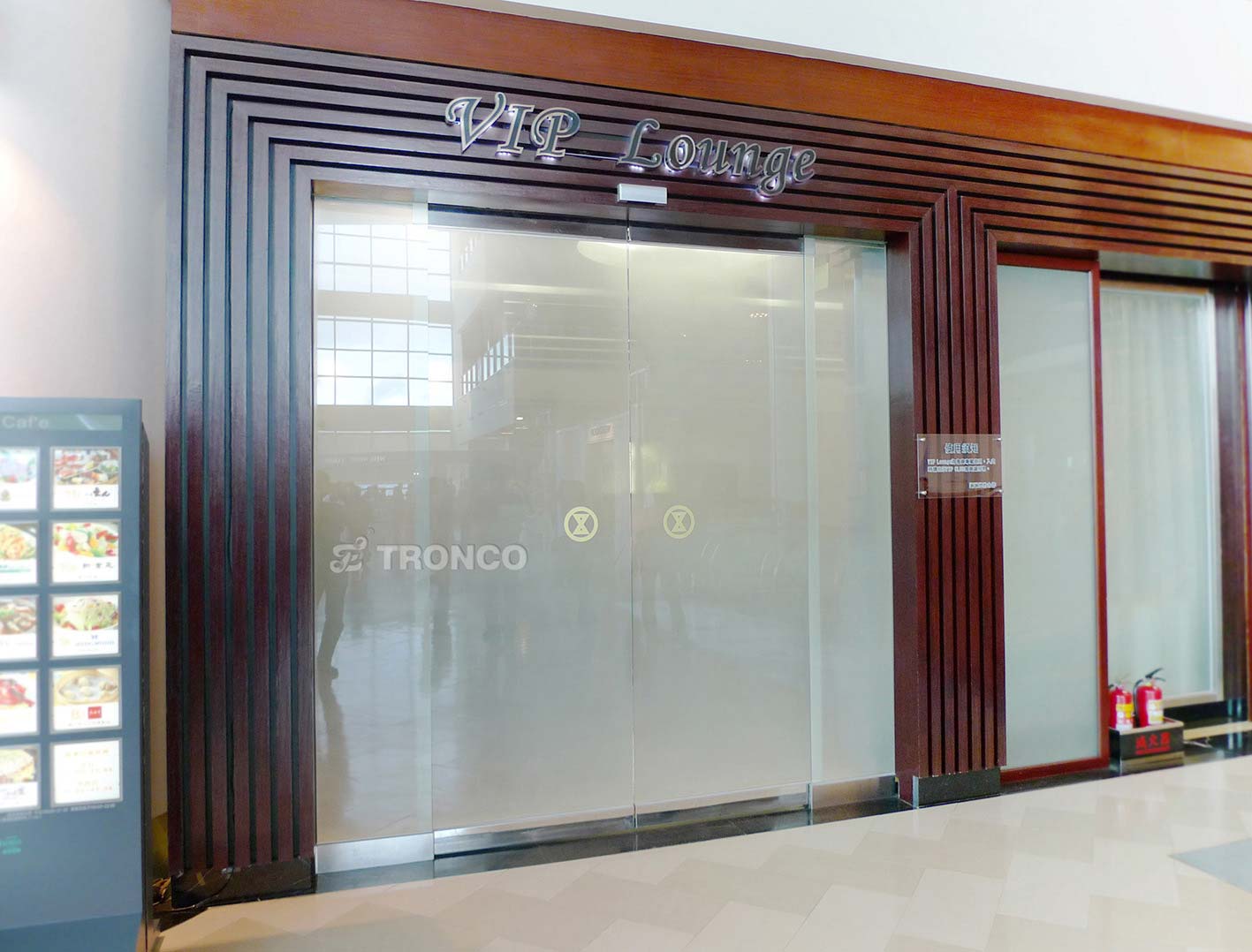

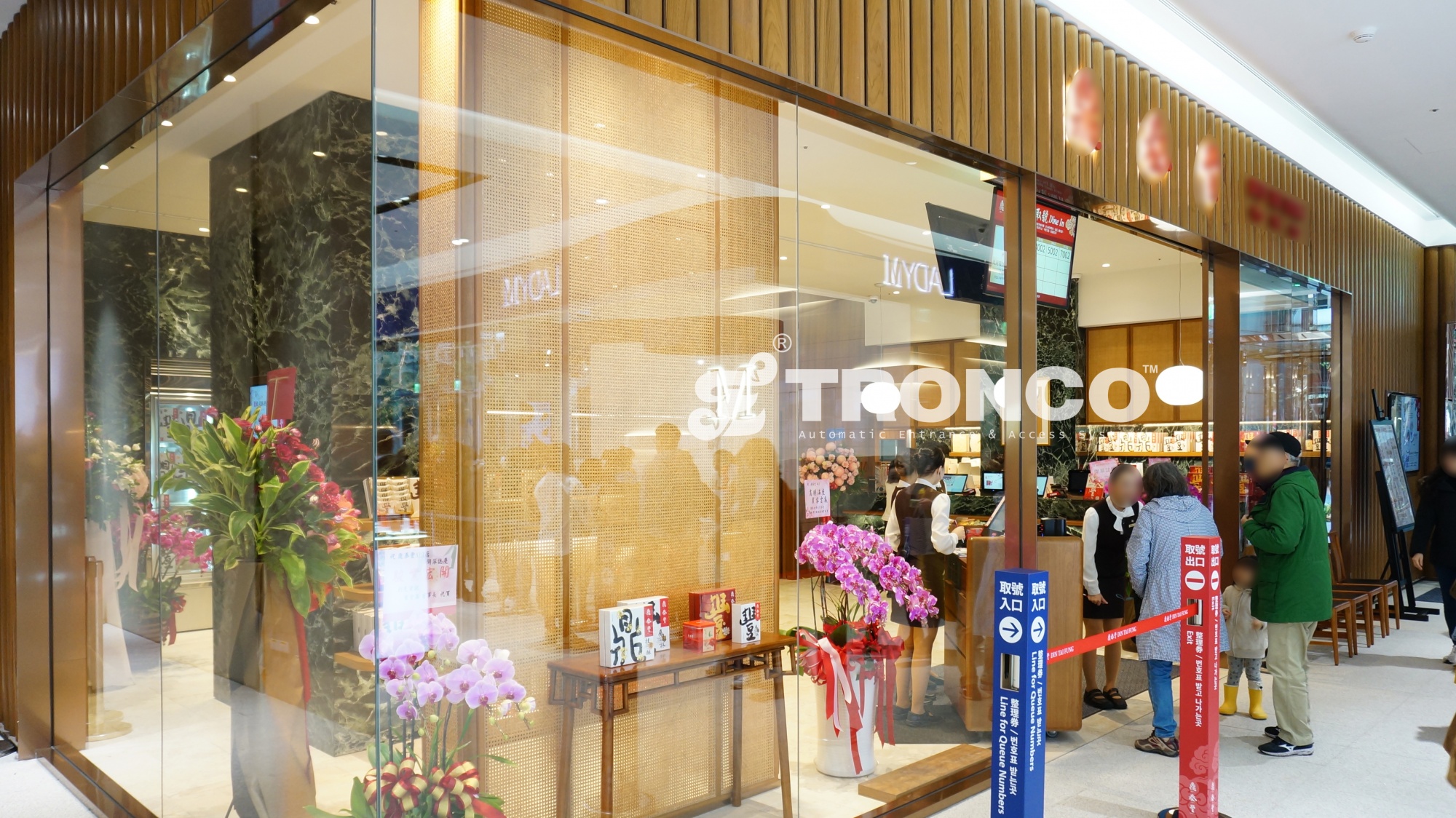

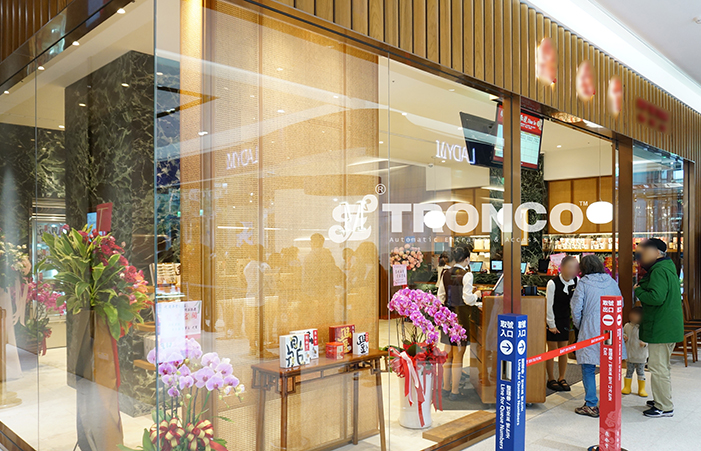

TRONCO CS1000 automatic sliding door system has been applied to garage gates, hospital radiation-prevent doors, warehouse door, accessible space, security doors, commercial buildings, stores, ships ... and other places. It earns good comment from all the users.



Wisdom and stable multifunction system, high compatibility expansion

TRONCO CS1000 use microcomputer controller. The system can be self-detection, self-protection to determine and adjust the most suitable of the operating mode. It also can maintain the stability of the system in case of emergency can also be effective to help escape. In addition, CS1000 allows users more flexibility in the use. Depending on the users’ needs, the user can expand various sensors, electronic locks, access control systems ... etc. It is an easy to expand, high compatibility product.

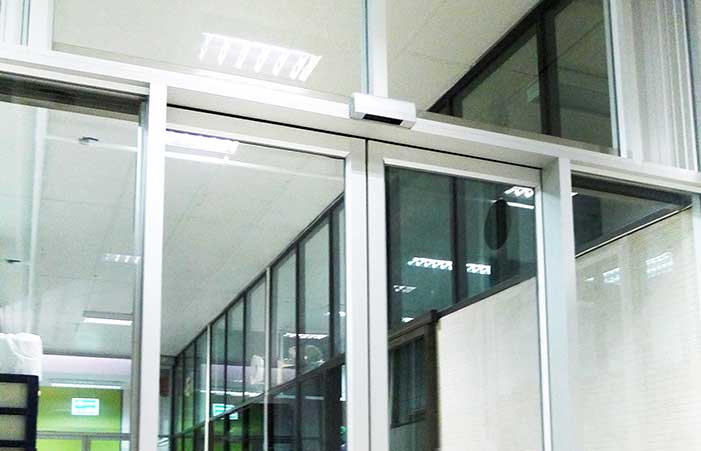

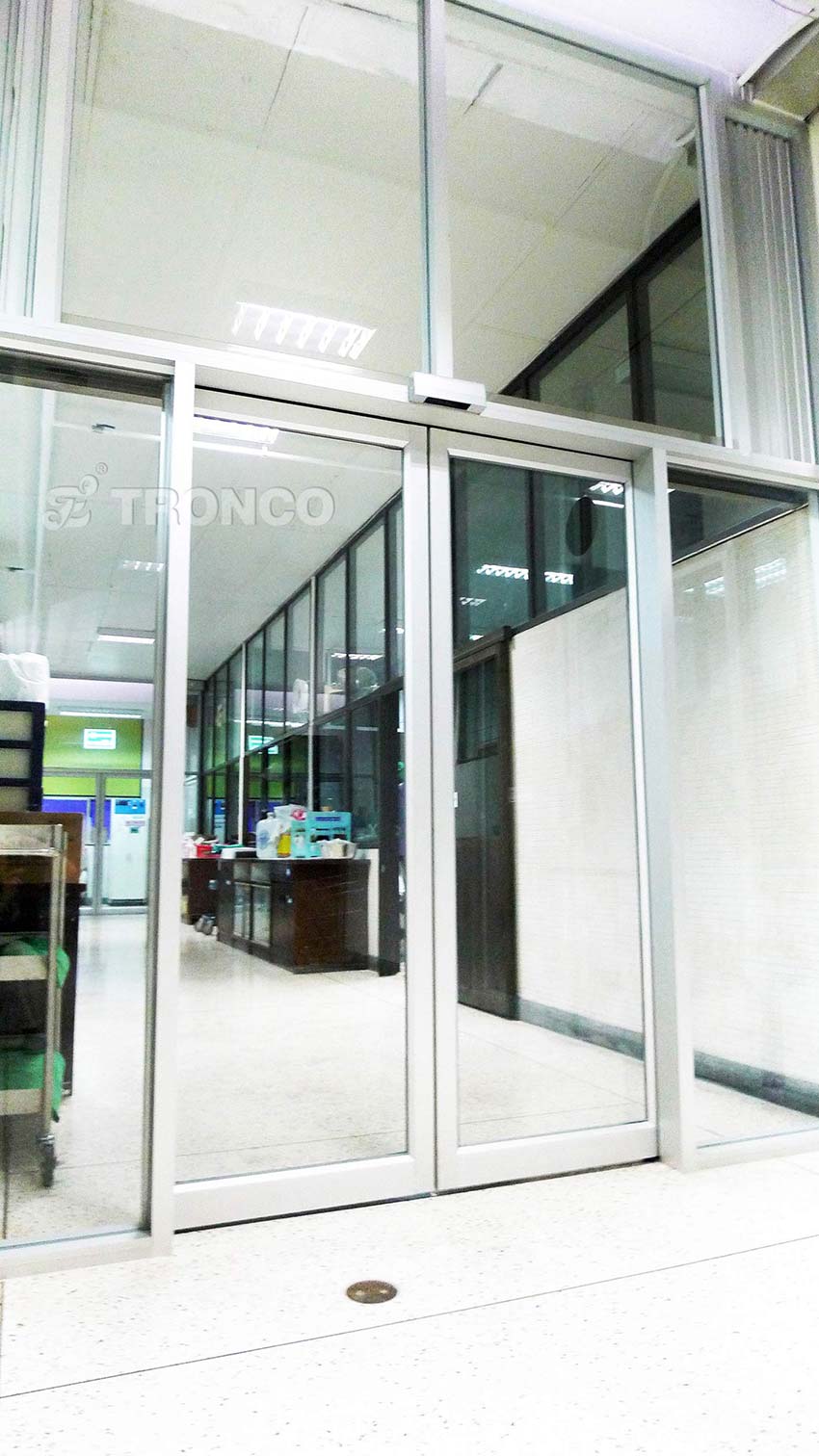

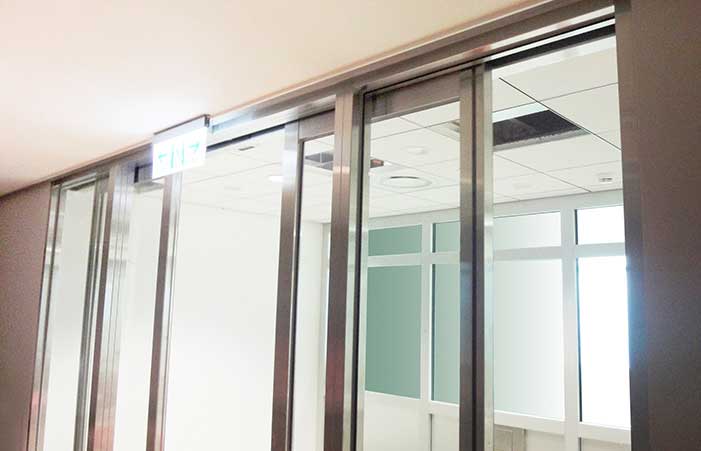

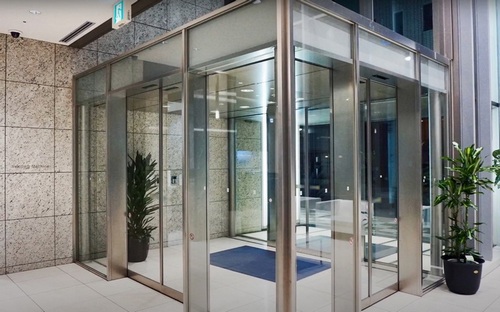

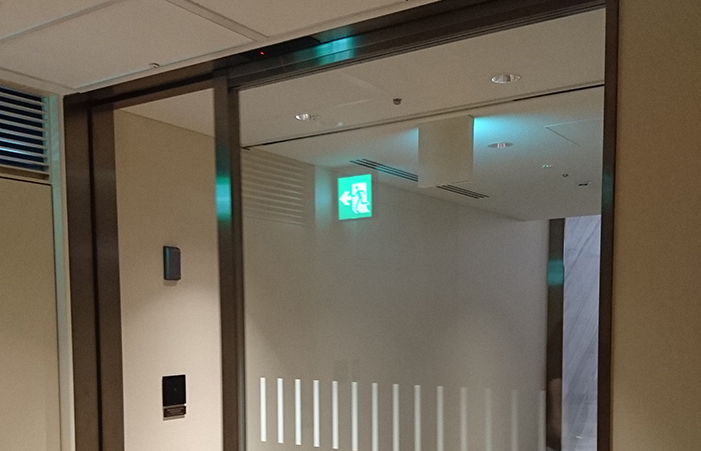

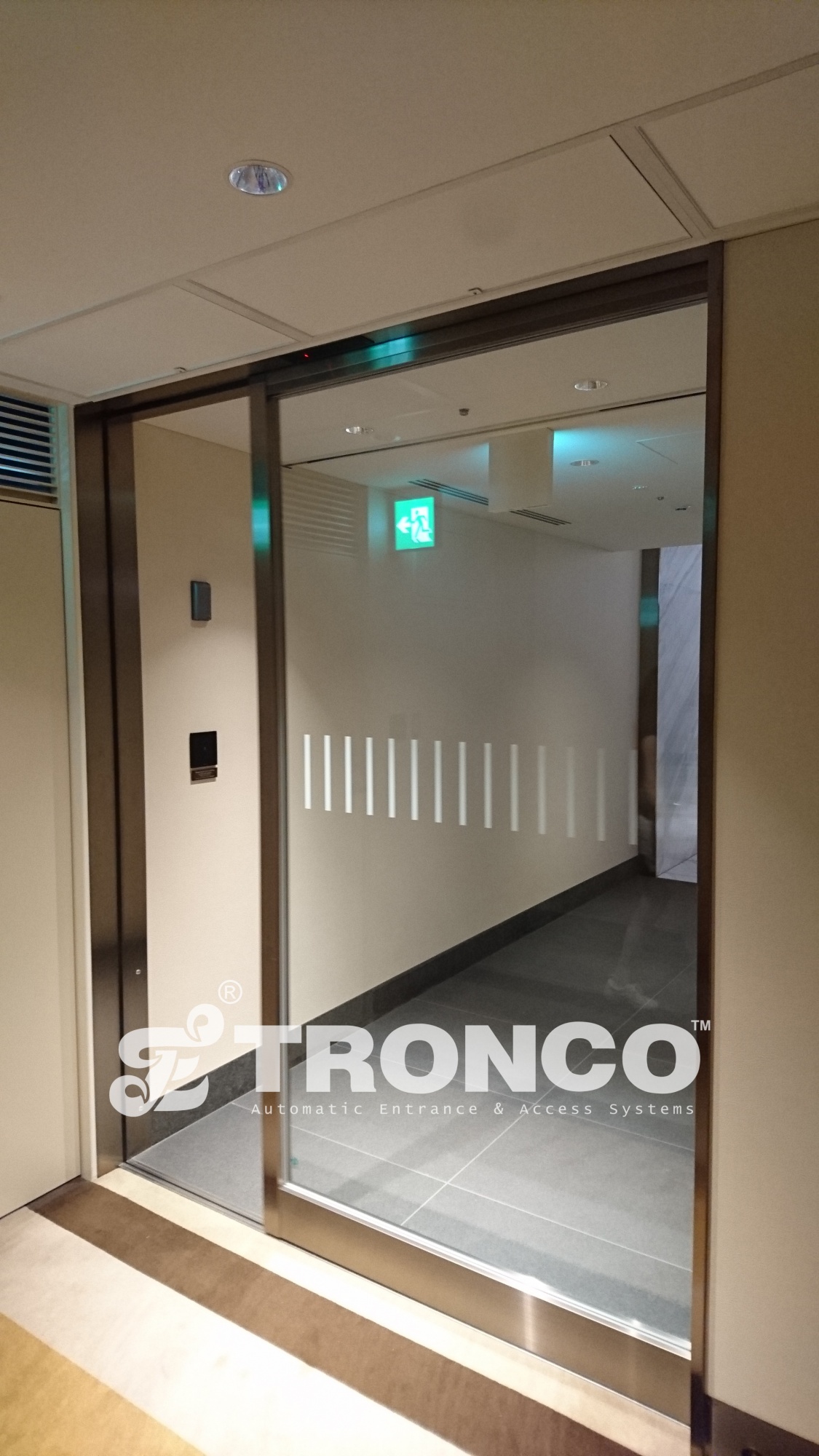

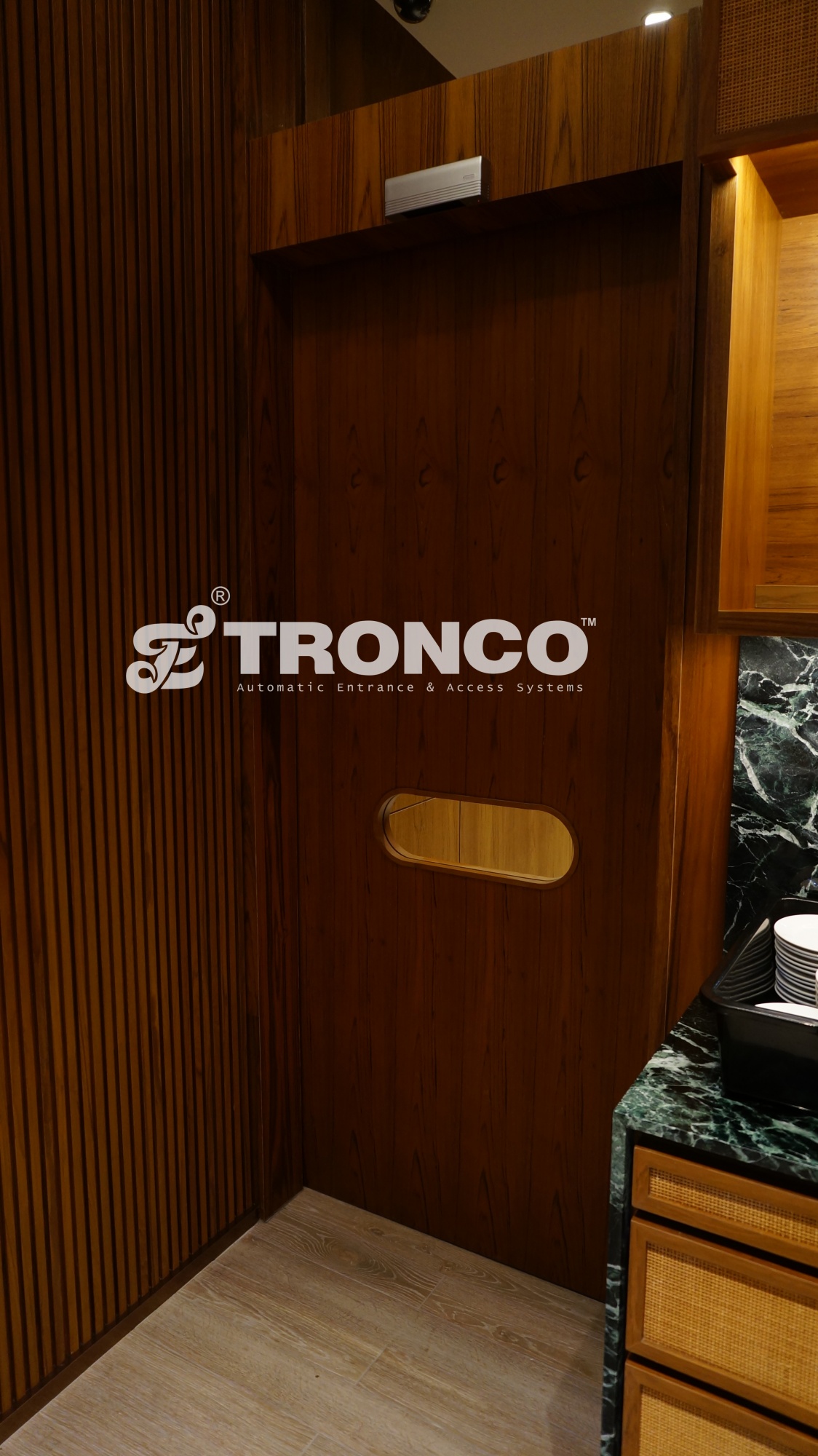

automatic door for office

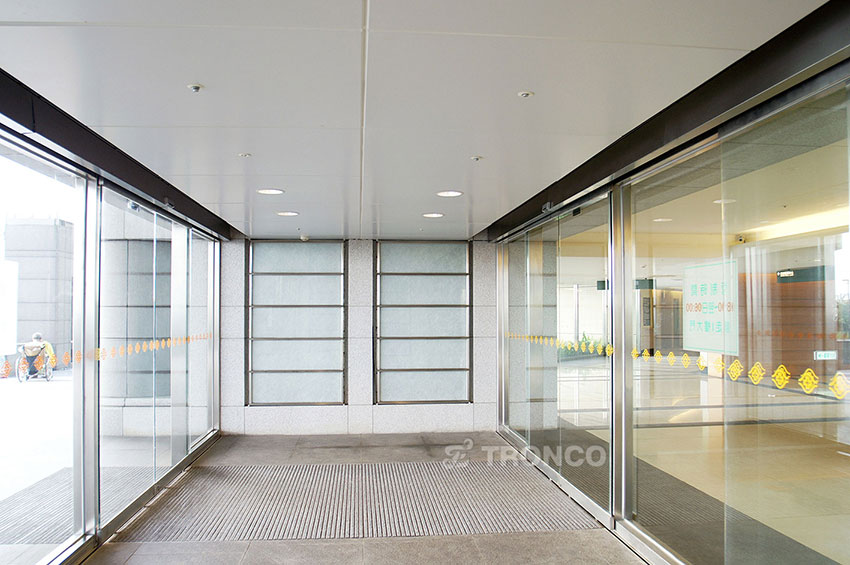

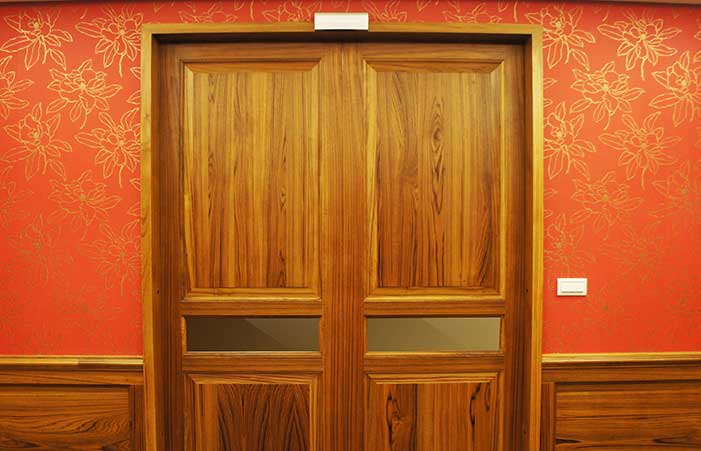

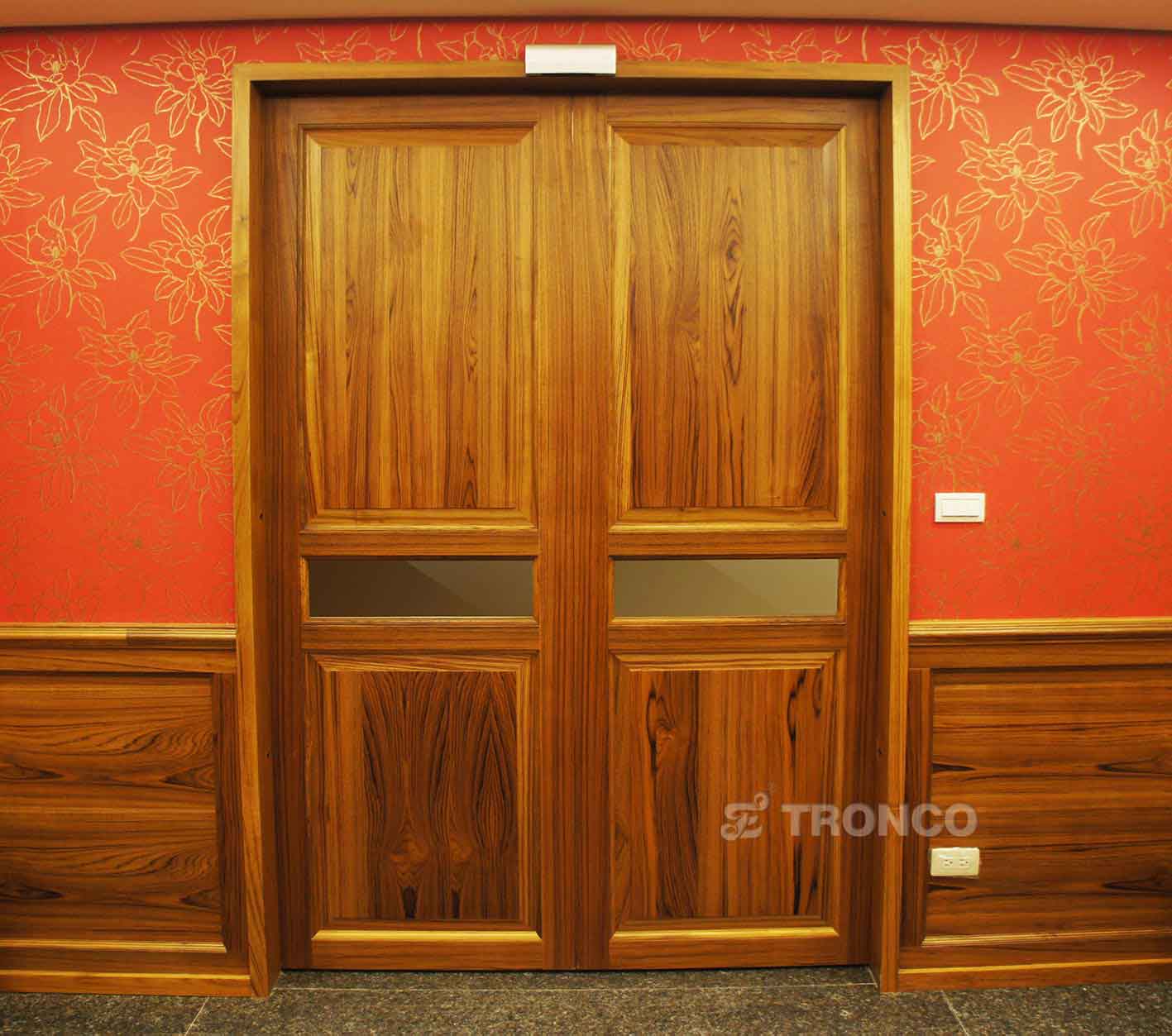

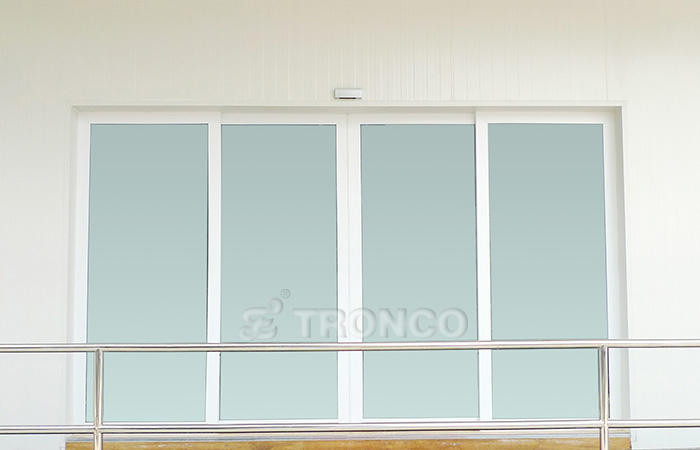

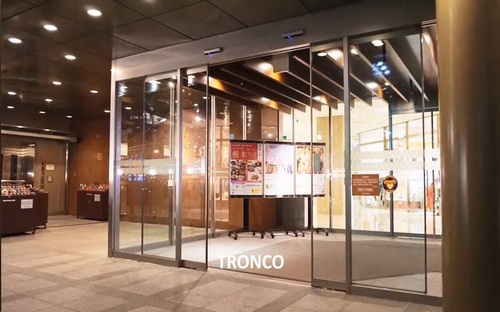

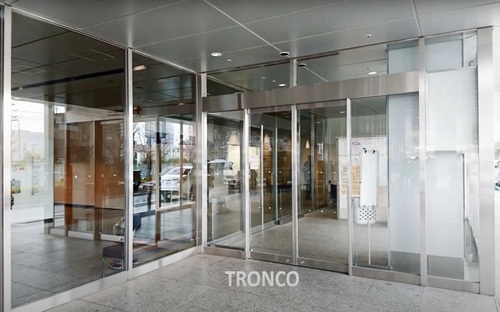

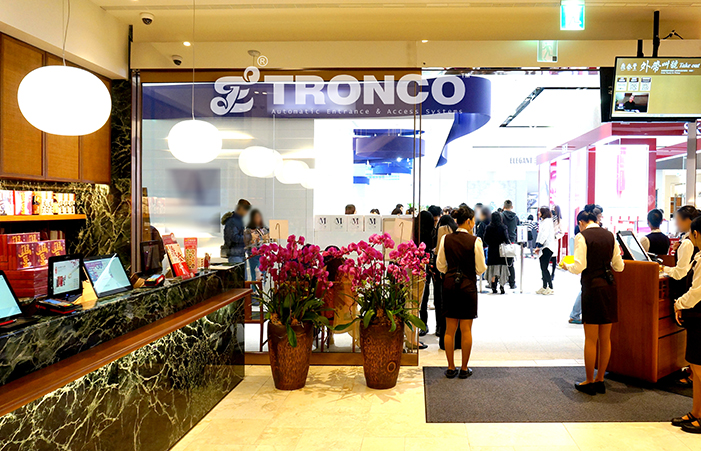

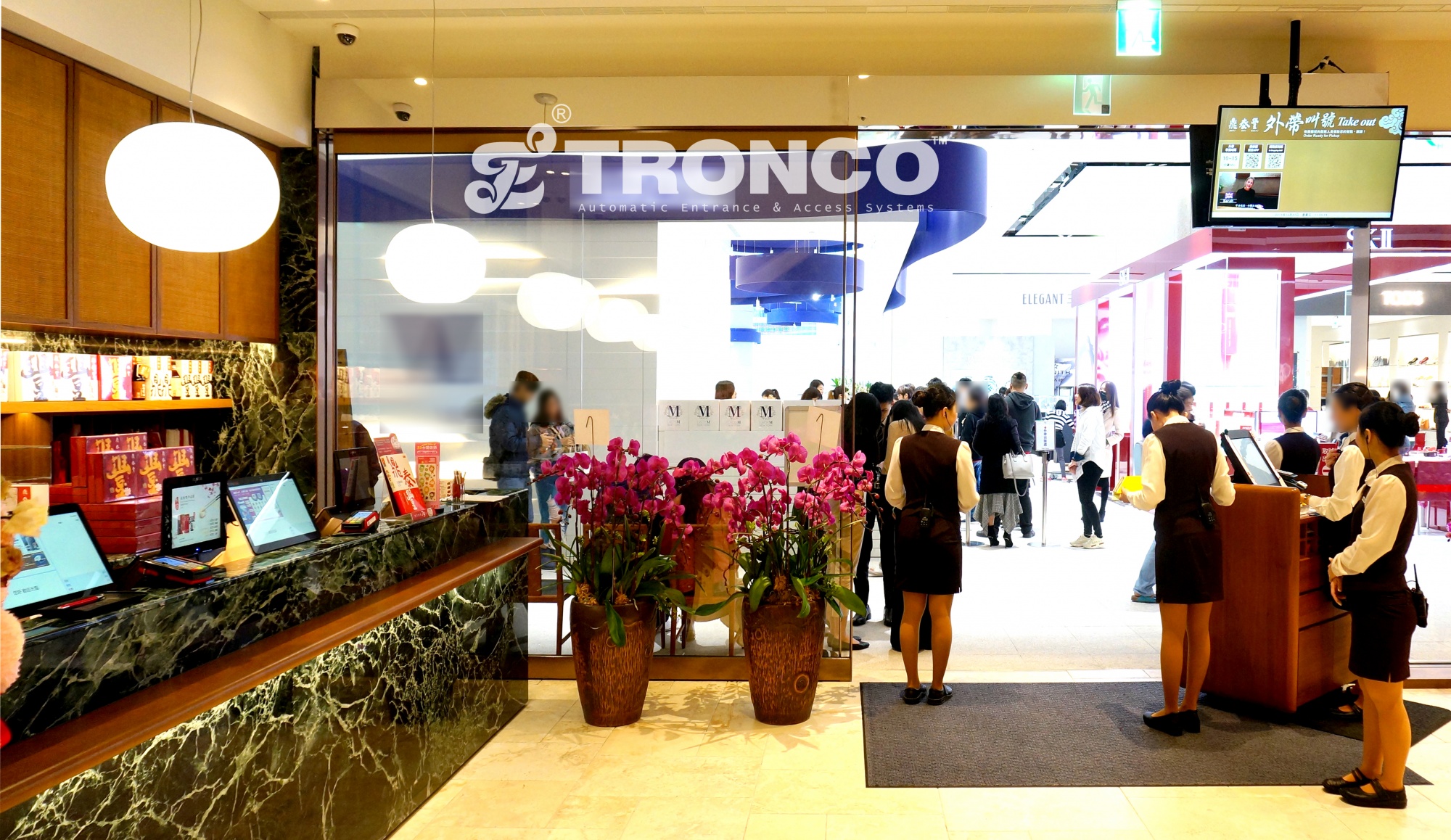

bi-parting automatic door

Energy saving and environmental protection

We use the high efficiency brushless DC motor which is produced on our own and save the energy by circuit design. High-efficiency motors can reduce unnecessary energy consumption in the conversion process. Allowing you to switch on and off the automatic door for a month, but only pay bill which just can buy a bottle of Coke. You can make life more convenient without consuming energy.

An international certification, the quality of safe and secure

Besides to the intentions of thinking about how to give consumers a better experience, TRONCO also did not forget to provide a guarantee on the safety of consumers. TRONCO pass the TUV Rheinland of ISO 9001: 2008 quality management system certification in 2008 and CE certificate, and then with more than 25 years TRONCO automatic door manufacture, installation of experience in product design with crash safety, emergency closing fast locked function. TRONCO is confident to provide customers with high quality products but also safe.

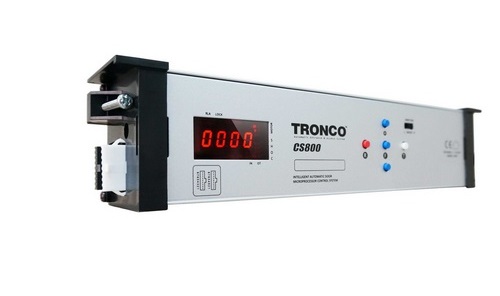

Smart microcomputer controller

● Universal voltage input: AC 90-240 V
● DC 12/24 V output for peripheral devices
● Multi-function settings
   the speed at which the door(s) open(s)/close(s)
   the speed of the opening/closing door(s) toward the destination
   the distance at which the opening/closing door(s) start(s) to slow down
   the force with which the door(s) shift(s) direction
   the tightness of the closed door(s)
   the waiting time before the door(s) close(s), adjusted by usage frequency
   the sensitivity of the door(s) to move backward in response to an obstacle

● LED monitor showing the statuses of the doors
   the position where the door(s) open(s)/close(s)
   the speed at which the door(s) open(s)/close(s)
   indicator light for the motor
   indicator lights for the sensor and safety devices
   indicator lights for half-open door, electric lock, locked door, relay, etc







自動門直流無刷馬達



Efficient permanent-magnet brushless DC servo motor

● The motor doesn't become hot even after continuous operation
● With the aid of the serrated timing belt, the operation is effective
● The running process is smooth and quiet
● The lifespan is long because of the sturdiness and durability





Rail of aluminum alloy

● Heavy-duty one-piece aluminum alloy withstands wear and tear
● The rail is so designed that it resists great pressure and has been patented
● The V-shaped groove enables the screws to be securely fastened
● The integration of our rails into other automatic-door systems is viable

自動門鋁合金軌道





自動門控制器線材

Versatile wire connector

● Wiring peripheral devices quickly
● An all-in-one connector for
   DC 12 V
   DC 24 V
   the relay
   the electric lock
   inside door opening signal
   outside door opening signal
   safety beams
   one-way access signal
   locked-door signal
   half-open door signal



CS-PS51 mode selector (optional)

● Attractive five-mode dial
● Easy to use with simple pictures
● Able to meet any needs of different applications
   Normal mode:People can get in and out
   Half-open mode:Door doesn't entirely open
   Always-open mode:Door remains open
   Closed-and-locked mode:Door instantly closes and locks
   One-way mode:Only entry or exit is allowed
● Size:70 mm*70 mm

自動門模式選擇器



CS-PS5D mode selector (optional)

● LED glass touch panel
● Easy to use with simple pictures
● Able to meet any needs of different applications
   Normal mode:People can get in and out
   Half-open mode:Door doesn't entirely open
   Always-open mode:Door remains open
   Closed-and-locked mode:Door instantly closes and locks
   One-way mode:Only entry or exit is allowed
● Size:123 mm*70 mm

TRONCO CS1000 series of products design from user view no matter a functional design, characteristic application, installation and construction. It is hoped that users can have a pleasant experience. Therefore, CS1000 definitely should be taken into your consideration.

  • CS 1000-L1

    Door Weight

    90kg x 1 ( Single )

    75kg x 2 ( Bi-parting )

    Door Fitting Size

    Width: 700~1500mm↓

    Height: 1900~2400mm↓

    Min&Max Door Fitting Size

    Max. Width: 5000mm↓ Height: 3500mm↓

    Min. Width: 450mm↑ Height: Up to exact design-for special dimensions, please contact with the commercial agent.

    Tracking

    400~12000mm ( 24000mm Bi-parting )

    Closing and Opening Speed

    150~650 mm/sec ( Adjustable )

    Keep Open Time

    1~30 sec

    Manual Opening Power

    1.5~3kg ( Single )

    2~4kg ( Bi-parting )

    Singal Function

    7 kinds

    Belt

    Toothed Belt

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    75W

    100W ( peak )

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 155mm x D 112mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

    Pulley System

    Single / Double Pulley

    Gear Material

    Powder Metallurgy

  • CS 1000-L2

    Door Weight

    150kg x 1 ( Single )

    120kg x 2 ( Bi-parting )

    Door Fitting Size

    Width: 700~1500mm↓

    Height: 1900~2400mm↓

    Min&Max Door Fitting Size

    Max. Width: 5000mm↓ Height: 3500mm↓

    Min. Width: 450mm↑ Height: Up to exact design-for special dimensions, please contact with the commercial agent.

    Tracking

    400~12000mm ( 24000mm Bi-parting )

    Closing and Opening Speed

    150~650 mm/sec ( Adjustable )

    Keep Open Time

    1~30 sec

    Manual Opening Power

    1.5~3kg ( Single )

    2~4kg ( Bi-parting )

    Singal Function

    7 kinds

    Belt

    Toothed Belt

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    75W

    100W ( peak )

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 155mm x D 112mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

    Pulley System

    Single / Double Pulley

    Gear Material

    Powder Metallurgy

  • CS 1000-L3

    Door Weight

    250kg x 1 ( Single )

    200kg x 2 ( Bi-parting )

    Door Fitting Size

    W: 700~1500mm↓

    H:1900~2400mm↓

    Min&Max Door Fitting Size

    (Max) Width: 5000mm↓ Height: 3500mm↓
    (Min) Width: 450mm↑ Height:  Up to exact design-for special dimensions, please contact with the commercial agent.

    Tracking

    400~12000mm ( 24000mm Bi-parting )

    Closing and Opening Speed

    150~450 mm/sec ( Adjustable )

    Keep Open Time

    1~30 sec

    Manual Opening Power

    1.5~3kg ( Single )

    2~4kg ( Bi-parting )

    Singal Function

    7 kinds

    Belt

    Toothed Belt

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    250W (P.F.C)

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 155mm x D 112mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

    Pulley System

    Single / Double Pulley

    Gear Material

    Powder Metallurgy

  • CS 1000-L4

    Door Weight

    400kg~700kg

    Door Fitting Size

    Please refer to CS1000-L1~L3 and confirm with the commercial agent(manufacturer) upon manufacturing and using

    Min&Max Door Fitting Size

    Please refer to CS1000-L1~L3 and confirm with the commercial agent(manufacturer) upon manufacturing and using

    Tracking

    400~12000mm ( 24000mm Bi-parting )

    Closing and Opening Speed

    150~450 mm/sec ( Adjustable )

    Keep Open Time

    1~30 sec

    Manual Opening Power

    1.5~3kg ( Single )

    2~4kg ( Bi-parting )

    Singal Function

    7 kinds

    Belt

    Toothed Belt

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    250W (P.F.C)

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 220mm x D 112mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

    Pulley System

    Single / Double Pulley

    Gear Material

    Powder Metallurgy

  • CS 1000-L5

    Door Weight

    700kg~1000kg

    Door Fitting Size

    Please refer to CS1000-L1~L3 and confirm with the commercial agent(manufacturer) upon manufacturing and using

    Min&Max Door Fitting Size

    Please refer to CS1000-L1~L3 and confirm with the commercial agent(manufacturer) upon manufacturing and using

    Tracking

    400~12000mm( 24000mm Bi-parting )

    Closing and Opening Speed

    150~450 mm/sec ( Adjustable )

    Keep Open Time

    1~30 sec

    Manual Opening Power

    1.5~3kg ( Single )

    2~4kg ( Bi-parting )

    Singal Function

    7 kinds

    Belt

    Toothed Belt

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    250W (P.F.C)

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 220mm x D 112mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

    Pulley System

    Single / Double Pulley

    Gear Material

    Powder Metallurgy

Video

automatic sliding door



automatic sliding door

Information

Wnat to know more about CS1000 ?

Here is the relevant file of CS1000, welcome to download it!

CS1000 Catalog           Download
