TS
  • TS

    Door Weight

    80kg x 2 ( Single 2 leaves )

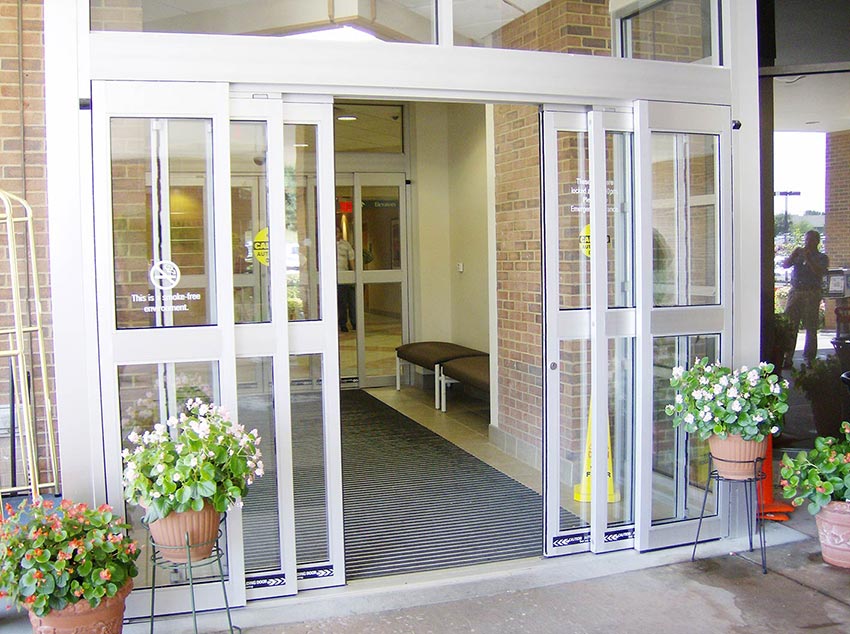

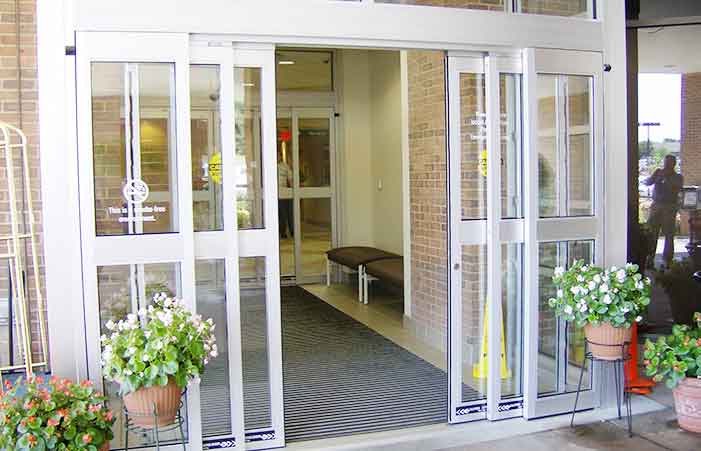

    70kg x 4 ( Bi-parting 4 leaves )

    Door Fitting Size

    W: 1000mm ( Single 2 leaves )

    W: 700mm ( Bi-parting 4 leaves )

    Min.&Max. Door Fitting Size

    W: 4000mm ( Single 2 leaves )

    W: 8000mm ( Bi-parting 4 leaves )

    Tracking

    1000-3000mm ( Single 2 leaves )

    2000-4000mm ( Bi-parting 4 leaves )

    Passage Size

    <3000mm

    Closing and Opening Speed

    100~600 mm/sec ( Adjustable )

    Keep Open Time

    0~30 sec

    Power Supply

    AC100V ~ 240V (50/60Hz)

    Consumption

    100W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    H 250mm x D 150mm

    Ingress Protection

    IP20

    Temp. Range

    -20°C~45°C

Video

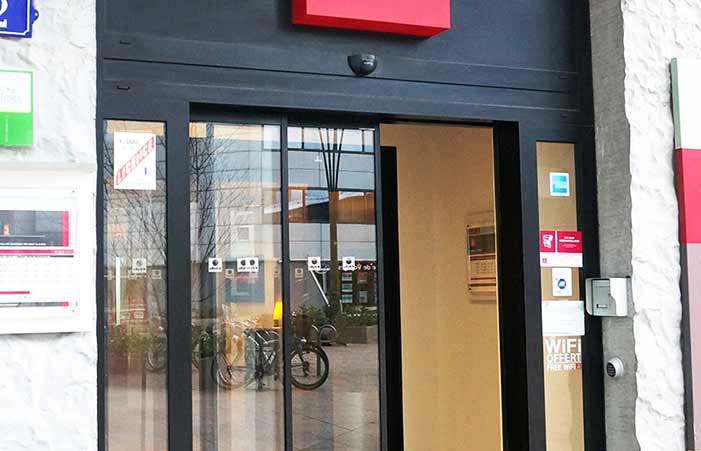

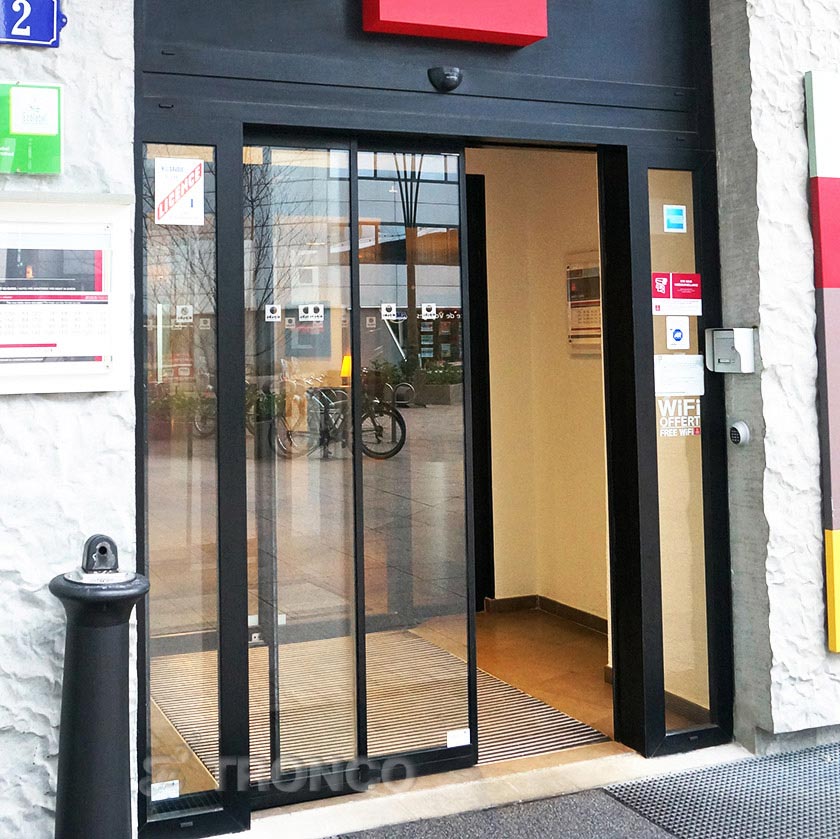

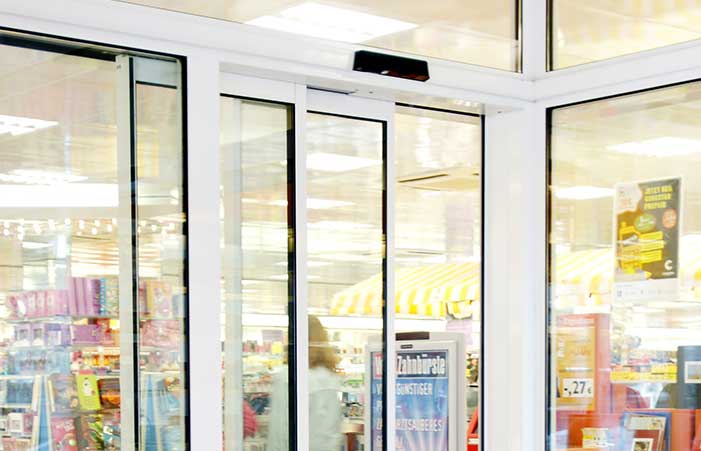

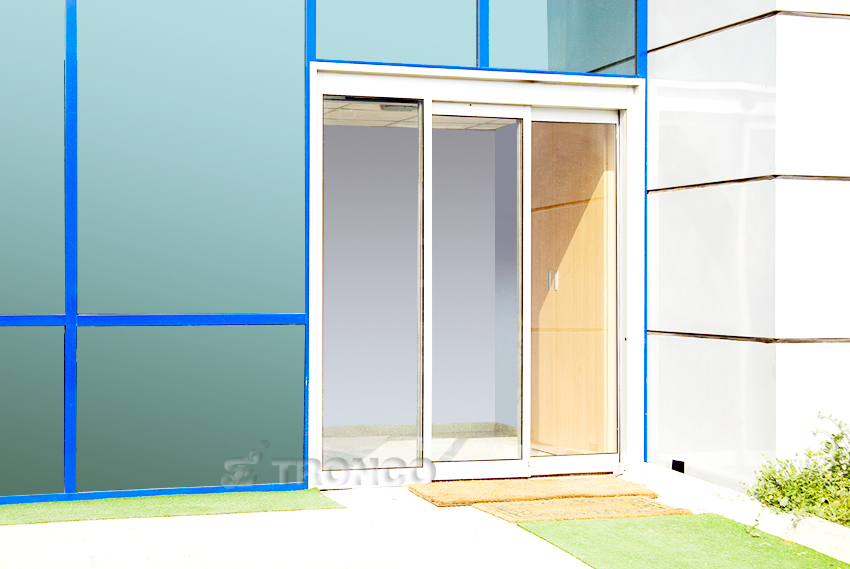

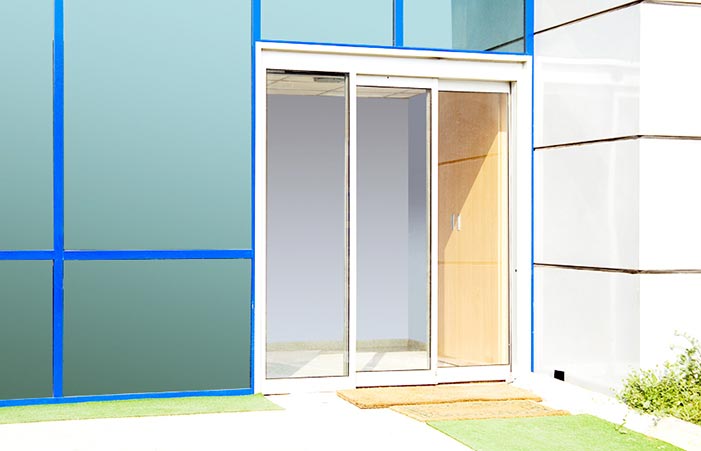

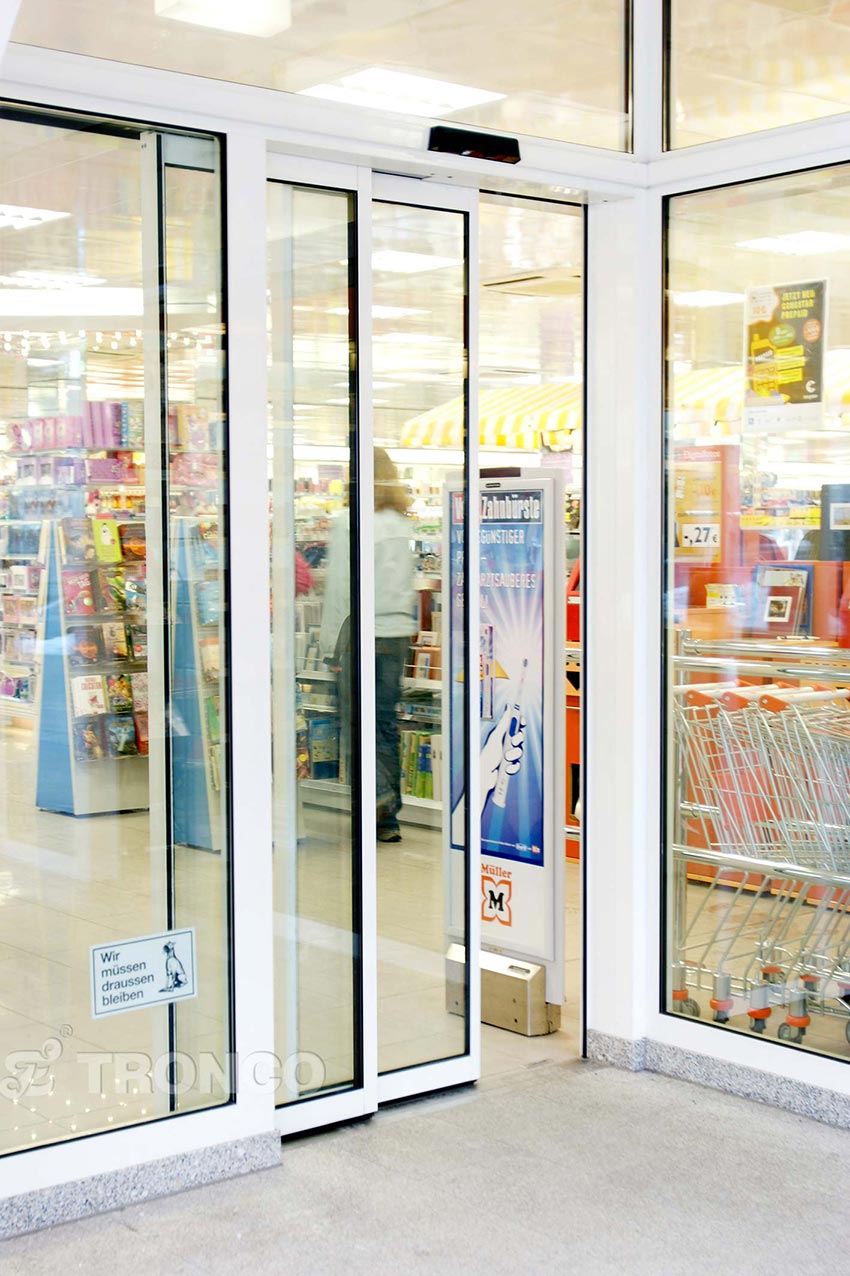

Single Telescopic Sliding door

Information

Want to know more about TS ?

Here is the relevant file of TS, welcome to download it!

TS Catalog           Download
