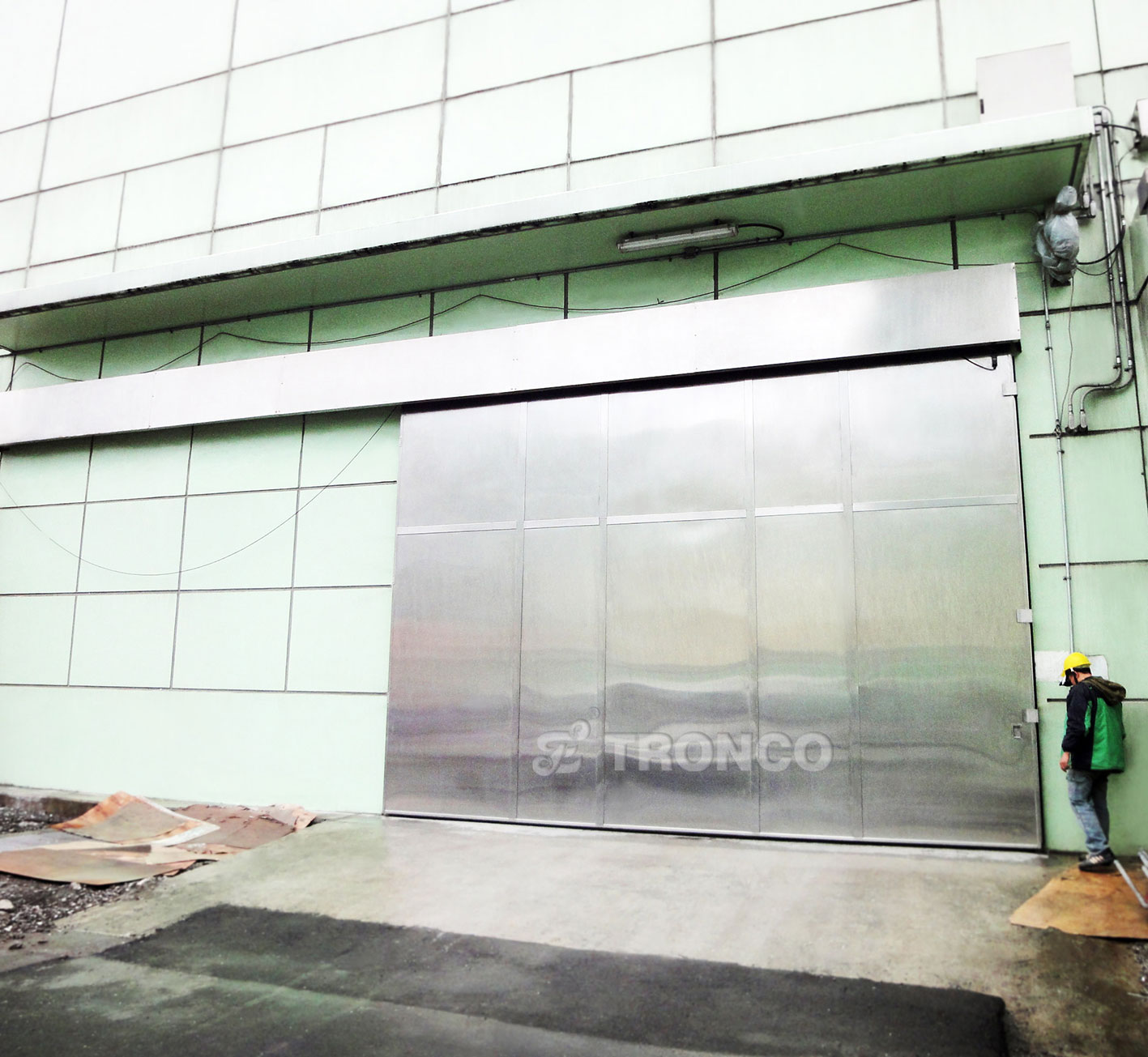

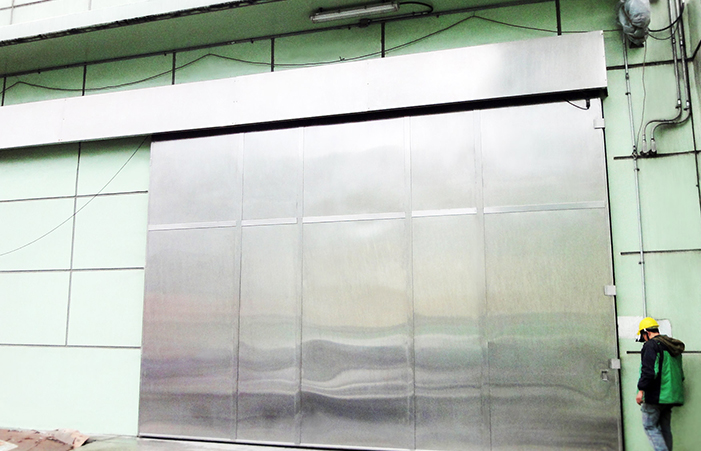

Heavy Duty Automatic Sliding Door

Tonnage automatic sliding door

Tonnage automatic sliding door system is a professional automatic system for special applications, which is usually be used for automatic access system, such as anti-radiation for hospital, unclear and atomic proof, and large-scale stainless steel door and so on. Toonage automatic sliding door system have much stricter standards for power system, control system, drive system and safety, Tronco, who has accumulated many years’ experience on R&D and manufacture in this field, is one of the rare firms that can manufacture tonnage automatic sliding door system and has participated in contactless construction projects, we have won a good reputation in this field.

Tronco HS series tonnage sliding door system ha professional drive system especially designed for tonnage door, which can ensure the stable operation of door. The control system is intelligent and there are various anti-pinch modes available, the related facilities can be installed to add functions according to requirements. The system is equipped with DC brushless motor, which is developed and manufactured ourselves, has the features of heatless, noiseless and efficient. All the parts for system are modular in order to make the installation and maintenance conveniently. All the parameters can be configured according to clients; requirements.



Security, Stability, Versatility

From tonnage automatic doors usage characteristics and properties, TRONCO learned that security and stability are important and indispensable elements for tonnage automatic doors. Therefore, TRONCO developed transmission exclusively for tonnage automatic doors to make the door operates in a stable. In addition, with our thoughtful design, we set aside other wiring systems to expand when the need to expand emergency power supply systems, access control systems ... etc. It can be easily expanded, allowing you to save time and effort.



Intelligent motors, Automatic deceleration

Because of the heavy weight of tonnage door, the acceleration of gravity of door leaf is enormous. If the design is defective, there possibly can be the collision between door leaves and the loss can be caused easily for power transmission system when the brake is not fast enough. This system can make the AI motor speed down to keep the motion of door at steady speed so that to prolong the life-span of it.

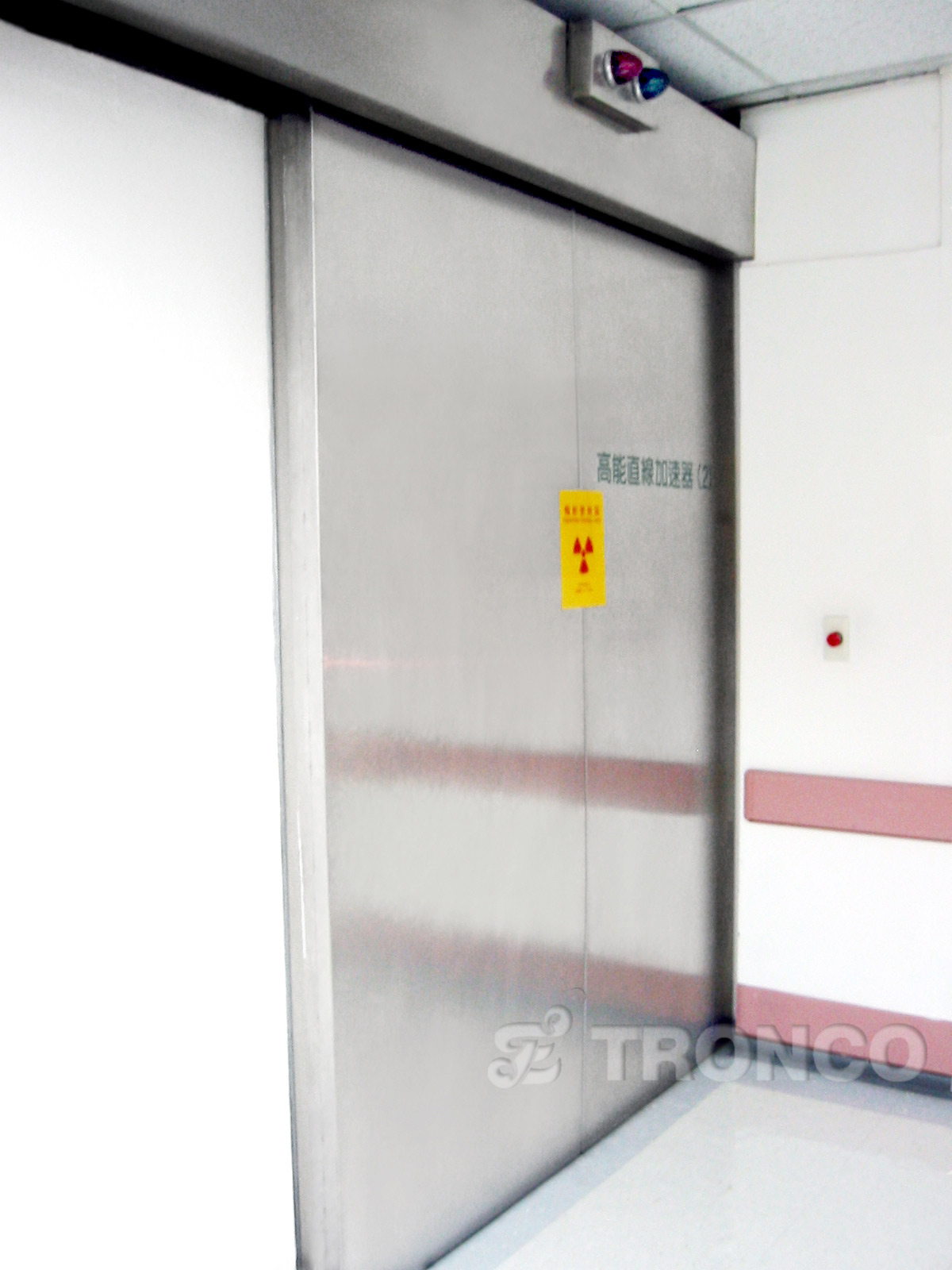

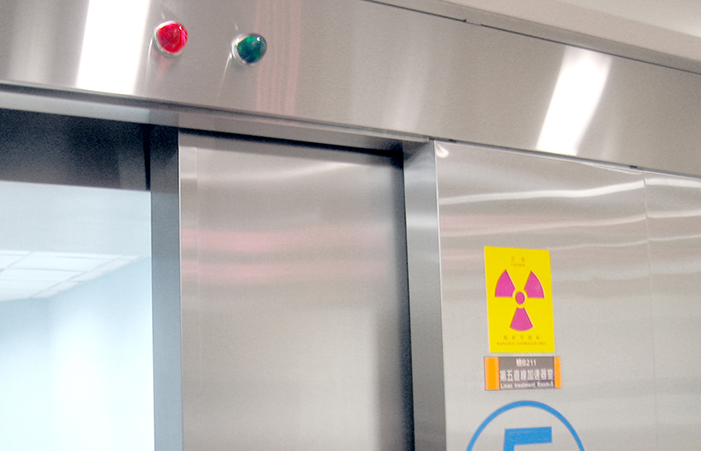

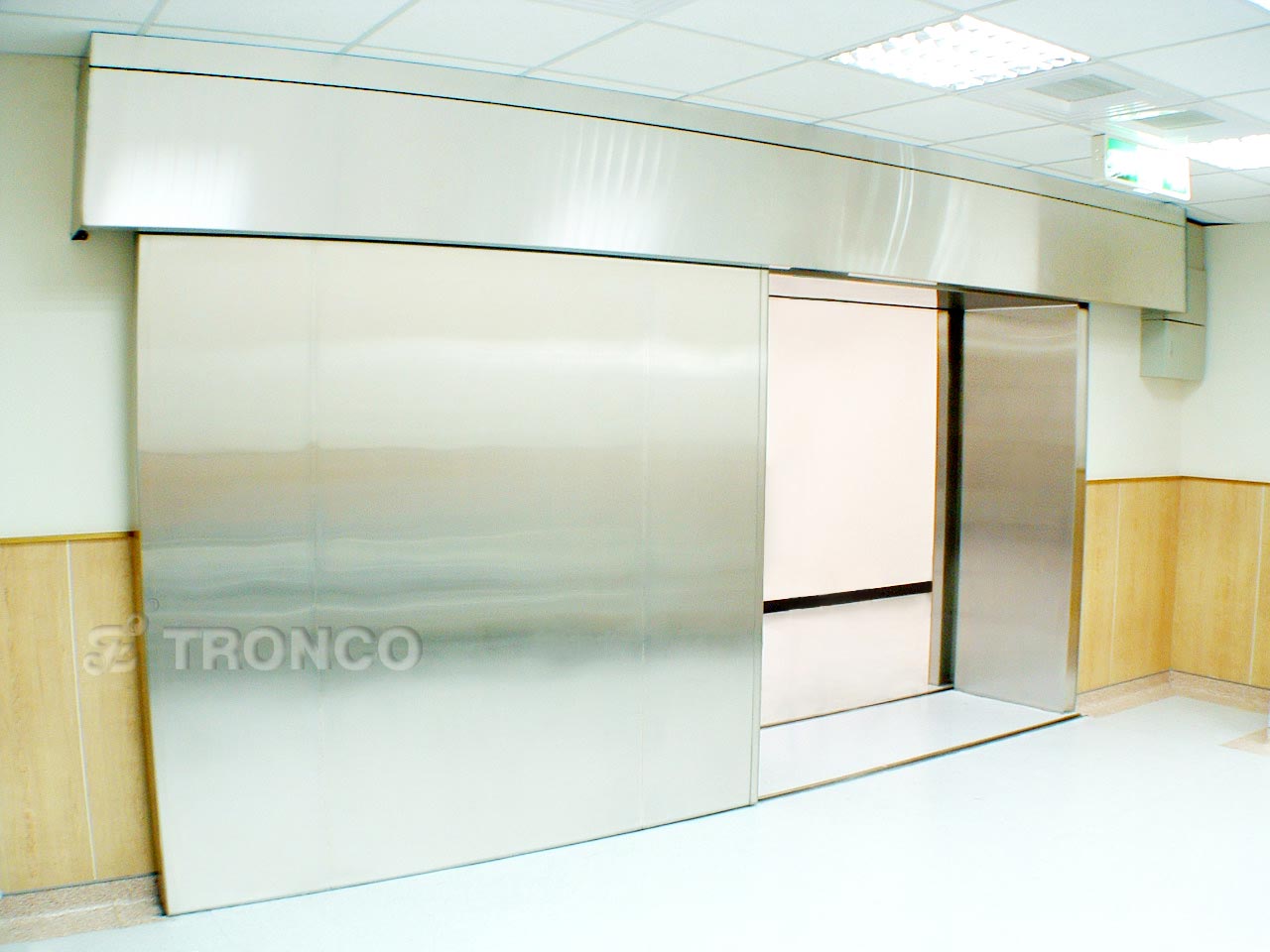

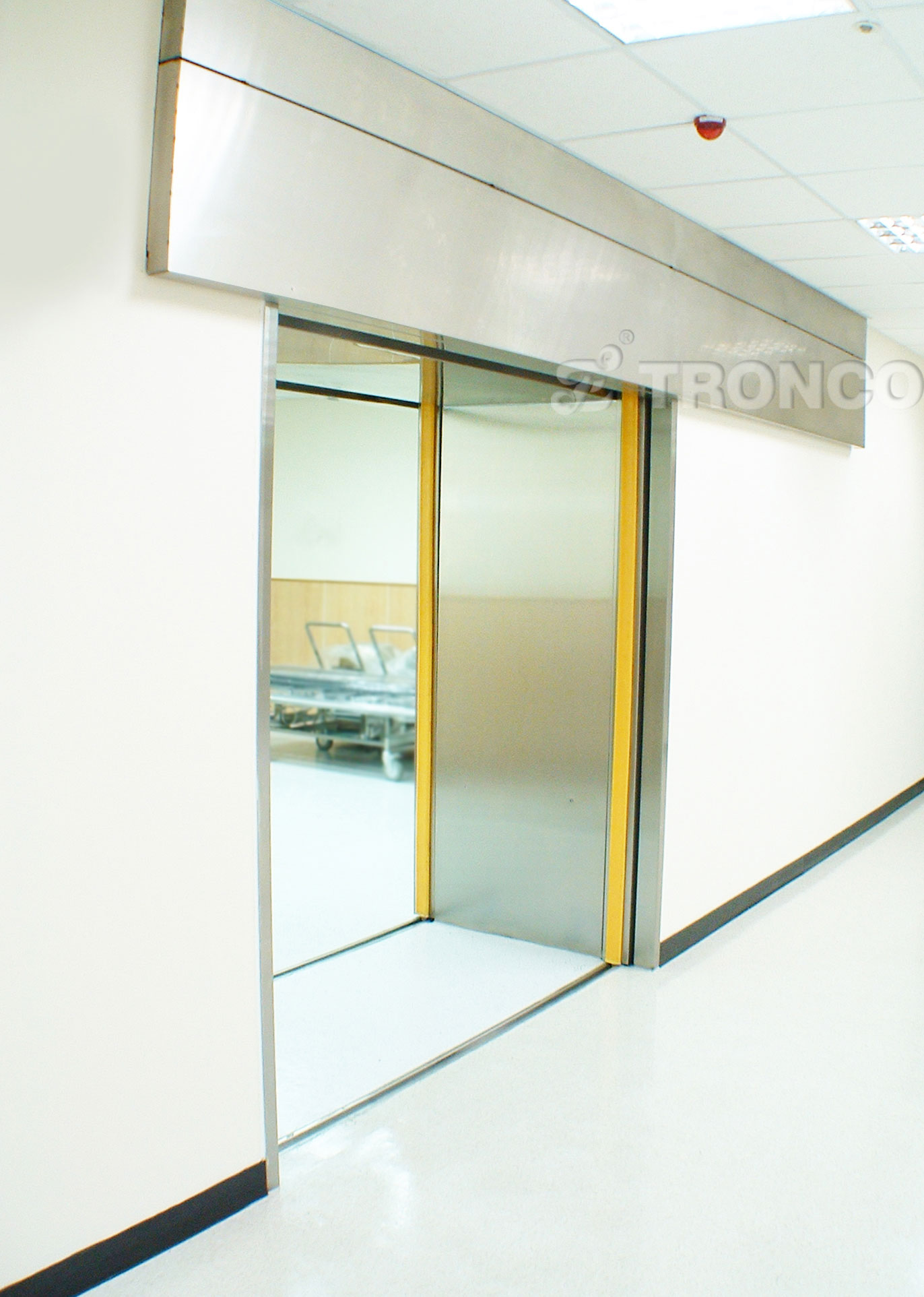

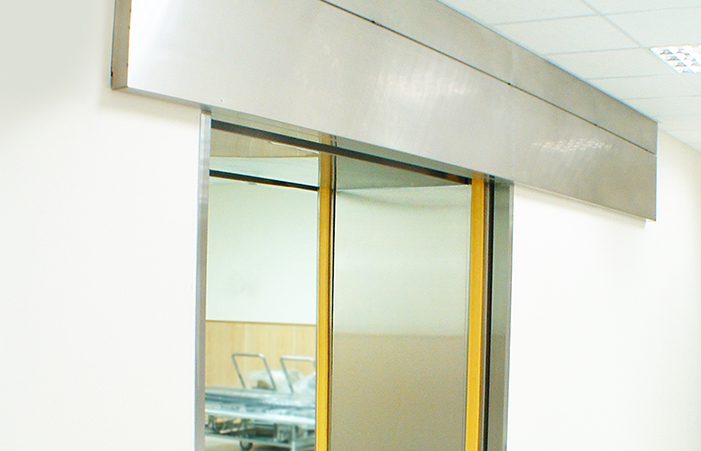

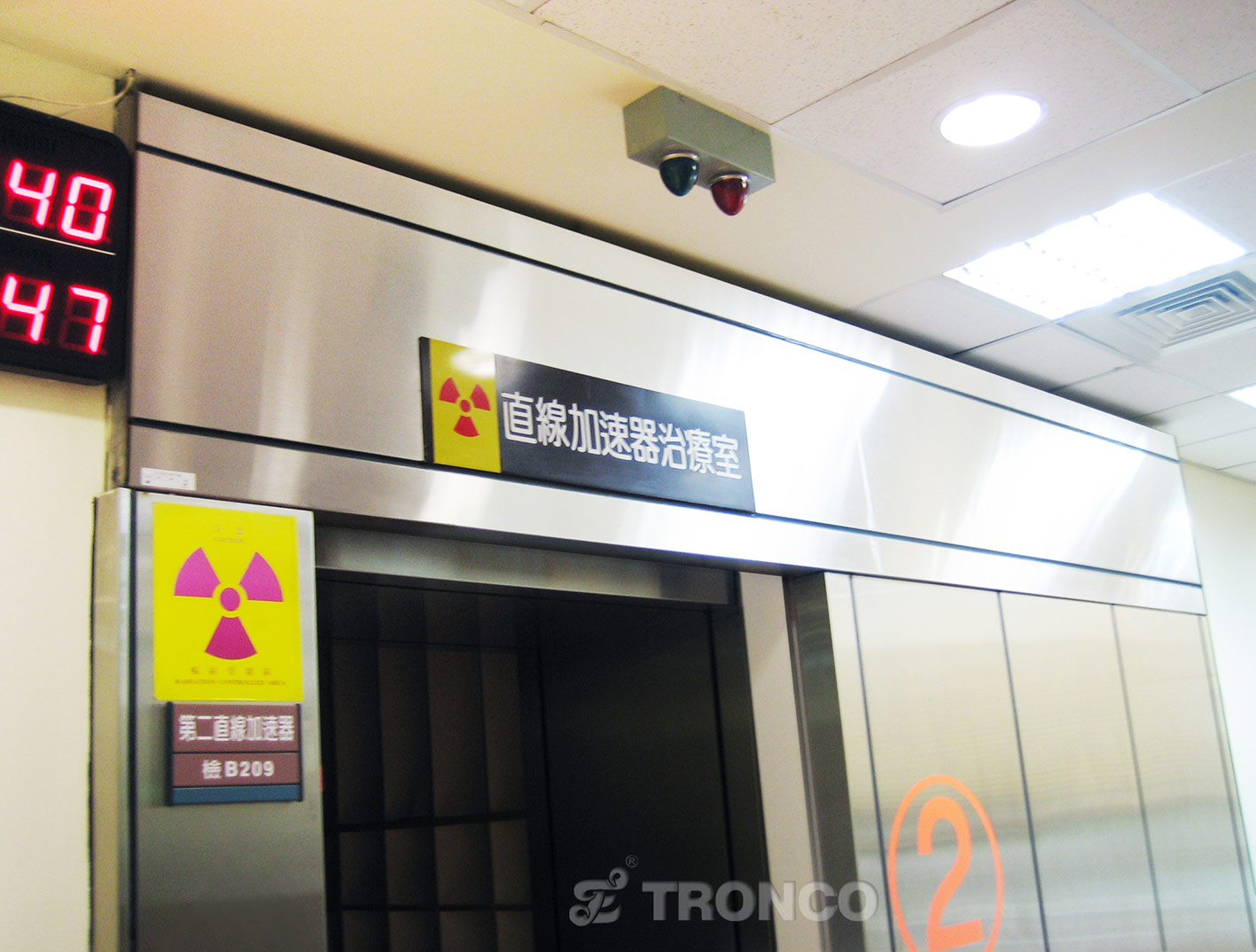

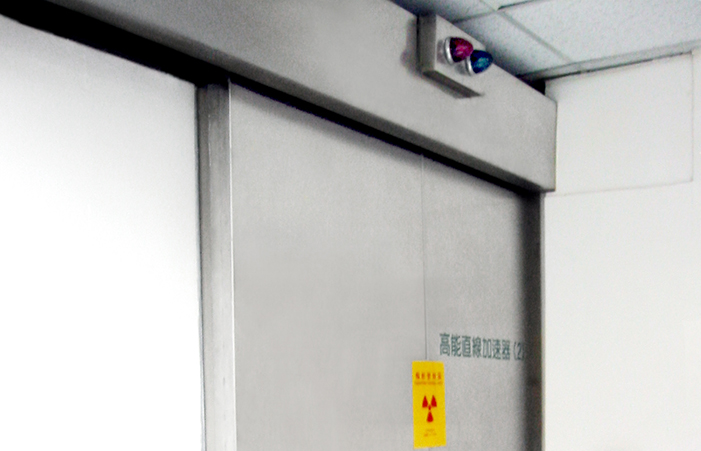

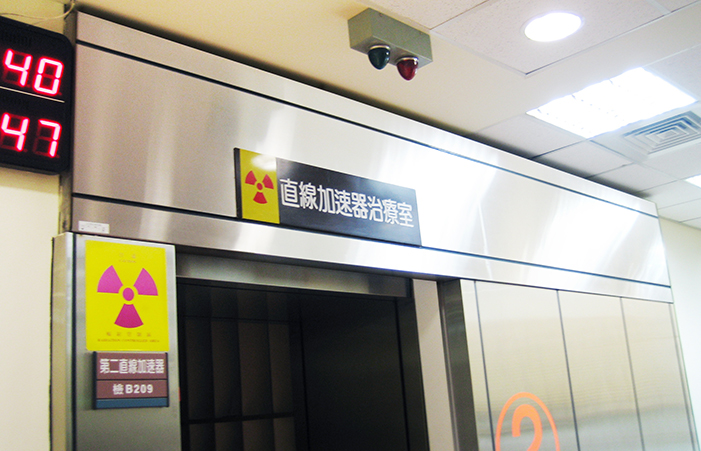

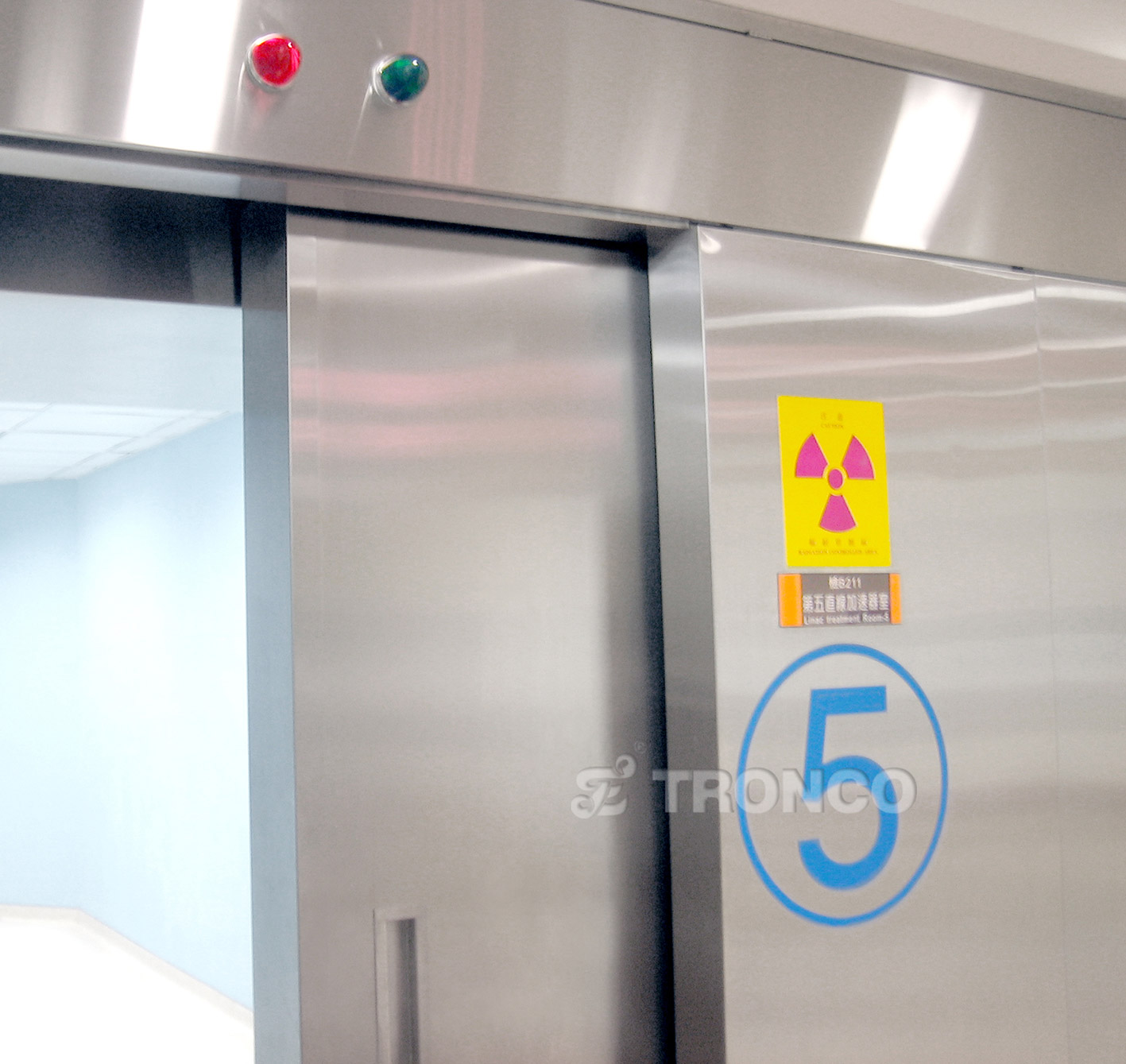

Tonnage automatic sliding door for medical



TRONCO ton horizontal pull automatic door system, the perfect combination of strength and wisdom, and establish professional standards override everyone.

  • HS-L1

    Door Weight

    1-2 Ton

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    200W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

  • HS-H2

    Door Weight

    2-4 Ton

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    300W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

  • HS-H3

    Door Weight

    4-6 Ton

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    400W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

  • HS-H4

    Door Weight

    6-8 Ton

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    550W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

  • HS-H5

    Door Weight

    8-10 Ton

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    700W

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

  • HS-H6

    Door Weight

    Special Weight

    Door Fitting Size

    Dimensioned on demand

    Min.&Max. Door Fitting Size

    Dimensioned on demand

    Tracking

    Depending on demand

    Closing and Opening Speed

    250~450 mm/sec

    Keep Open Time

    0.5sec~60sec

    Power Supply

    AC 220V 50/60 Hz

    Consumption

    Depending on demand

    Output Power

    DC12V/1.5A

    DC24V/1A

    Motor

    Brushless DC Electric Motor

    Chassis Dimension

    Depending on demand

    Ingress Protection

    IP20

    Temp. range

    -20°C~45°C

Video

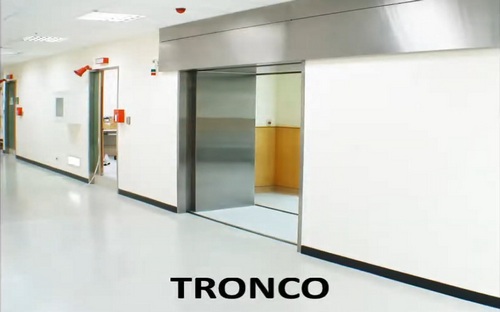

Heavy duty automatic sliding door

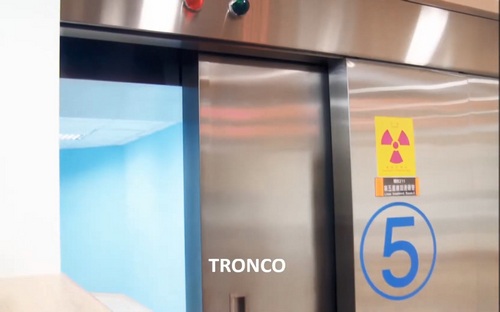

Automatic ton level Sliding Door
