MR-A266

MR-A266




SPECIFICATIONS

  • MR-A266(180W)

    Rated Power (W)

    180W

    Max. Speed (rpm)

    3400RPM

    Rated Torque (kg-cm)

    5.8 kg-cm

    Max. Torque (kg-cm)

    6.7 kg-cm

    Rated Current (A)

    13A

    Max. Current (A)

    15A

    Motor Voltage (V)

    24VDC

    IP Rank

    IP54

    Size

    W74×H74mm



     　← Back Page

  • MR-A266(1000W)

    Rated Power (W)

    1000W

    Max. Speed (rpm)

    3600RPM

    Rated Torque (kg-cm)

    21.8 kg-cm

    Max. Torque (kg-cm)

    27.2 kg-cm

    Rated Current (A)

    8A

    Max. Current (A)

    10A

    Motor Voltage (V)

    110VAC

    IP Rank

    IP54

    Size

    W74×H74mm



     　← Back Page

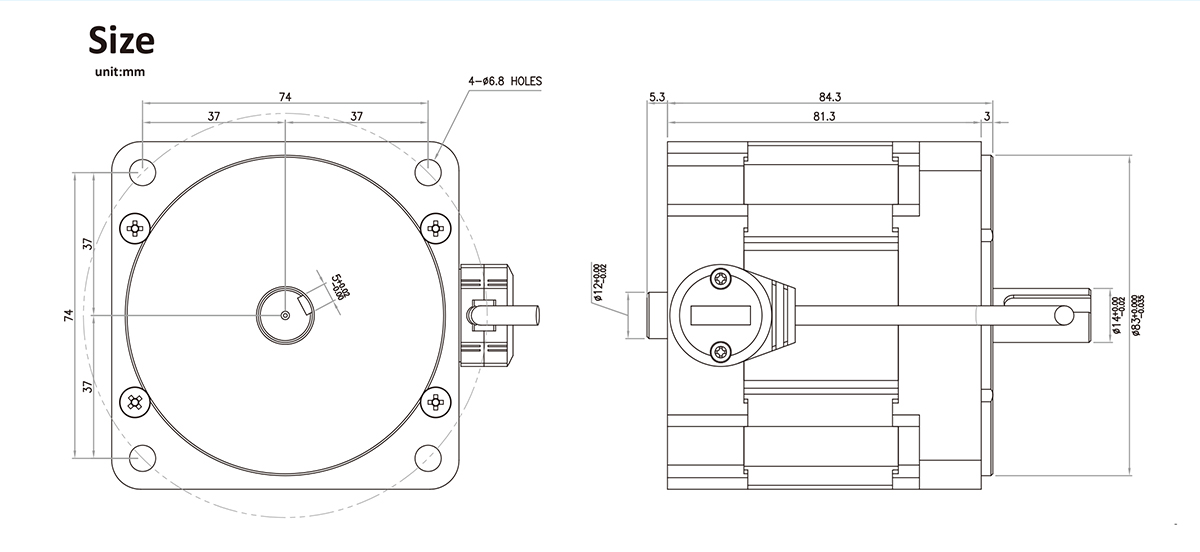

SIZE

VIDEO

INFORMATION

WNAT TO KNOW MORE ABOUT MR-A266 ？

Here is the relevant file of MR-A266 welcome to download it！

MR-A266 Catalog     Download
