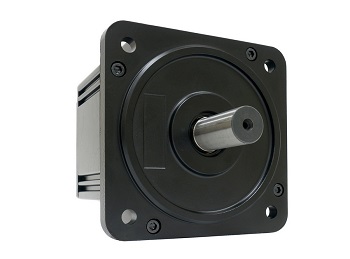

MR-1503

MR-1503




SPECIFICATIONS

  • MR-1503(3000W)

    Rated Power (W)

    3000W

    Max. Speed (rpm)

    3600RPM

    Rated Torque (kg-cm)

    80 kg-cm

    Max. Torque (kg-cm)

    97 kg-cm

    Rated Current (A)

    25A

    Max. Current (A)

    30A

    Motor Voltage (V)

    110VAC

    IP Rank

    IP54

    Size

    W150×H150mm



     　← Back Page

  • MR-1503(1500W)

    Rated Power (W)

    1500W

    Max. Speed (rpm)

    3200RPM

    Rated Torque (kg-cm)

    46 kg-cm

    Max. Torque (kg-cm)

    53 kg-cm

    Rated Current (A)

    13A

    Max. Current (A)

    15A

    Motor Voltage (V)

    110VAC

    IP Rank

    IP54

    Size

    W150×H150mm



     　← Back Page

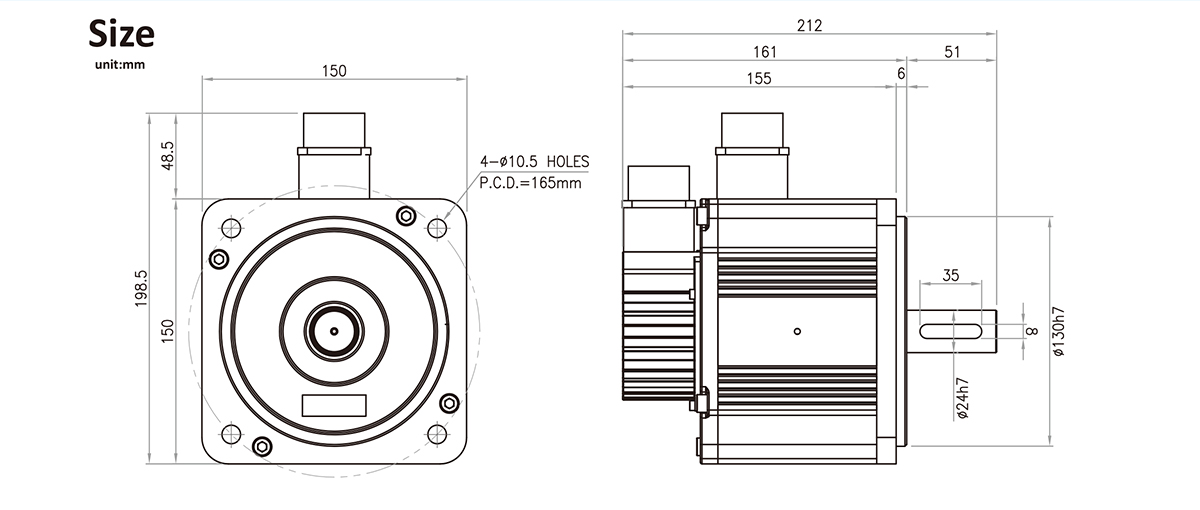

Size
