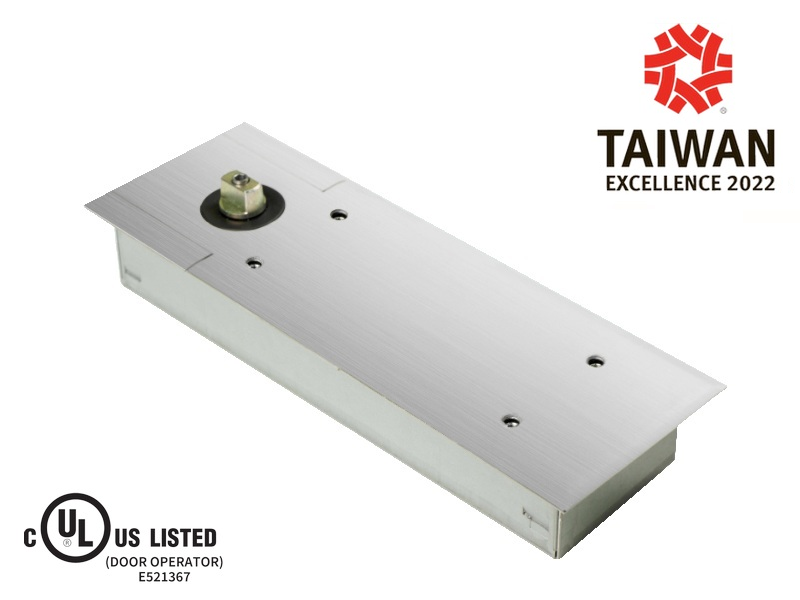

SW30-FL Series
SW30-FL2
SW30-FL2P
SW30-FL3P
- 2022 Taiwan Excellence Award
- Certified by TÜV Germany
- Compliant with UL Product Safety Standards.
- Compliant with EU CE Requirements Safety Standards
-
Door Weight Capacity
150cm / 250kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
90W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)300mm (W)120mm (H)84mm -
Door Weight Capacity
150cm / 250kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
90W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)370mm (W)120mm (H)84mm -
Door Weight Capacity
150cm / 400kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
120W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)480mm (W)130mm (H)100mm
-
SW30-FL2
Door Weight Capacity
150cm / 250kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
90W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)300mm (W)120mm (H)84mm -
SW30-FL2P
Door Weight Capacity
150cm / 250kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
90W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)370mm (W)120mm (H)84mm -
SW30-FL3P
Door Weight Capacity
150cm / 400kg
Opening/Closing Time
2~10 sec at 90° (adjustable)
Input Voltage
AC 100V~240V (50Hz~60Hz)
Power Consumption
120W
Closing Delay Time
1~30 sec (adjustable)
Enclosure Dimensions
(L)480mm (W)130mm (H)100mm
Hidden in the Floor. Smart at the Door.
Where Technology and Architectural Aesthetics Come Together.
Hidden Drive Technology
A New Dimension of Intelligent Door Control
The motorized floor hinge features a concealed floor-mounted design, integrating the drive mechanism into the floor structure for a clean and discreet appearance. The microprocessor-based servo control system provides precise positioning and stable, smooth opening and closing. The door operates quietly and effortlessly, seamlessly blending advanced door control technology with architectural aesthetics.
Sensitive Collision Detection
Designed with a highly expandable system architecture, the SW30-FL Series supports a wide range of peripheral devices, including sensors, push buttons, wireless devices, access control systems, and voice warning devices.From commercial spaces and office buildings to healthcare facilities, industrial sites, and public buildings, the system can be flexibly integrated according to the specific requirements of each application, delivering a safe, intelligent, and convenient entrance control solution.
Wide Range of Peripheral Devices
Designed with a highly expandable system architecture, the SW30-FL Series supports a wide range of peripheral devices, including sensors, push buttons, wireless devices, access control systems, and voice warning devices.From commercial spaces and office buildings to healthcare facilities, industrial sites, and public buildings, the system can be flexibly integrated according to the specific requirements of each application, delivering a safe, intelligent, and convenient entrance control solution.
－ International Certifications & Taiwan Excellence Award －
The system complies with European CE requirements and European automatic door safety standards. It is also certified to UL product safety standards in the United States and supported by TÜV Germany quality management system certification.In recognition of its outstanding design and performance, the SW30-FL Series was honored with the 2022 Taiwan Excellence Award.
Automatic Door Features
Easy Access
Automatic Opening Convenience
Hygiene Management
Helps Prevent Germ Transmission
Energy Efficiency
Reduced Energy Loss
Access Control
Smart & Secure Access
